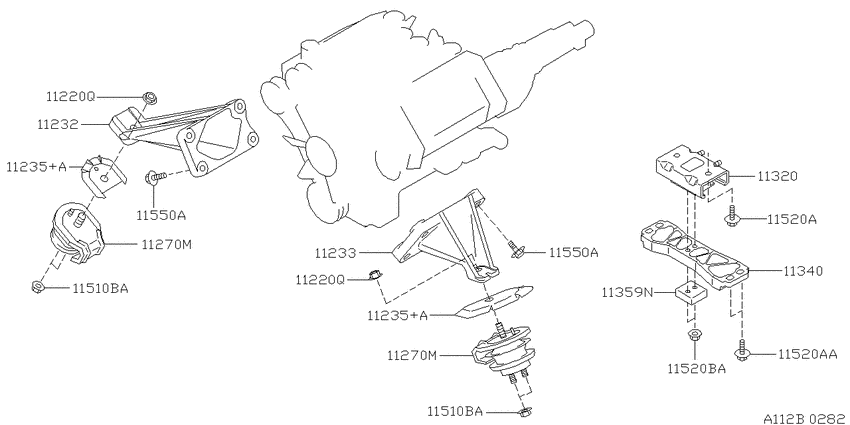

Engine & transmission mounting (1997-09-01 ~ ; (2WD.IRS+2WD.ACT).VH41DE) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- 41TR
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220Q
|
11220Q
01225-00671 NUT9606--01 ~ 9709--01; VH41DE |
01225-00671 |
US $5.42 |
||
|
11220Q
|
11220Q
01225-00671 NUT9606--01 ~ 9709--01; VH41DE |
01225-00671 |
US $5.42 |
||
|
11232
|
11232
11232-6P000 Bracket-Engine Mounting, Rh9606--01 ~ 9709--01; VH41DE |
11232-6P000 |
US $145.44 |
||
|
11233
|
11233
11233-6P000 Bracket-Engine Mounting, Lh9606--01 ~ 9709--01; VH41DE |
11233-6P000 |
US $145.44 |
||
|
11235+A
|
11235+A
11284-4P000 Plate-Heat Shield9606--01 ~ 9709--01; VH41DE |
11284-4P000 |
US $11.23 |
||
|
11235+A
|
11235+A
11284-4P000 Plate-Heat Shield9606--01 ~ 9709--01; VH41DE |
11284-4P000 |
US $11.23 |
||
|
11270M
|
11270M
11220-6P015 Insulator Assy-Engine Mounting, Front9606--01 ~ 9709--01; VH41DE |
11220-6P015 |
US $168.48 |
||
|
11270M
|
11270M
11220-6P015 Insulator Assy-Engine Mounting, Front9606--01 ~ 9709--01; VH41DE |
11220-6P015 |
US $168.48 |
||
|
11320
|
11320
11320-6P010 Insulator-Engine Mounting, Rear9606--01 ~ 9607--01; VH41DE |
11320-6P010 |
US $113.04 |
||
|
11320
|
11320
113206P015 Insulator-Engine Mounting, Rear9607--01 ~ 9709--01; VH41DE |
113206P015 |
US $113.04 |
||
|
11340
|
11340
11331-6P000 Member Assy-Engine Mounting, Rear9606--01 ~ 9709--01; VH41DE |
11331-6P000 |
US $204.48 |
||
|
11359N
|
11359N
11359-6P000 Mass-Engine Mounting, Rear9606--01 ~ 9709--01; VH41DE |
11359-6P000 |
US $64.51 |
||
|
11510BA
|
11510BA
0122500521 NUT9606--01 ~ 9709--01; VH41DE |
0122500521 |
from US $1.11 |
||
|
11510BA
|
11510BA
0122500521 NUT9606--01 ~ 9709--01; VH41DE |
0122500521 |
from US $1.11 |
||
|
11520A
|
11520A
01125-02861 BOLT9606--01 ~ 9709--01; VH41DE |
01125-02861 |
US $4.42 |
||
|
11520A
|
11520A
11298AH000 Bolt0003--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE |
11298AH000 |
US $3.46 |
||
|
11520A
|
11520A
01125-03451 BOLT9606--01 ~ 9709--01; VH41DE |
01125-03451 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-03451 BOLT9606--01 ~ 9709--01; VH41DE |
01125-03451 |
US $3.46 |
||
|
11520BA
|
11520BA
01225-00671 NUT9606--01 ~ 9709--01; VH41DE |
01225-00671 |
US $5.42 |
||
|
11550A
|
11550A
01125-03151 BOLT9606--01 ~ 9709--01; VH41DE |
01125-03151 |
US $3.46 |
||
|
11550A
|
11550A
01125-03151 BOLT9606--01 ~ 9709--01; VH41DE |
01125-03151 |
US $3.46 |
