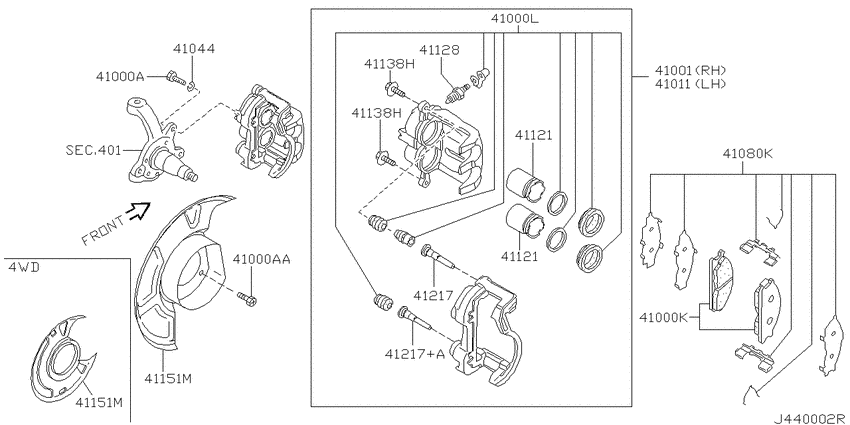

Front brake (1997-09-01 ~ ; VH41DE) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- 41TR
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
41000A
|
41000A
41005-6P010 Bolt9606--01 ~ 9709--01; VH41DE |
41005-6P010 |
US $3.46 |
||
|
41000A
|
41000A
41005AG000 Bolt9911--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE |
41005AG000 |
US $3.46 |
||
|
41000A
|
41000A
0141100131 BOLT9606--01 ~ 9709--01; VH41DE |
0141100131 |
US $1.73 |
||
|
41000AA
|
41000AA
0141100131 BOLT9606--01 ~ 9709--01; VH41DE |
0141100131 |
US $1.73 |
||
|
41000K
|
41000K
AY040-NS051 Pad Kit-Disc Brake9606--01 ~ 9709--01; VH41DE |
AY040-NS051 |
US $151.20 |
||
|
41000K
|
41000K
AY040-NS087 Pad Kit-Disc Brake9908--01 ~ 9912--01; VH41DE |
AY040-NS087 |
US $158.40 |
||
|
41000K
|
41000K
AY040NS093 Pad Kit-Disc Brake9912--01 ~ ; VH41DE |
AY040NS093 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS028 Seal Kit-Disc Brake9606--01 ~ 9709--01; VH41DE |
AY600NS028 |
US $52.13 |
||
|
41001
|
41001
41001-3H000 Caliper Assy-Front Rh, W/o Pads Or Shims9805--01 ~ ; VH41DE |
41001-3H000 |
US $587.64 |
||
|
41001
|
41001
41001-6P000 Caliper Assy-Front Rh, W/o Pads Or Shims9606--01 ~ 9709--01; VH41DE |
41001-6P000 |
US $645.70 |
||
|
41011
|
41011
41011-3H000 Caliper Assy-Front Lh, W/o Pads Or Shims9805--01 ~ ; VH41DE |
41011-3H000 |
US $587.64 |
||
|
41011
|
41011
41011-6P000 Caliper Assy-Front Lh, W/o Pads Or Shims9606--01 ~ 9709--01; VH41DE |
41011-6P000 |
US $645.70 |
||
|
41044
|
41044
41044-6P010 Washer9606--01 ~ 9709--01; VH41DE |
41044-6P010 |
US $3.46 |
||
|
41080K
|
41080K
41080-3H025 Hardware Kit-Front Disc Brake Pad0008--01 ~ ; VH41DE |
41080-3H025 |
US $127.73 |
||
|
41080K
|
41080K
410806P025 Hardware Kit-Front Disc Brake Pad9606--01 ~ 9709--01; VH41DE |
410806P025 |
US $152.64 |
||
|
41121
|
41121
411210W700 Piston-Cylinder9606--01 ~ 9709--01; VH41DE |
411210W700 |
from US $46.51 |
||
|
41121
|
41121
411210W700 Piston-Cylinder9606--01 ~ 9709--01; VH41DE |
411210W700 |
from US $46.51 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
9606--01 ~ 9709--01; VH41DE |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder9606--01 ~ 9709--01; VH41DE |
4112880Z0A |
US $7.35 |
||
|
41138H
|
41138H
411360W700 Pin-Bolt9606--01 ~ 9709--01; VH41DE |
411360W700 |
from US $4.18 |
||
|
41138H
|
41138H
411360W700 Pin-Bolt9606--01 ~ 9709--01; VH41DE |
411360W700 |
from US $4.18 |
||
|
41151M
|
41151M
41150-6P000 Plate-Baffle9606--01 ~ 9709--01; VH41DE; ﾐｷﾞ ﾖｳ |
41150-6P000 |
US $46.66 |
||
|
41151M
|
41151M
41150-AG000 Plate-Baffle9905--01 ~ 9911--01; (2WD.IRS+2WD.ACT).VH41DE; ﾐｷﾞﾖｳ |
41150-AG000 |
US $35.86 |
||
|
41151M
|
41151M
41150-AR000 Plate-Baffle0010--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE; ﾐｷﾞ ﾖｳ |
41150-AR000 |
US $32.83 |
||
|
41151M
|
41151M
41160-6P000 Plate-Baffle9606--01 ~ 9709--01; VH41DE; ﾋﾀﾞﾘ ﾖｳ |
41160-6P000 |
US $46.66 |
||
|
41151M
|
41151M
41160-AG000 Plate-Baffle9905--01 ~ 9911--01; (2WD.IRS+2WD.ACT).VH41DE; ﾋﾀﾞﾘﾖｳ |
41160-AG000 |
US $35.86 |
||
|
41151M
|
41151M
41160-AR000 Plate-Baffle0010--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE; ﾋﾀﾞﾘ ﾖｳ |
41160-AR000 |
US $32.83 |
||
|
41151M
|
41151M
41150-6P000 Plate-Baffle9606--01 ~ 9709--01; VH41DE; ﾐｷﾞ ﾖｳ |
41150-6P000 |
US $46.66 |
||
|
41151M
|
41151M
41150-AG000 Plate-Baffle9905--01 ~ 9911--01; (2WD.IRS+2WD.ACT).VH41DE; ﾐｷﾞﾖｳ |
41150-AG000 |
US $35.86 |
||
|
41151M
|
41151M
41150-AR000 Plate-Baffle0010--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE; ﾐｷﾞ ﾖｳ |
41150-AR000 |
US $32.83 |
||
|
41151M
|
41151M
41160-6P000 Plate-Baffle9606--01 ~ 9709--01; VH41DE; ﾋﾀﾞﾘ ﾖｳ |
41160-6P000 |
US $46.66 |
||
|
41151M
|
41151M
41160-AG000 Plate-Baffle9905--01 ~ 9911--01; (2WD.IRS+2WD.ACT).VH41DE; ﾋﾀﾞﾘﾖｳ |
41160-AG000 |
US $35.86 |
||
|
41151M
|
41151M
41160-AR000 Plate-Baffle0010--01 ~ ; (2WD.IRS+2WD.ACT).VH41DE; ﾋﾀﾞﾘ ﾖｳ |
41160-AR000 |
US $32.83 |
||
|
41217
|
41217
41133-0W700 Pin9606--01 ~ 9709--01; VH41DE |
41133-0W700 |
US $7.63 |
||
|
41217
|
41217
41133AA000 Pin9902--01 ~ ; VH41DE |
41133AA000 |
from US $10.12 |
||
|
41217
|
41217
41134-0W700 Pin9606--01 ~ 9709--01; VH41DE |
41134-0W700 |
US $7.63 |
||
|
41217
|
41217
41134AA000 Pin9902--01 ~ ; VH41DE |
41134AA000 |
from US $8.45 |
||
|
41217+A
|
41217+A
41134-0W700 Pin9606--01 ~ 9709--01; VH41DE |
41134-0W700 |
US $7.63 |
||
|
41217+A
|
41217+A
41134AA000 Pin9902--01 ~ ; VH41DE |
41134AA000 |
from US $8.45 |
||
