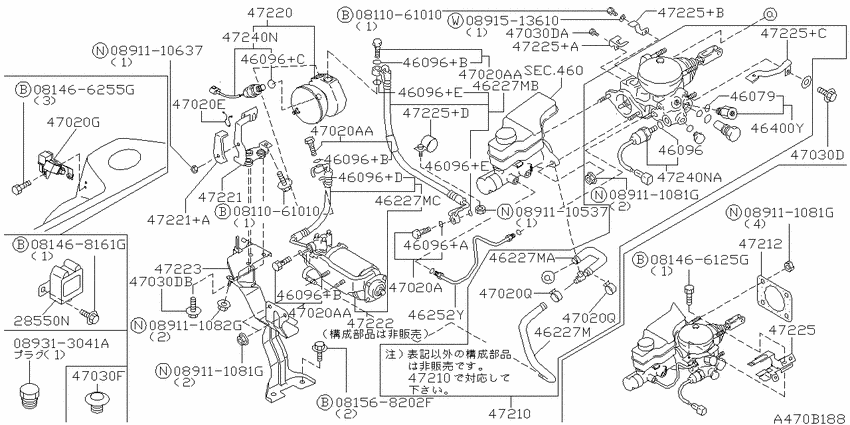

Brake servo & servo control (1996-06-01 ~ 1997-09-01; TCS ﾂｷ; *VQ30DET) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061010
|
0811061010
08110-61010
Bolt-hexagon
|
08110-61010 |
— | ||
|
0811061010
|
0811061010
08110-61010
Bolt-hexagon
|
08110-61010 |
— | ||
|
081466125G
|
081466125G
081466125G
Bolt-hexagon
|
081466125G |
— | ||
|
081466255G
|
081466255G
08146-6255G
Bolt-hexagon
|
08146-6255G |
— | ||
|
081468161G
|
081468161G
081468161G Bolt-hexagon |
081468161G |
US $3.06 |
||
|
081568202F
|
081568202F
081568202F BOLTHEXPP WW |
081568202F |
from US $0.85 |
||
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
28550N
|
28550N
28550-4P010 Control Assy-Time9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
28550-4P010 |
US $68.11 |
||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46079
|
46079
46070-0P020 Seal-O Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46070-0P020 |
US $4.18 |
||
|
46096
|
46096
46096-0P202 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46096-0P202 |
US $3.60 |
||
|
46096
|
46096
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096
|
46096
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096
|
46096
46096-0P202 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46096-0P202 |
US $3.60 |
||
|
46096
|
46096
460960P205 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P205 |
US $3.60 |
||
|
46096
|
46096
460960P205 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P205 |
US $3.60 |
||
|
46096+A
|
46096+A
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096+B
|
46096+B
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096+B
|
46096+B
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096+B
|
46096+B
460960P200 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P200 |
US $3.60 |
||
|
46096+C
|
46096+C
46096-0P202 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46096-0P202 |
US $3.60 |
||
|
46096+D
|
46096+D
460960P205 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P205 |
US $3.60 |
||
|
46096+E
|
46096+E
460960P205 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P205 |
US $3.60 |
||
|
46096+E
|
46096+E
460960P205 Seal O-Ring9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
460960P205 |
US $3.60 |
||
|
46227M
|
46227M
462270P200 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
462270P200 |
US $29.38 |
||
|
46227M
|
46227M
462270P201 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
462270P201 |
US $29.38 |
||
|
46227M
|
46227M
46201-4P210 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46201-4P210 |
US $174.24 |
||
|
46227M
|
46227M
46201-4P211 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46201-4P211 |
US $174.24 |
||
|
46227MA
|
46227MA
462270P201 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
462270P201 |
US $29.38 |
||
|
46227MB
|
46227MB
46201-4P210 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46201-4P210 |
US $174.24 |
||
|
46227MC
|
46227MC
46201-4P211 Hose-Brake Reservoir9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46201-4P211 |
US $174.24 |
||
|
46252Y
|
46252Y
46252-4P000 Tube Assy-Brake9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46252-4P000 |
US $8.64 |
||
|
46400Y
|
46400Y
46400-1P100 Valve Assy-Pressure Control9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46400-1P100 |
US $41.90 |
||
|
47020A
|
47020A
46356-0P200 Bolt9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46356-0P200 |
US $9.94 |
||
|
47020A
|
47020A
46356-0P200 Bolt9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46356-0P200 |
US $9.94 |
||
|
47020AA
|
47020AA
46356-0P200 Bolt9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46356-0P200 |
US $9.94 |
||
|
47020AA
|
47020AA
46356-0P200 Bolt9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46356-0P200 |
US $9.94 |
||
|
47020AA
|
47020AA
46356-0P200 Bolt9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
46356-0P200 |
US $9.94 |
||
|
47020E
|
47020E
24222-0P200 Clip9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24222-0P200 |
US $3.60 |
||
|
47020G
|
47020G
25230-4P000 Relay-Motor9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
25230-4P000 |
US $83.38 |
||
|
47020Q
|
47020Q
16439-0P200 Clamp9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
16439-0P200 |
US $3.60 |
||
|
47020Q
|
47020Q
16439-0P200 Clamp9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
16439-0P200 |
US $3.60 |
||
|
47030D
|
47030D
41645-0P200 Screw9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
41645-0P200 |
US $2.45 |
||
|
47030D
|
47030D
41645-0P201 Screw9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
41645-0P201 |
US $2.45 |
||
|
47030D
|
47030D
41645-0P300 Screw9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
41645-0P300 |
US $2.45 |
||
|
47030DA
|
47030DA
41645-0P201 Screw9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
41645-0P201 |
US $2.45 |
||
|
47030DB
|
47030DB
41645-0P300 Screw9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
41645-0P300 |
US $2.45 |
||
|
47030F
|
47030F
0165801481 PLUG9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
0165801481 |
US $3.18 |
||
|
47210
|
47210
47210-4P000 Booster Assy-Brake9606--01 ~ 9709--01; VQ30DET |
47210-4P000 |
US $1,124.30 |
||
|
47210
|
47210
472104P201 Booster Assy-Brake9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
472104P201 |
US $1,946 |
||
|
47210
|
47210
47210-7P100 Booster Assy-Brake9709--01 ~ ; VQ30DET |
47210-7P100 |
US $1,382.02 |
||
|
47212
|
47212
4721250Y00 Packing-Booster9606--01 ~ ; VQ30DET |
4721250Y00 |
from US $4.92 |
||
|
47220
|
47220
47220-4P202
Accumulator Assy-Brake
9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47220-4P202 |
— | ||
|
47221
|
47221
47221-0P200 Bracket-Accumulator9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47221-0P200 |
US $76.46 |
||
|
47221
|
47221
47221-0P201 Bracket-Accumulator9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47221-0P201 |
US $83.38 |
||
|
47221+A
|
47221+A
47221-0P201 Bracket-Accumulator9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47221-0P201 |
US $83.38 |
||
|
47222
|
47222
472224P200 Motor Assy-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
472224P200 |
US $1,876 |
||
|
47223
|
47223
47223-4P200 Bracket-Motor9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47223-4P200 |
US $195.84 |
||
|
47225
|
47225
47225-1P100 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-1P100 |
US $8.64 |
||
|
47225
|
47225
47225-0P201 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P201 |
US $8.64 |
||
|
47225
|
47225
47225-0P202 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P202 |
US $8.64 |
||
|
47225
|
47225
47225-0P200 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P200 |
US $8.64 |
||
|
47225
|
47225
47225-0P203 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P203 |
US $7.92 |
||
|
47225+A
|
47225+A
47225-0P201 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P201 |
US $8.64 |
||
|
47225+B
|
47225+B
47225-0P202 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P202 |
US $8.64 |
||
|
47225+C
|
47225+C
47225-0P200 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P200 |
US $8.64 |
||
|
47225+D
|
47225+D
47225-0P203 Bracket-Brake Booster9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47225-0P203 |
US $7.92 |
||
|
47240N
|
47240N
47240-4P211 Switch Assy-Hypoid, Warning9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47240-4P211 |
US $275.04 |
||
|
47240N
|
47240N
47240-4P201 Switch Assy-Hypoid, Warning9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47240-4P201 |
US $275.04 |
||
|
47240NA
|
47240NA
47240-4P201 Switch Assy-Hypoid, Warning9606--01 ~ 9809--01; *VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
47240-4P201 |
US $275.04 |
||
