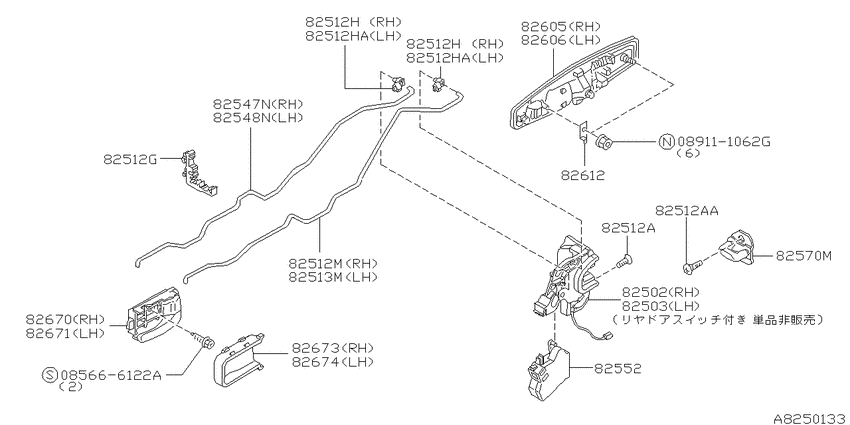

Rear door lock & handle (1996-06-01 ~ 1997-09-01; S) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666122A
|
085666122A
085666122A SCREWTAPPING |
085666122A |
US $0.50 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
82502
|
82502
82502-6P012 Lock Assy-Rear Door, Rh9606--01 ~ 9709--01; S |
82502-6P012 |
US $158.40 |
||
|
82503
|
82503
82503-6P012 Lock Assy-Rear Door, Lh9606--01 ~ 9709--01; S |
82503-6P012 |
US $158.40 |
||
|
82512A
|
82512A
01413-00081 SCREW9606--01 ~ 9709--01; S |
01413-00081 |
US $2.45 |
||
|
82512A
|
82512A
01413-00091 SCREW9906--01 ~ ; S |
01413-00091 |
US $2.91 |
||
|
82512A
|
82512A
0143300151 SCREW9606--01 ~ 9709--01; S |
0143300151 |
US $3.06 |
||
|
82512AA
|
82512AA
0143300151 SCREW9606--01 ~ 9709--01; S |
0143300151 |
US $3.06 |
||
|
82512G
|
82512G
8053401U00 Holder-Rod9709--01 ~ ; S |
8053401U00 |
from US $1.93 |
||
|
82512G
|
82512G
80534-4P000 Holder-Rod9606--01 ~ 9709--01; S |
80534-4P000 |
US $2.45 |
||
|
82512H
|
82512H
80532-85E00 HOLDER-ROD9606--01 ~ 9709--01; S |
80532-85E00 |
US $1.73 |
||
|
82512H
|
82512H
8053385E00
HOLDER-ROD
9606--01 ~ 9709--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
82512H
|
82512H
8053389900 Holder-Rod9606--01 ~ 9709--01; S |
8053389900 |
US $1.82 |
||
|
82512H
|
82512H
80532-85E00 HOLDER-ROD9606--01 ~ 9709--01; S |
80532-85E00 |
US $1.73 |
||
|
82512H
|
82512H
8053385E00
HOLDER-ROD
9606--01 ~ 9709--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
82512H
|
82512H
8053389900 Holder-Rod9606--01 ~ 9709--01; S |
8053389900 |
US $1.82 |
||
|
82512HA
|
82512HA
8053385E00
HOLDER-ROD
9606--01 ~ 9709--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
82512HA
|
82512HA
8053389900 Holder-Rod9606--01 ~ 9709--01; S |
8053389900 |
US $1.82 |
||
|
82512HA
|
82512HA
8053385E00
HOLDER-ROD
9606--01 ~ 9709--01; S |
8053385E00 |
— | ||
| replacement | |||||
|
82512HA
|
82512HA
8053389900 Holder-Rod9606--01 ~ 9709--01; S |
8053389900 |
US $1.82 |
||
|
82512M
|
82512M
825066P000 Rod-Rear Door Inside Handle, Rh9606--01 ~ 9709--01; S |
825066P000 |
US $15.41 |
||
|
82513M
|
82513M
82507-6P000 Rod-Rear Door Inside Handle, Lh9606--01 ~ 9709--01; S |
82507-6P000 |
US $7.63 |
||
|
82547N
|
82547N
825126P000 Rod-Lock Knob, Rh9606--01 ~ 9709--01; S |
825126P000 |
US $15.41 |
||
|
82548N
|
82548N
82513-6P000 Rod-Lock Knob, Lh9606--01 ~ 9709--01; S |
82513-6P000 |
US $15.41 |
||
|
82552
|
82552
82552-5P012 Actuator-Rear Door Lock9606--01 ~ 9702--01; S |
82552-5P012 |
US $131.47 |
||
|
82552
|
82552
825525P013 Actuator-Auto Door Lock, Rear Rh9702--01 ~ 9709--01; S |
825525P013 |
from US $133.35 |
||
|
82570M
|
82570M
80570-5P001 Striker Assy-Front Door Lock9606--01 ~ 9709--01; S |
80570-5P001 |
US $15.26 |
||
| replacement | |||||
|
82570M
|
82570M
805705P00B Striker Assy-Front Door Lock9606--01 ~ 9709--01; S |
805705P00B |
US $17.87 |
||
|
82605
|
82605
82606-3H000 Handle Assy-Rear Door Outside, Rh9809--01 ~ ; S |
82606-3H000 |
US $167.04 |
||
|
82605
|
82605
82606-3H001 Handle Assy-Rear Door Outside, Rh9809--01 ~ ; S |
82606-3H001 |
US $167.04 |
||
|
82605
|
82605
82606-3H002 Handle Assy-Rear Door Outside, Rh9809--01 ~ ; S |
82606-3H002 |
US $167.04 |
||
|
82605
|
82605
82606-3H102 Handle Assy-Rear Door Outside, Rh9809--01 ~ 9911--01; S |
82606-3H102 |
US $167.04 |
||
|
82605
|
82605
82606-6P001 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P001 |
US $167.04 |
||
|
82605
|
82605
826066P002 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
826066P002 |
US $167.04 |
||
|
82605
|
82605
82606-6P003 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P003 |
US $167.04 |
||
|
82605
|
82605
82606-6P004 Handle Assy-Rear Door Outside, Rh9701--01 ~ 9709--01; *S; <10TH ｱﾆﾊﾞ-ｻﾘ-> |
82606-6P004 |
US $167.04 |
||
|
82605
|
82605
82606-6P008 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P008 |
US $167.04 |
||
|
82605
|
82605
82606-6P009 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P009 |
US $167.04 |
||
|
82605
|
82605
82606-6P010 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P010 |
US $167.04 |
||
|
82605
|
82605
82606-6P015 Handle Assy-Rear Door Outside, Rh9606--01 ~ 9709--01; S |
82606-6P015 |
US $167.04 |
||
|
82605
|
82605
82606-6P019 Handle Assy-Rear Door Outside, Rh9809--01 ~ ; S |
82606-6P019 |
US $167.04 |
||
|
82605
|
82605
82606-6P023 Handle Assy-Rear Door Outside, Rh9809--01 ~ ; S |
82606-6P023 |
US $167.04 |
||
|
82605
|
82605
82606-6P063 Handle Assy-Rear Door Outside, Rh9911--01 ~ ; S |
82606-6P063 |
US $167.04 |
||
|
82605
|
82605
82606-6P102 Handle Assy-Rear Door Outside, Rh9701--01 ~ 9709--01; *S; <10TH ｱﾆﾊﾞ-ｻﾘ-> |
82606-6P102 |
US $167.04 |
||
|
82605
|
82605
82606-7P112 Handle Assy-Rear Door Outside, Rh9911--01 ~ ; S |
82606-7P112 |
US $167.04 |
||
|
82606
|
82606
82607-3H000 Handle Assy-Rear Door Outside, Lh9809--01 ~ ; S |
82607-3H000 |
US $167.04 |
||
|
82606
|
82606
82607-3H001 Handle Assy-Rear Door Outside, Lh9809--01 ~ ; S |
82607-3H001 |
US $167.04 |
||
|
82606
|
82606
82607-3H002 Handle Assy-Rear Door Outside, Lh9809--01 ~ ; S |
82607-3H002 |
US $167.04 |
||
|
82606
|
82606
82607-3H102 Handle Assy-Rear Door Outside, Lh9809--01 ~ 9911--01; S |
82607-3H102 |
US $167.04 |
||
|
82606
|
82606
82607-6P001 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P001 |
US $167.04 |
||
|
82606
|
82606
82607-6P002 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P002 |
US $167.04 |
||
|
82606
|
82606
82607-6P003 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P003 |
US $167.04 |
||
|
82606
|
82606
82607-6P004 Handle Assy-Rear Door Outside, Lh9701--01 ~ 9709--01; *S; <10TH ｱﾆﾊﾞ-ｻﾘ-> |
82607-6P004 |
US $167.04 |
||
|
82606
|
82606
82607-6P008 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P008 |
US $167.04 |
||
|
82606
|
82606
82607-6P009 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P009 |
US $167.04 |
||
|
82606
|
82606
82607-6P010 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P010 |
US $167.04 |
||
|
82606
|
82606
82607-6P015 Handle Assy-Rear Door Outside, Lh9606--01 ~ 9709--01; S |
82607-6P015 |
US $167.04 |
||
|
82606
|
82606
82607-6P019 Handle Assy-Rear Door Outside, Lh9809--01 ~ ; S |
82607-6P019 |
US $167.04 |
||
|
82606
|
82606
82607-6P023 Handle Assy-Rear Door Outside, Lh9809--01 ~ ; S |
82607-6P023 |
US $167.04 |
||
|
82606
|
82606
82607-6P063 Handle Assy-Rear Door Outside, Lh9911--01 ~ ; S |
82607-6P063 |
US $167.04 |
||
|
82606
|
82606
82607-6P102 Handle Assy-Rear Door Outside, Lh9701--01 ~ 9709--01; *S; <10TH ｱﾆﾊﾞ-ｻﾘ-> |
82607-6P102 |
US $167.04 |
||
|
82606
|
82606
82607-7P112 Handle Assy-Rear Door Outside, Lh9911--01 ~ ; S |
82607-7P112 |
US $167.04 |
||
|
82612
|
82612
80612-6P000 Washer Outside Handle9606--01 ~ 9709--01; S |
80612-6P000 |
US $7.63 |
||
|
82670
|
82670
80670-0V710 Handle Assy-Door Inside, Rh0007--01 ~ ; S |
80670-0V710 |
US $41.04 |
||
|
82670
|
82670
80670-6P000 Handle Assy-Door Inside, Rh9606--01 ~ 9709--01; S |
80670-6P000 |
US $37.01 |
||
|
82670
|
82670
80670-6P010 Handle Assy-Door Inside, Rh9709--01 ~ 0007--01; S |
80670-6P010 |
US $40.61 |
||
|
82671
|
82671
80671-0V710 Handle Assy-Door Inside, Lh0007--01 ~ ; S |
80671-0V710 |
US $41.04 |
||
|
82671
|
82671
80671-6P000 Handle Assy-Rear Door Inside, Lh9606--01 ~ 9709--01; S |
80671-6P000 |
US $37.01 |
||
|
82671
|
82671
80671-6P010 Handle Assy-Door Inside, Lh9709--01 ~ 0007--01; S |
80671-6P010 |
US $40.61 |
||
|
82673
|
82673
80684-6P000 Escutcheon-Inside Handle, Rh9606--01 ~ 9709--01; S |
80684-6P000 |
US $12.10 |
||
|
82673
|
82673
80684-6P002 Escutcheon-Inside Handle, Rh9606--01 ~ 9709--01; S |
80684-6P002 |
US $11.23 |
||
|
82673
|
82673
80684-6P003 Escutcheon-Inside Handle, Rh9606--01 ~ 9709--01; S |
80684-6P003 |
US $12.10 |
||
|
82673
|
82673
80684-6P004 Escutcheon-Inside Handle, Rh9911--01 ~ ; S |
80684-6P004 |
US $14.26 |
||
|
82674
|
82674
80685-6P000 Escutcheon-Inside Handle, Lh9606--01 ~ 9709--01; S |
80685-6P000 |
US $12.10 |
||
|
82674
|
82674
80685-6P002 Escutcheon-Inside Handle, Lh9606--01 ~ 9709--01; S |
80685-6P002 |
US $11.23 |
||
|
82674
|
82674
80685-6P003 Escutcheon-Inside Handle, Lh9606--01 ~ 9709--01; S |
80685-6P003 |
US $12.10 |
||
|
82674
|
82674
80685-6P004 Escutcheon-Inside Handle, Lh9911--01 ~ ; S |
80685-6P004 |
US $14.26 |
||
