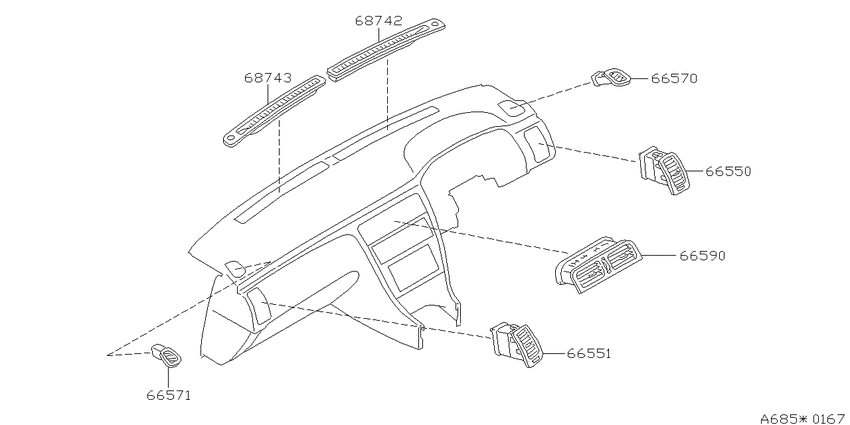

Ventilator (1997-09-01 ~ ; S) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66550
|
66550
68760-6P000 Ventilator Assy-Side9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68760-6P000 |
US $100.51 |
||
|
66550
|
66550
68760-6P002 Ventilator Assy-Side9809--01 ~ ; S |
68760-6P002 |
US $100.51 |
||
|
66550
|
66550
68760-6P003 Ventilator Assy-Side9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68760-6P003 |
US $100.51 |
||
|
66550
|
66550
68760-6P004 Ventilator Assy-Side9911--01 ~ ; 5S.2WD.IRS.41LV +S.(2WD.ACT+4WD.IRS) +S.(30L+30LV+41L) |
68760-6P004 |
US $100.51 |
||
|
66551
|
66551
68761-6P000
Ventilator Assy-Side
9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68761-6P000 |
— | ||
|
66551
|
66551
68761-6P002 Ventilator Assy-Side9809--01 ~ ; S |
68761-6P002 |
US $100.51 |
||
|
66551
|
66551
68761-6P003
Ventilator Assy-Side
9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68761-6P003 |
— | ||
|
66551
|
66551
68761-6P004 Ventilator Assy-Side9911--01 ~ ; 5S.2WD.IRS.41LV +S.(2WD.ACT+4WD.IRS) +S.(30L+30LV+41L) |
68761-6P004 |
US $100.51 |
||
|
66570
|
66570
68740-6P000 Grille-Side Defroster, Rh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68740-6P000 |
US $23.18 |
||
|
66570
|
66570
68740-6P002 Grille-Side Defroster, Rh9809--01 ~ ; S |
68740-6P002 |
US $23.18 |
||
|
66570
|
66570
68740-6P003 Grille-Side Defroster, Rh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68740-6P003 |
US $23.18 |
||
|
66571
|
66571
68741-6P000 Grille-Side Defroster, Lh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68741-6P000 |
US $23.18 |
||
|
66571
|
66571
68741-6P002 Grille-Side Defroster, Lh9809--01 ~ ; S |
68741-6P002 |
US $23.18 |
||
|
66571
|
66571
68741-6P003 Grille-Side Defroster, Lh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68741-6P003 |
US $23.18 |
||
|
66590
|
66590
687506P010 Ventilator Assy-Center9606--01 ~ 9709--01; S |
687506P010 |
US $253.44 |
||
|
66590
|
66590
687506P013 Ventilator Assy-Center9911--01 ~ ; 4*S.2WD.IRS.41LV +*S.(2WD.ACT+4WD.IRS) +*S.(30L+30LV) |
687506P013 |
US $253.44 |
||
|
68742
|
68742
68742-4P000 Grille-Front Defroster, Rh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68742-4P000 |
US $39.74 |
||
|
68742
|
68742
68742-4P002 Grille-Front Defroster, Rh9809--01 ~ ; S |
68742-4P002 |
US $39.74 |
||
|
68742
|
68742
68742-4P003 Grille-Front Defroster, Rh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68742-4P003 |
US $39.74 |
||
|
68742
|
68742
68742-6P104 Grille-Front Defroster, Rh9911--01 ~ ; S |
68742-6P104 |
US $46.66 |
||
|
68743
|
68743
68743-4P000 Grille-Front Defroster, Lh9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68743-4P000 |
US $39.74 |
||
|
68743
|
68743
68743-4P002 Grille-Front Defroster, Lh9809--01 ~ ; S |
68743-4P002 |
US $39.74 |
||
|
68743
|
68743
68743-4P003
Grille-Front Defroster, Lh
9606--01 ~ 9709--01; S.ACT +S.(30L+30LV+41L+41LV) |
68743-4P003 |
— | ||
|
68743
|
68743
68743-6P104 Grille-Front Defroster, Lh9911--01 ~ ; S |
68743-6P104 |
US $46.66 |
