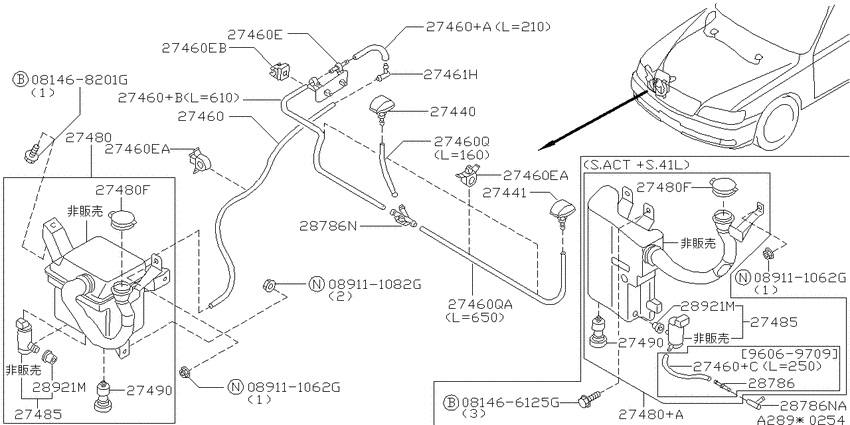

Windshield washer (1996-06-01 ~ 1997-09-01; S) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466125G
|
081466125G
081466125G
Bolt-hexagon
|
081466125G |
— | ||
|
081468201G
|
081468201G
08146-8201G
Bolt-hexagon
|
08146-8201G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
27440
|
27440
28930-3H001 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-3H001 |
US $28.66 |
||
|
27440
|
27440
28930-3H003 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-3H003 |
US $25.78 |
||
|
27440
|
27440
28930-3H004 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-3H004 |
US $28.66 |
||
|
27440
|
27440
28930-3H010 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-3H010 |
US $28.66 |
||
|
27440
|
27440
28930-6P000 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P000 |
US $28.66 |
||
|
27440
|
27440
289306P001 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
289306P001 |
US $21.60 |
||
|
27440
|
27440
28930-6P002 Nozzle Assy-Washer, No 19701--01 ~ 9709--01; S |
28930-6P002 |
US $25.78 |
||
|
27440
|
27440
28930-6P003 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P003 |
US $28.66 |
||
|
27440
|
27440
28930-6P005 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P005 |
US $25.78 |
||
|
27440
|
27440
28930-6P006 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P006 |
US $28.66 |
||
|
27440
|
27440
28930-6P007 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-6P007 |
US $21.89 |
||
|
27440
|
27440
28930-6P009 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P009 |
US $28.66 |
||
|
27440
|
27440
28930-6P011 Nozzle Assy-Washer, No 19809--01 ~ ; S |
28930-6P011 |
US $28.66 |
||
|
27440
|
27440
28930-6P014 Nozzle Assy-Washer, No 19606--01 ~ 9709--01; S |
28930-6P014 |
US $25.78 |
||
|
27440
|
27440
28930-6P015 Nozzle Assy-Washer, No 19701--01 ~ 9709--01; S |
28930-6P015 |
US $28.66 |
||
|
27441
|
27441
28931-3H001 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-3H001 |
US $25.78 |
||
|
27441
|
27441
28931-3H003 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-3H003 |
US $28.66 |
||
|
27441
|
27441
28931-3H004 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-3H004 |
US $28.66 |
||
|
27441
|
27441
28931-3H010 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-3H010 |
US $28.66 |
||
|
27441
|
27441
28931-6P000 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P000 |
US $25.78 |
||
|
27441
|
27441
28931-6P001 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P001 |
US $21.60 |
||
|
27441
|
27441
28931-6P002 Nozzle Assy-Washer, No 29701--01 ~ 9709--01; S |
28931-6P002 |
US $25.78 |
||
|
27441
|
27441
28931-6P003 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P003 |
US $28.66 |
||
|
27441
|
27441
28931-6P005 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P005 |
US $28.66 |
||
|
27441
|
27441
28931-6P006 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P006 |
US $25.78 |
||
|
27441
|
27441
28931-6P007 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-6P007 |
US $21.89 |
||
|
27441
|
27441
28931-6P009 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P009 |
US $28.66 |
||
|
27441
|
27441
28931-6P011 Nozzle Assy-Washer, No 29809--01 ~ ; S |
28931-6P011 |
US $28.66 |
||
|
27441
|
27441
28931-6P014 Nozzle Assy-Washer, No 29606--01 ~ 9709--01; S |
28931-6P014 |
US $28.66 |
||
|
27441
|
27441
28931-6P015 Nozzle Assy-Washer, No 29701--01 ~ 9709--01; S |
28931-6P015 |
US $28.66 |
||
|
27460
|
27460
28940-6P020
Hose-Washer
9606--01 ~ 9709--01; S.VQ30DET +S.(41LV+41TR); L=1460S/#B8940-89910 |
28940-6P020 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
28940-4P001
Hose-Washer
9606--01 ~ 9709--01; S.VQ30DET +S.(41LV+41TR); L=610 S/#B8940-89910 |
28940-4P001 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
28945-4P000 Clip9606--01 ~ 9709--01; S |
28945-4P000 |
US $2.02 |
||
|
27460
|
27460
2894530Y10 Clip9606--01 ~ 9709--01; S |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
2894510Y00 Clip9606--01 ~ 9709--01; S |
2894510Y00 |
from US $0.72 |
||
|
27460
|
27460
28940-15U00
Hose-Washer
9606--01 ~ 9709--01; S; L=160 S/#8940-89910 |
28940-15U00 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
28940-4P010
Hose-Washer
9606--01 ~ 9709--01; S; L=650 S/#B8940-89910 |
28940-4P010 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460+A
|
27460+A
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460+B
|
27460+B
28940-4P001
Hose-Washer
9606--01 ~ 9709--01; S.VQ30DET +S.(41LV+41TR); L=610 S/#B8940-89910 |
28940-4P001 |
— | ||
|
27460+B
|
27460+B
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460+B
|
27460+B
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460+C
|
27460+C
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460+C
|
27460+C
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460E
|
27460E
28945-4P000 Clip9606--01 ~ 9709--01; S |
28945-4P000 |
US $2.02 |
||
|
27460E
|
27460E
2894530Y10 Clip9606--01 ~ 9709--01; S |
2894530Y10 |
US $4.30 |
||
|
27460E
|
27460E
2894510Y00 Clip9606--01 ~ 9709--01; S |
2894510Y00 |
from US $0.72 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9606--01 ~ 9709--01; S |
2894530Y10 |
US $4.30 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9606--01 ~ 9709--01; S |
2894530Y10 |
US $4.30 |
||
|
27460EB
|
27460EB
2894510Y00 Clip9606--01 ~ 9709--01; S |
2894510Y00 |
from US $0.72 |
||
|
27460Q
|
27460Q
28940-15U00
Hose-Washer
9606--01 ~ 9709--01; S; L=160 S/#8940-89910 |
28940-15U00 |
— | ||
|
27460Q
|
27460Q
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460Q
|
27460Q
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460Q
|
27460Q
28940-4P010
Hose-Washer
9606--01 ~ 9709--01; S; L=650 S/#B8940-89910 |
28940-4P010 |
— | ||
|
27460Q
|
27460Q
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460Q
|
27460Q
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460QA
|
27460QA
28940-4P010
Hose-Washer
9606--01 ~ 9709--01; S; L=650 S/#B8940-89910 |
28940-4P010 |
— | ||
|
27460QA
|
27460QA
B8940-89910
Hose-Washer
9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460QA
|
27460QA
B746189910 Hose-Washer9606--01 ~ 9709--01; S; L=10000 ｶﾂﾄ ｼﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27461H
|
27461H
28937V6000 Connector-Hose9606--01 ~ 9709--01; S; Lｶﾞﾀ |
28937V6000 |
US $0.97 |
||
|
27480
|
27480
28910-6P300 Tank Assy-Windshield Washer9606--01 ~ 9709--01; S.VQ30DET +S.(41LV+41TR) |
28910-6P300 |
US $269.28 |
||
|
27480
|
27480
2891362J00
Cap-Windshield Washer Tank
9606--01 ~ 9709--01; S |
2891362J00 |
— | ||
| replacement | |||||
|
27480
|
27480
28913-JX00A Cap-Windshield Washer Tank9606--01 ~ 9709--01; S |
28913-JX00A |
from US $1.48 |
||
|
27480F
|
27480F
2891362J00
Cap-Windshield Washer Tank
9606--01 ~ 9709--01; S |
2891362J00 |
— | ||
| replacement | |||||
|
27480F
|
27480F
28913-JX00A Cap-Windshield Washer Tank9606--01 ~ 9709--01; S |
28913-JX00A |
from US $1.48 |
||
|
27480F
|
27480F
2891362J00
Cap-Windshield Washer Tank
9606--01 ~ 9709--01; S |
2891362J00 |
— | ||
| replacement | |||||
|
27480F
|
27480F
28913-JX00A Cap-Windshield Washer Tank9606--01 ~ 9709--01; S |
28913-JX00A |
from US $1.48 |
||
|
27485
|
27485
2892050Y00 Pump Assy-Washer9606--01 ~ 9709--01; S |
2892050Y00 |
from US $26.76 |
||
|
27485
|
27485
27485-6P000 Motor & Fan Assy-Airpulifier9606--01 ~ 9709--01; *S.(30L+41L); ﾊｲﾔ- ｼﾖｳ |
27485-6P000 |
US $92.59 |
||
|
27485
|
27485
2892050Y00 Pump Assy-Washer9606--01 ~ 9709--01; S |
2892050Y00 |
from US $26.76 |
||
|
27485
|
27485
27485-6P000 Motor & Fan Assy-Airpulifier9606--01 ~ 9709--01; *S.(30L+41L); ﾊｲﾔ- ｼﾖｳ |
27485-6P000 |
US $92.59 |
||
|
27490
|
27490
28911-V5000 Sensor Assy-Water9606--01 ~ 9709--01; S |
28911-V5000 |
US $41.33 |
||
|
27490
|
27490
28911-V5000 Sensor Assy-Water9606--01 ~ 9709--01; S |
28911-V5000 |
US $41.33 |
||
|
28786
|
28786
2893717V00 Connector-Hose9606--01 ~ 9709--01; S; Yｶﾞﾀ |
2893717V00 |
from US $5.27 |
||
|
28786N
|
28786N
2893717V00 Connector-Hose9606--01 ~ 9709--01; S; Yｶﾞﾀ |
2893717V00 |
from US $5.27 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9606--01 ~ 9709--01; S |
2892150Y00 |
US $4.57 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9606--01 ~ 9709--01; S |
2892150Y00 |
US $4.57 |
||
