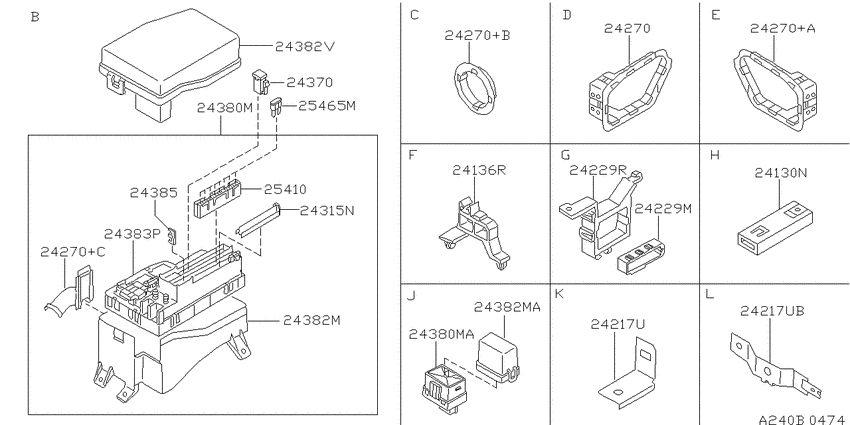

Wiring (1996-06-01 ~ ; &エンジン ルーム フィッティング(1); S.VQ30DET) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24130N
|
24130N
24335C9900 Diode9606--01 ~ 9709--01; S.VQ30DET |
24335C9900 |
US $17.60 |
||
|
24130N
|
24130N
24335C9900 Diode9606--01 ~ 9709--01; S.VQ30DET |
24335C9900 |
US $17.60 |
||
|
24136R
|
24136R
243464P000 Bracket-Connector9606--01 ~ 9709--01; S.VQ30DET |
243464P000 |
US $4.61 |
||
|
24217U
|
24217U
24239-4P200 Bracket-Harness Clip9606--01 ~ ; S.VQ30DET |
24239-4P200 |
US $17.71 |
||
|
24217U
|
24217U
24239-4P115 Bracket-Harness Clip9606--01 ~ ; S.VQ30DET |
24239-4P115 |
US $17.71 |
||
|
24217U
|
24217U
24239-4P110 Bracket-Harness Clip9606--01 ~ ; S.VQ30DET |
24239-4P110 |
US $17.71 |
||
|
24217U
|
24217U
24239-4P165 Bracket-Harness Clip9606--01 ~ ; S.VQ30DET |
24239-4P165 |
US $19.30 |
||
| replacement | |||||
|
24217U
|
24217U
24239-4P17A
Bracket-harness clip
9606--01 ~ ; S.VQ30DET |
24239-4P17A |
— | ||
|
24217UB
|
24217UB
24239-4P110 Bracket-Harness Clip9606--01 ~ ; S.VQ30DET |
24239-4P110 |
US $17.71 |
||
|
24229M
|
24229M
24354-4P000 Bracket-Junction9809--01 ~ ; S.VQ30DET |
24354-4P000 |
US $32.40 |
||
|
24229R
|
24229R
24356-4P011 Bracket-Junction9606--01 ~ ; S.VQ30DET |
24356-4P011 |
US $9.65 |
||
|
24270
|
24270
24282-4P000 Protector-Harness9606--01 ~ ; S.VQ30DET |
24282-4P000 |
US $7.92 |
||
|
24270
|
24270
24282-4P001 Protector-Harness9606--01 ~ ; S.VQ30DET |
24282-4P001 |
US $7.92 |
||
|
24270
|
24270
24282-4P010 Protector-Harness9606--01 ~ 9809--01; S.VQ30DET |
24282-4P010 |
US $8.06 |
||
|
24270
|
24270
24299-4P000 Protector-Harness9606--01 ~ 9709--01; S.VQ30DET |
24299-4P000 |
US $8.06 |
||
|
24270
|
24270
24282-4P002 Protector-Harness9606--01 ~ ; S.VQ30DET |
24282-4P002 |
US $12.82 |
||
|
24270+A
|
24270+A
24282-4P001 Protector-Harness9606--01 ~ ; S.VQ30DET |
24282-4P001 |
US $7.92 |
||
|
24270+B
|
24270+B
24282-4P010 Protector-Harness9606--01 ~ 9809--01; S.VQ30DET |
24282-4P010 |
US $8.06 |
||
|
24270+C
|
24270+C
24299-4P000 Protector-Harness9606--01 ~ 9709--01; S.VQ30DET |
24299-4P000 |
US $8.06 |
||
|
24315N
|
24315N
24315-4P000 Retainer-Fuse Block9606--01 ~ 9709--01; S.VQ30DET |
24315-4P000 |
US $4.61 |
||
|
24370
|
24370
24370-C9910 Connector Assy-Fusible Link9606--01 ~ 9709--01; S.VQ30DET; 30A |
24370-C9910 |
US $13.10 |
||
|
24370
|
24370
24370C9911 Connector Assy-Fusible Link9911--01 ~ ; S.VQ30DET; 30A |
24370C9911 |
from US $13.10 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link9606--01 ~ 9709--01; S.VQ30DET; 40A |
24370-C9920 |
US $13.10 |
||
|
24370
|
24370
24370C9921 Connector Assy-Fusible Link9911--01 ~ ; S.VQ30DET; 40A |
24370C9921 |
from US $13.40 |
||
|
24370
|
24370
24370C9980 Connector Assy-Fusible Link9606--01 ~ 9709--01; S.VQ30DET; 80A |
24370C9980 |
from US $14.29 |
||
|
24370
|
24370
2437079917 Connector Assy-Fusible Link9606--01 ~ 9709--01; S.VQ30DET; 120A |
2437079917 |
US $13.10 |
||
|
24380M
|
24380M
24380-4P000 Box Assy-Relay9606--01 ~ ; S.VQ30DET |
24380-4P000 |
US $181.44 |
||
|
24380M
|
24380M
25236-64U00 Box Assy-Relay9606--01 ~ 9709--01; S.VQ30DET; ﾜｲﾊﾟ-ﾘﾚ- ﾖｳ |
25236-64U00 |
US $35.71 |
||
|
24380M
|
24380M
24380-4P200 Box Assy-Relay9606--01 ~ ; S.VQ30DET |
24380-4P200 |
US $49.39 |
||
|
24380MA
|
24380MA
25236-64U00 Box Assy-Relay9606--01 ~ 9709--01; S.VQ30DET; ﾜｲﾊﾟ-ﾘﾚ- ﾖｳ |
25236-64U00 |
US $35.71 |
||
|
24382M
|
24382M
24372-4P000 Cover-Relay Box9606--01 ~ ; S.VQ30DET |
24372-4P000 |
US $17.57 |
||
|
24382M
|
24382M
24382-64U21 Cover-Relay Box9606--01 ~ 9911--01; S.VQ30DET; ﾜｲﾊﾟ-ﾘﾚ- ﾖｳ |
24382-64U21 |
US $16.50 |
||
|
24382MA
|
24382MA
24382-64U21 Cover-Relay Box9606--01 ~ 9911--01; S.VQ30DET; ﾜｲﾊﾟ-ﾘﾚ- ﾖｳ |
24382-64U21 |
US $16.50 |
||
|
24382V
|
24382V
24382-3H100 Cover-Relay Box9809--01 ~ ; S.VQ30DET |
24382-3H100 |
US $29.66 |
||
|
24382V
|
24382V
24382-6P000 Cover-Relay Box9606--01 ~ 9709--01; S.VQ30DET |
24382-6P000 |
US $29.66 |
||
|
24382V
|
24382V
24382-7P100 Cover-Relay Box9709--01 ~ 9809--01; S.VQ30DET |
24382-7P100 |
US $29.66 |
||
|
24382V
|
24382V
24382-4P200 Cover-Relay Box9606--01 ~ ; S.VQ30DET |
24382-4P200 |
US $19.01 |
||
|
24383P
|
24383P
24383-4P000 Housing-Relay Box9606--01 ~ ; S.VQ30DET |
24383-4P000 |
US $19.15 |
||
|
24385
|
24385
24385-4P000 Retainer-Fusible Link Holder9606--01 ~ 9709--01; S.VQ30DET |
24385-4P000 |
US $5.76 |
||
|
25410
|
25410
24311-4P000 Block Assy-Fuse9606--01 ~ 9709--01; S.VQ30DET |
24311-4P000 |
US $104.98 |
||
|
25410
|
25410
2432179900 Puller-Fuse9606--01 ~ 9709--01; S.VQ30DET |
2432179900 |
US $3.46 |
||
|
25465M
|
25465M
24319C9907 Fuse9606--01 ~ 9709--01; S.VQ30DET; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9910 Fuse9606--01 ~ 9709--01; S.VQ30DET; 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse9606--01 ~ 9709--01; S.VQ30DET; 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse9809--01 ~ 9911--01; S.VQ30DET; 20A |
24319C9920 |
from US $0.86 |
||
