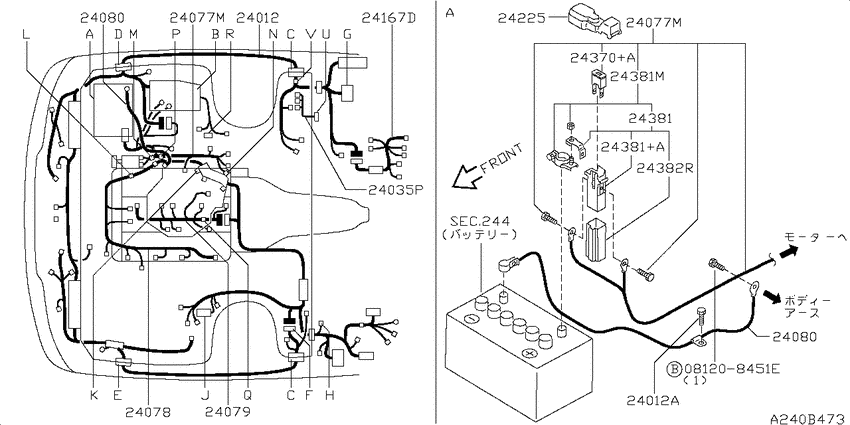

Wiring (1996-06-01 ~ ; エンジン ルーム; S.VQ30DET) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
24012
|
24012
24012-3H200 Harness Assy-Engine Room9809--01 ~ ; S.(30L+30T+30TR) |
24012-3H200 |
US $1,652 |
||
|
24012
|
24012
24012-3H202 Harness Assy-Engine Room9809--01 ~ 9911--01; *S.(30L+30T+30TR); ﾄﾗｸｼﾖﾝｺﾝﾄﾛｰﾙ+ABS ｼﾖｳ |
24012-3H202 |
US $1,652 |
||
|
24012
|
24012
24012-3H206 Harness Assy-Engine Room9809--01 ~ 9911--01; *S.(30L+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24012-3H206 |
US $1,652 |
||
|
24012
|
24012
24012-3H207 Harness Assy-Engine Room9809--01 ~ 9911--01; *S.(30L+30TR); 'ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ+ABS ｼﾖｳ +ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24012-3H207 |
US $1,652 |
||
|
24012
|
24012
24012-6P500 Harness Assy-Engine Room9606--01 ~ 9709--01; S.(30L+30T+30TR) |
24012-6P500 |
US $1,652 |
||
|
24012
|
24012
24012-6P502 Harness Assy-Engine Room9606--01 ~ 9709--01; *S.(30L+30T+30TR); ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24012-6P502 |
US $1,652 |
||
|
24012
|
24012
24012-6P506 Harness Assy-Engine Room9606--01 ~ 9709--01; *S.(30L+30TR); ｳﾃｷ ｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24012-6P506 |
US $1,652 |
||
|
24012
|
24012
24012-6P507 Harness Assy-Engine Room9606--01 ~ 9709--01; *S.(30L+30TR); !ｳﾃｷ ｶﾝﾁｼｷﾜｲﾊﾟ-+ ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24012-6P507 |
US $1,652 |
||
|
24012
|
24012
24012-7P260 Harness Assy-Engine Room9709--01 ~ 9809--01; S.(30L+30T+30TR) |
24012-7P260 |
US $1,652 |
||
|
24012
|
24012
24012-7P262 Harness Assy-Engine Room9709--01 ~ 9809--01; *S.(30L+30T+30TR); ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24012-7P262 |
US $1,652 |
||
|
24012
|
24012
24012-7P266 Harness Assy-Engine Room9709--01 ~ 9809--01; *S.(30L+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟｰ ｼﾖｳ |
24012-7P266 |
US $1,652 |
||
|
24012
|
24012
24012-7P267 Harness Assy-Engine Room9709--01 ~ 9809--01; *S.(30L+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ-+ ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24012-7P267 |
US $1,652 |
||
|
24012
|
24012
0145600411 SCREW9606--01 ~ 9911--01; S.VQ30DET |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600031 SCREW9606--01 ~ 9911--01; S.VQ30DET |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
01281-00601
GROMMET-SCREW
9606--01 ~ 9709--01; S.VQ30DET |
01281-00601 |
— | ||
| replacement | |||||
|
24012
|
24012
0128101231 GROMMET-SCREW9606--01 ~ 9709--01; S.VQ30DET |
0128101231 |
US $4.42 |
||
|
24012A
|
24012A
0145600411 SCREW9606--01 ~ 9911--01; S.VQ30DET |
0145600411 |
US $1.67 |
||
|
24035P
|
24035P
24035-6P000 Harness-Relay9606--01 ~ 9809--01; S.VQ30DET |
24035-6P000 |
US $43.92 |
||
|
24035P
|
24035P
24035-6P001 Harness-Relay9606--01 ~ 9809--01; *S.VQ30DET; ｶﾝﾚｲﾁ ｼﾖｳ |
24035-6P001 |
US $43.78 |
||
|
24077M
|
24077M
24077-3H200 Harness Assy-Engine9809--01 ~ ; S.VQ30DET |
24077-3H200 |
US $797.21 |
||
|
24077M
|
24077M
24077-4P200 Harness Assy-Engine9606--01 ~ 9809--01; S.VQ30DET |
24077-4P200 |
US $674.02 |
||
|
24077M
|
24077M
24077-3H200 Harness Assy-Engine9809--01 ~ ; S.VQ30DET |
24077-3H200 |
US $797.21 |
||
|
24077M
|
24077M
24077-4P200 Harness Assy-Engine9606--01 ~ 9809--01; S.VQ30DET |
24077-4P200 |
US $674.02 |
||
|
24078
|
24078
24011-3H201 Harness Assy-Egi9809--01 ~ 0010--01; S.VQ30DET |
24011-3H201 |
US $1,568 |
||
|
24078
|
24078
24011-3H202 Harness Assy-Egi9809--01 ~ 9911--01; *S.(30L+30LV+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24011-3H202 |
US $1,568 |
||
|
24078
|
24078
24011-3H203 Harness Assy-Egi9809--01 ~ 9911--01; *S.VQ30DET; ﾄﾗｸｼﾖﾝｺﾝﾄﾛｰﾙ+ABS ｼﾖｳ |
24011-3H203 |
US $1,568 |
||
|
24078
|
24078
24011-3H204 Harness Assy-Egi9809--01 ~ 9911--01; *S.(30L+30LV+30TR); 'ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ+ﾄﾗ ｸｼﾖﾝｺﾝﾄﾛ-ﾙ+ABS ｼﾖｳ |
24011-3H204 |
US $1,568 |
||
|
24078
|
24078
24011-3H209 Harness Assy-Egi0010--01 ~ ; S.VQ30DET |
24011-3H209 |
US $1,568 |
||
|
24078
|
24078
24011-3H212 Harness Assy-Egi0010--01 ~ ; *S.(30L+30LV+30TR) |
24011-3H212 |
US $1,568 |
||
|
24078
|
24078
24011-3H213 Harness Assy-Egi0010--01 ~ ; *S.VQ30DET |
24011-3H213 |
US $1,568 |
||
|
24078
|
24078
24011-3H214 Harness Assy-Egi0010--01 ~ ; *S.(30L+30LV+30TR) |
24011-3H214 |
US $1,568 |
||
|
24078
|
24078
24011-6P501 Harness Assy-Egi9606--01 ~ 9709--01; S.(30L+30LV+30TR) |
24011-6P501 |
US $1,568 |
||
|
24078
|
24078
24011-6P502 Harness Assy-Egi9606--01 ~ 9709--01; *S.(30L+30LV+30TR); ｳﾃｷ ｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24011-6P502 |
US $1,568 |
||
|
24078
|
24078
24011-6P503 Harness Assy-Egi9606--01 ~ 9709--01; *S.VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24011-6P503 |
US $1,568 |
||
|
24078
|
24078
24011-6P504 Harness Assy-Egi9606--01 ~ 9709--01; *S.(30L+30LV+30TR); !ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ+ ｳﾃｷ ｶﾝﾁｼｷﾜｲﾊﾟ- ｼﾖｳ |
24011-6P504 |
US $1,568 |
||
|
24078
|
24078
24011-7P201 Harness Assy-Egi9709--01 ~ 9809--01; S.VQ30DET |
24011-7P201 |
US $1,568 |
||
|
24078
|
24078
24011-7P202 Harness Assy-Egi9709--01 ~ 9809--01; *S.(30L+30LV+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟｰ ｼﾖｳ |
24011-7P202 |
US $1,568 |
||
|
24078
|
24078
24011-7P203 Harness Assy-Egi9709--01 ~ 9809--01; *S.VQ30DET; ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24011-7P203 |
US $1,568 |
||
|
24078
|
24078
24011-7P204 Harness Assy-Egi9709--01 ~ 9809--01; *S.(30L+30LV+30TR); ｳﾃｷｶﾝﾁｼｷﾜｲﾊﾟ-+ ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ ｼﾖｳ |
24011-7P204 |
US $1,568 |
||
|
24079
|
24079
240794P100 Harness Assy-Egi Sub9606--01 ~ ; S.VQ30DET |
240794P100 |
US $216 |
||
|
24080
|
24080
240804P100 Cable Assy-Battery Earth9606--01 ~ ; S.VQ30DET |
240804P100 |
US $60.19 |
||
|
24080
|
24080
0122100381 NUT9606--01 ~ 9911--01; S.VQ30DET |
0122100381 |
from US $5.85 |
||
|
24080
|
24080
240804P100 Cable Assy-Battery Earth9606--01 ~ ; S.VQ30DET |
240804P100 |
US $60.19 |
||
|
24080
|
24080
0122100381 NUT9606--01 ~ 9911--01; S.VQ30DET |
0122100381 |
from US $5.85 |
||
|
24225
|
24225
243604P000 Cap-Terminal9606--01 ~ ; S.VQ30DET |
243604P000 |
US $8.73 |
||
|
24370+A
|
24370+A
2437079917 Connector Assy-Fusible Link9606--01 ~ 9709--01; S.VQ30DET; 120A |
2437079917 |
US $13.10 |
||
|
24381
|
24381
24381-4P400 Housing-Fusible Link Holder9606--01 ~ 9709--01; S.VQ30DET |
24381-4P400 |
US $32.98 |
||
|
24381
|
24381
24381-4P001 Housing-Fusible Link Holder9606--01 ~ 9709--01; S.VQ30DET |
24381-4P001 |
US $22.61 |
||
|
24381
|
24381
243804P410 Holder-Fusible Link9606--01 ~ ; S.VQ30DET |
243804P410 |
US $54.43 |
||
|
24381+A
|
24381+A
24381-4P001 Housing-Fusible Link Holder9606--01 ~ 9709--01; S.VQ30DET |
24381-4P001 |
US $22.61 |
||
|
24381M
|
24381M
243804P410 Holder-Fusible Link9606--01 ~ ; S.VQ30DET |
243804P410 |
US $54.43 |
||
|
24382R
|
24382R
24382-4P010 Cover-Fusible Link Holder9606--01 ~ 9709--01; S.VQ30DET |
24382-4P010 |
US $15.84 |
||
|
