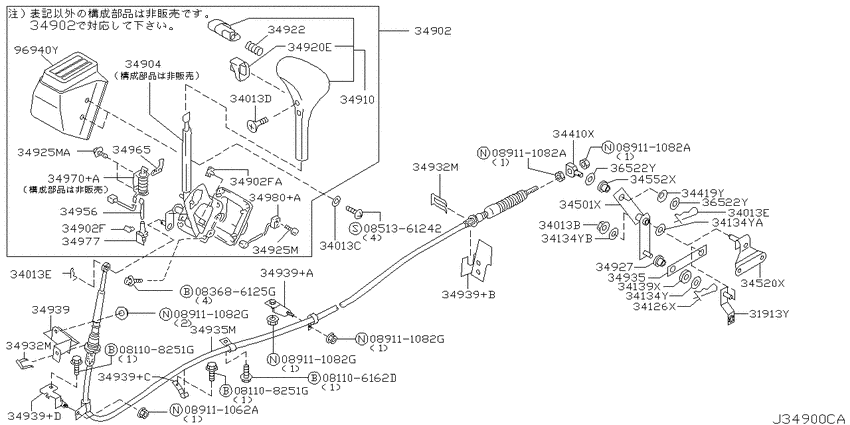

Auto transmission control device (2004-10-01 ~ 2007-08-01; 4M50T.AT/6F) Diagram Nissan CIVILIAN
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- 4M50T
- transmission
- AT/6F
- grade
- DX
- body
- B
- COOLER
- CC
- wheelbase
- SB/AS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106162D
|
081106162D
08110-6162D
Bolt-hexagon
|
08110-6162D |
— | ||
|
081108251G
|
081108251G
08110-8251G
Bolt-hexagon
|
08110-8251G |
— | ||
|
081108251G
|
081108251G
08110-8251G
Bolt-hexagon
|
08110-8251G |
— | ||
|
083686125G
|
083686125G
08368-6125G ｽｸﾘﾕ- |
08368-6125G |
US $2.21 |
||
|
0851361242
|
0851361242
08513-61242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61242 |
— | ||
|
089111062A
|
089111062A
08911-1062A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-1062A |
— | ||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
31913Y
|
31913Y
31913-WK900 Lever-Select Range0410--01 ~ 0602--01; 4M50T.AT/6F |
31913-WK900 |
US $17.71 |
||
|
31913Y
|
31913Y
31913WK90A Lever-Select Range0602--01 ~ 0708--01; 4M50T.AT/6F |
31913WK90A |
US $17.71 |
||
|
34013B
|
34013B
34199-WK900 Nut0410--01 ~ 0708--01; 4M50T.AT/6F |
34199-WK900 |
US $1.73 |
||
|
34013C
|
34013C
76998-01N00 Washer-Plain0410--01 ~ 0708--01; 4M50T.AT/6F |
76998-01N00 |
US $1.73 |
||
|
34013D
|
34013D
0141300051 SCREW0410--01 ~ 0708--01; 4M50T.AT/6F |
0141300051 |
from US $0.37 |
||
|
34013E
|
34013E
0153200022 PIN0410--01 ~ 0708--01; 4M50T.AT/6F |
0153200022 |
US $1.73 |
||
|
34013E
|
34013E
0153200022 PIN0410--01 ~ 0708--01; 4M50T.AT/6F |
0153200022 |
US $1.73 |
||
|
34126X
|
34126X
34126-WK900 Pin-Lock0410--01 ~ 0708--01; 4M50T.AT/6F |
34126-WK900 |
US $1.58 |
||
|
34134Y
|
34134Y
34134-WK900 Washer-Special0410--01 ~ 0708--01; 4M50T.AT/6F |
34134-WK900 |
US $2.45 |
||
|
34134Y
|
34134Y
34134-WK901 Washer-Special0410--01 ~ 0708--01; 4M50T.AT/6F |
34134-WK901 |
US $2.45 |
||
|
34134Y
|
34134Y
34134-WK902 Washer-Special0410--01 ~ 0708--01; 4M50T.AT/6F |
34134-WK902 |
US $2.45 |
||
|
34134YA
|
34134YA
34134-WK901 Washer-Special0410--01 ~ 0708--01; 4M50T.AT/6F |
34134-WK901 |
US $2.45 |
||
|
34134YB
|
34134YB
34134-WK902 Washer-Special0410--01 ~ 0708--01; 4M50T.AT/6F |
34134-WK902 |
US $2.45 |
||
|
34139X
|
34139X
34139-WK900 Bush-Control Rod0410--01 ~ 0708--01; 4M50T.AT/6F |
34139-WK900 |
US $4.18 |
||
|
34410X
|
34410X
34410-B5000 Trunnion-Shift Rod0410--01 ~ 0602--01; 4M50T.AT/6F |
34410-B5000 |
US $3.46 |
||
|
34410X
|
34410X
34410-V5100 Trunnion-Rod0602--01 ~ 0708--01; 4M50T.AT/6F |
34410-V5100 |
US $4.03 |
||
|
34419Y
|
34419Y
34419-04100
Washer-Lock
0410--01 ~ 0708--01; 4M50T.AT/6F |
34419-04100 |
— | ||
| replacement | |||||
|
34419Y
|
34419Y
344190410A Washer0410--01 ~ 0708--01; 4M50T.AT/6F |
344190410A |
US $2.91 |
||
|
34501X
|
34501X
34501-WK600 Shaft Assy-Cross0410--01 ~ 0708--01; 4M50T.AT/6F |
34501-WK600 |
US $69.98 |
||
|
34520X
|
34520X
34520-WK900 Bracket-Cross Shaft0410--01 ~ 0708--01; 4M50T.AT/6F |
34520-WK900 |
US $34.70 |
||
|
34552X
|
34552X
34552V5200 Insulator-Rod0410--01 ~ 0708--01; 4M50T.AT/6F |
34552V5200 |
from US $1.17 |
||
|
34902
|
34902
34901-WK600 Device Assy-Transmission Control0410--01 ~ 0708--01; 4M50T.AT/6F |
34901-WK600 |
US $454.54 |
||
|
34902
|
34902
2434610V00 Clip0410--01 ~ 0708--01; 4M50T.AT/6F |
2434610V00 |
US $4.18 |
||
|
34902
|
34902
2434610V02 Clip-Connector0410--01 ~ 0708--01; 4M50T.AT/6F |
2434610V02 |
US $2.78 |
||
|
34902F
|
34902F
2434610V00 Clip0410--01 ~ 0708--01; 4M50T.AT/6F |
2434610V00 |
US $4.18 |
||
|
34902F
|
34902F
2434610V02 Clip-Connector0410--01 ~ 0708--01; 4M50T.AT/6F |
2434610V02 |
US $2.78 |
||
|
34902FA
|
34902FA
2434610V02 Clip-Connector0410--01 ~ 0708--01; 4M50T.AT/6F |
2434610V02 |
US $2.78 |
||
|
34904
|
34904
34904-WK600 Bracket Compl-Control Lever0410--01 ~ 0708--01; 4M50T.AT/6F |
34904-WK600 |
US $291.70 |
||
|
34910
|
34910
34910-WJ100 Knob Assy-Control Lever, Auto0410--01 ~ 0708--01; 4M50T.AT/6F |
34910-WJ100 |
US $113.18 |
||
|
34920E
|
34920E
25130-36F00 Switch Assy-Over Drive0410--01 ~ 0708--01; 4M50T.AT/6F |
25130-36F00 |
US $16.27 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button0410--01 ~ 0708--01; 4M50T.AT/6F |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-64J00 Screw0410--01 ~ 0708--01; 4M50T.AT/6F |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925M
|
34925M
34925-EB30A Screw0410--01 ~ 0708--01; 4M50T.AT/6F |
34925-EB30A |
US $1.73 |
||
|
34925M
|
34925M
34925-41B00 Screw0410--01 ~ 0708--01; 4M50T.AT/6F |
34925-41B00 |
US $1.73 |
||
|
34925MA
|
34925MA
34925-41B00 Screw0410--01 ~ 0708--01; 4M50T.AT/6F |
34925-41B00 |
US $1.73 |
||
|
34927
|
34927
34927-WK900 Bush-Control Tube0410--01 ~ 0708--01; 4M50T.AT/6F |
34927-WK900 |
US $4.18 |
||
|
34932M
|
34932M
34932-G5401 Plate-Lock0410--01 ~ 0512--01; 4M50T.AT/6F |
34932-G5401 |
US $2.45 |
||
| replacement | |||||
|
34932M
|
34932M
36406G540A Plate-Lock0410--01 ~ 0512--01; 4M50T.AT/6F |
36406G540A |
from US $1.02 |
||
|
34932M
|
34932M
34932-G5401 Plate-Lock0410--01 ~ 0512--01; 4M50T.AT/6F |
34932-G5401 |
US $2.45 |
||
| replacement | |||||
|
34932M
|
34932M
36406G540A Plate-Lock0410--01 ~ 0512--01; 4M50T.AT/6F |
36406G540A |
from US $1.02 |
||
|
34935
|
34935
34936-WK900 Rod-Selector0410--01 ~ 0708--01; 4M50T.AT/6F |
34936-WK900 |
US $97.49 |
||
|
34935
|
34935
34935-WK600 Cable Assy-Control0410--01 ~ 0708--01; 4M50T.AT/6F |
34935-WK600 |
US $97.49 |
||
|
34935M
|
34935M
34935-WK600 Cable Assy-Control0410--01 ~ 0708--01; 4M50T.AT/6F |
34935-WK600 |
US $97.49 |
||
|
34939
|
34939
34939-WK620 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK620 |
US $16.27 |
||
|
34939
|
34939
34939-WK600 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK600 |
US $16.27 |
||
|
34939
|
34939
34939-WK610 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK610 |
US $16.27 |
||
|
34939
|
34939
34939-WK640 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK640 |
US $16.27 |
||
|
34939
|
34939
34939-WK650 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK650 |
US $16.27 |
||
|
34939+A
|
34939+A
34939-WK600 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK600 |
US $16.27 |
||
|
34939+B
|
34939+B
34939-WK610 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK610 |
US $16.27 |
||
|
34939+C
|
34939+C
34939-WK640 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK640 |
US $16.27 |
||
|
34939+D
|
34939+D
34939-WK650 Bracket-Cable Mounting0410--01 ~ 0708--01; 4M50T.AT/6F |
34939-WK650 |
US $16.27 |
||
|
34956
|
34956
34956-96E00 KNOB-RELEASE LEVER0410--01 ~ 0708--01; 4M50T.AT/6F |
34956-96E00 |
US $5.04 |
||
|
34965
|
34965
34965-25N05 Lever-Stopper0410--01 ~ 0708--01; 4M50T.AT/6F |
34965-25N05 |
US $2.45 |
||
|
34970+A
|
34970+A
34970-WJ100 Solenoid Assy-Select Lock0410--01 ~ 0708--01; 4M50T.AT/6F |
34970-WJ100 |
US $69.98 |
||
|
34977
|
34977
34977-25N05 Bracket Assy-Release Lever0410--01 ~ 0708--01; 4M50T.AT/6F |
34977-25N05 |
US $4.18 |
||
|
34980+A
|
34980+A
34980-WJ100 Park Position Switch0410--01 ~ 0708--01; 4M50T.AT/6F |
34980-WJ100 |
US $46.37 |
||
|
36522Y
|
36522Y
36522-68200
Washer-Plain
0410--01 ~ 0708--01; 4M50T.AT/6F |
36522-68200 |
— | ||
| replacement | |||||
|
36522Y
|
36522Y
365226820A Washer0410--01 ~ 0708--01; 4M50T.AT/6F |
365226820A |
from US $1.07 |
||
|
36522Y
|
36522Y
36522-68200
Washer-Plain
0410--01 ~ 0708--01; 4M50T.AT/6F |
36522-68200 |
— | ||
| replacement | |||||
|
36522Y
|
36522Y
365226820A Washer0410--01 ~ 0708--01; 4M50T.AT/6F |
365226820A |
from US $1.07 |
||
|
96940Y
|
96940Y
96940-WK600 ｲﾝｼﾞｹ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ｺﾝﾄﾛ-ﾙ0410--01 ~ 0708--01; 4M50T.AT/6F |
96940-WK600 |
US $85.10 |
||
