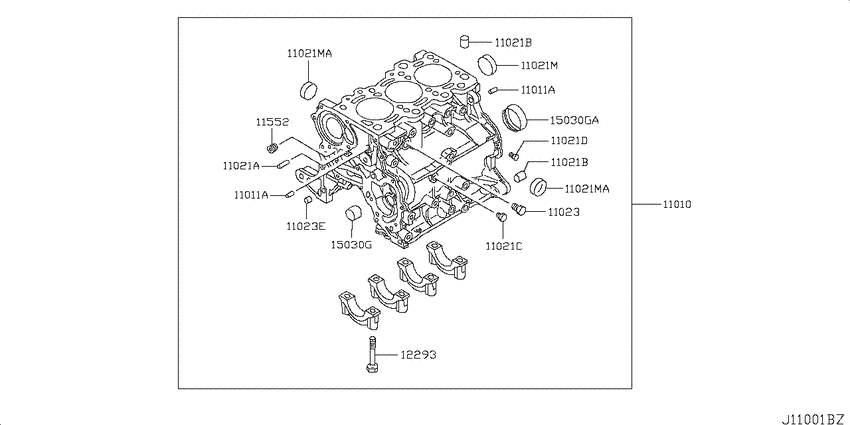

Cylinder block & oil pan (2008-03-01 ~ ; シリンダーブロック; 3G83) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 3AT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11010
|
11010
11010-6A00C Block Assy-Cylinder0803--01 ~ ; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
11010-6A00C |
US $1,428 |
||
|
11010
|
11010
11010-6A0A0 Block Assy-Cylinder0310--01 ~ 0803--01; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
11010-6A0A0 |
US $1,582 |
||
|
11010
|
11010
013116A0A1 Washer0310--01 ~ ; 3G83 |
013116A0A1 |
US $2.10 |
||
|
11011A
|
11011A
01522-6A0A0 Pin0310--01 ~ ; 3G83 |
01522-6A0A0 |
US $2.38 |
||
|
11011A
|
11011A
01522-6A0A0 Pin0310--01 ~ ; 3G83 |
01522-6A0A0 |
US $2.38 |
||
|
11021A
|
11021A
11024-6A0A0 Plug-Taper0310--01 ~ ; 3G83; 6X22 |
11024-6A0A0 |
US $3.36 |
||
|
11021B
|
11021B
01647-6A0A0 Plug-Taper0310--01 ~ ; 3G83; 10X16 |
01647-6A0A0 |
US $2.38 |
||
|
11021B
|
11021B
01647-6A0A0 Plug-Taper0310--01 ~ ; 3G83; 10X16 |
01647-6A0A0 |
US $2.38 |
||
|
11021C
|
11021C
11021-6A0A0 Plug-Welch0310--01 ~ ; 3G83 |
11021-6A0A0 |
US $2.94 |
||
|
11021D
|
11021D
11019-6A0A0 Plug-Welch0310--01 ~ ; 3G83 |
11019-6A0A0 |
US $3.63 |
||
|
11021M
|
11021M
11021-6A0A1 Plug-Taper0310--01 ~ ; 3G83 |
11021-6A0A1 |
US $2.10 |
||
|
11021M
|
11021M
11048-6A0A0 Plug-Taper0310--01 ~ ; 3G83 |
11048-6A0A0 |
US $2.10 |
||
|
11021MA
|
11021MA
11048-6A0A0 Plug-Taper0310--01 ~ ; 3G83 |
11048-6A0A0 |
US $2.10 |
||
|
11021MA
|
11021MA
11048-6A0A0 Plug-Taper0310--01 ~ ; 3G83 |
11048-6A0A0 |
US $2.10 |
||
|
11023
|
11023
14017-6A0A0 Plug-Blind0310--01 ~ ; 3G83 |
14017-6A0A0 |
US $3.36 |
||
|
11023
|
11023
110296A0A0 Gasket0310--01 ~ ; 3G83 |
110296A0A0 |
US $2.94 |
||
|
11023
|
11023
11022-6A0A0 Plug-Blind0310--01 ~ ; 3G83 |
11022-6A0A0 |
US $2.80 |
||
|
11023E
|
11023E
11022-6A0A0 Plug-Blind0310--01 ~ ; 3G83 |
11022-6A0A0 |
US $2.80 |
||
|
11552
|
11552
11552-6A0A0 Insulator0310--01 ~ ; 3G83 |
11552-6A0A0 |
US $1.96 |
||
|
12293
|
12293
12293-6A0A0 Bolt-Main Bearing Cap0310--01 ~ ; 3G83 |
12293-6A0A0 |
US $3.50 |
||
|
15030G
|
15030G
01641-6A0A0 Plug0310--01 ~ ; 3G83 |
01641-6A0A0 |
US $19.74 |
||
|
15030G
|
15030G
01641-6A0A1 Plug0310--01 ~ ; 3G83 |
01641-6A0A1 |
US $21.98 |
||
|
15030GA
|
15030GA
01641-6A0A1 Plug0310--01 ~ ; 3G83 |
01641-6A0A1 |
US $21.98 |
