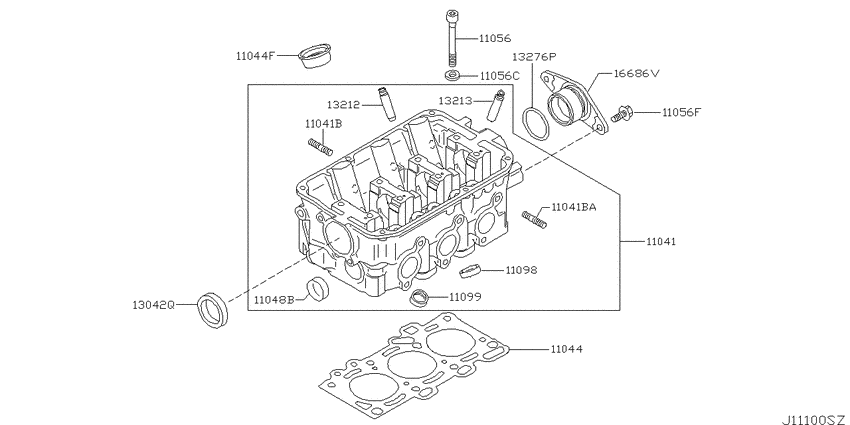

Cylinder head & rocker cover (2003-10-01 ~ ; シリンダーヘッド; 3G83) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 3AT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11041
|
11041
11041-6A0A0 Head Assy-Cylinder0310--01 ~ ; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
11041-6A0A0 |
US $1,003.80 |
||
|
11041
|
11041
14065-6A0A1 Stud0310--01 ~ ; 3G83 |
14065-6A0A1 |
US $2.52 |
||
|
11041
|
11041
140656A0A0 Stud0310--01 ~ ; 3G83 |
140656A0A0 |
US $3.08 |
||
|
11041B
|
11041B
14065-6A0A1 Stud0310--01 ~ ; 3G83 |
14065-6A0A1 |
US $2.52 |
||
|
11041B
|
11041B
140656A0A0 Stud0310--01 ~ ; 3G83 |
140656A0A0 |
US $3.08 |
||
|
11041BA
|
11041BA
140656A0A0 Stud0310--01 ~ ; 3G83 |
140656A0A0 |
US $3.08 |
||
|
11044
|
11044
110446A0A0 Gasket-Cylinder Head0310--01 ~ ; 菱R.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M+E+E/FOUR) +3G83.3AT |
110446A0A0 |
US $68.01 |
||
|
11044
|
11044
132126A0A3 Ring-Rubber0310--01 ~ ; 3G83 |
132126A0A3 |
US $9.87 |
||
|
11044F
|
11044F
132126A0A3 Ring-Rubber0310--01 ~ ; 3G83 |
132126A0A3 |
US $9.87 |
||
|
11048B
|
11048B
11048-6A0A0 Plug-Taper0310--01 ~ ; 3G83 |
11048-6A0A0 |
US $2.10 |
||
|
11056
|
11056
110566A0A0 Bolt-Cylinder Head0310--01 ~ ; 3G83 |
110566A0A0 |
US $5.74 |
||
|
11056
|
11056
01121-6A0C6 Bolt0310--01 ~ 0311--01; ｣W.2WD.HR.3G83.E.4AT +HR.3G83.SD/2S.5MT +HR/RV.3G83.5MT +3G83.(SD+DX+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+DUMP+PA/VAN+E).5MT +3G83.DX.4AT +3G83.(GL+SP/FL/P+DX/M) +3G83.3AT; ﾜｯｼｬ ﾂｷ,6X16 |
01121-6A0C6 |
US $1.96 |
||
|
11056
|
11056
011256A0B6 Bolt0311--01 ~ ; 3G83; ﾜｯｼｬ ﾂｷ,6X12 |
011256A0B6 |
US $2.10 |
||
|
11056
|
11056
110586A0A0 Washer-Plain0310--01 ~ ; 3G83 |
110586A0A0 |
US $3.08 |
||
|
11056
|
11056
01121-6A0B8 Bolt0310--01 ~ ; 3G83 |
01121-6A0B8 |
US $1.68 |
||
|
11056C
|
11056C
110586A0A0 Washer-Plain0310--01 ~ ; 3G83 |
110586A0A0 |
US $3.08 |
||
|
11056F
|
11056F
01121-6A0B8 Bolt0310--01 ~ ; 3G83 |
01121-6A0B8 |
US $1.68 |
||
|
11098
|
11098
11098-6A0A0 Seat-Valve, Intake0310--01 ~ ; 3G83; OS=0.30 |
11098-6A0A0 |
US $27.72 |
||
|
11098
|
11098
110986A0A1 Seat-Valve, Intake0310--01 ~ ; 3G83; OS=0.60 |
110986A0A1 |
US $30.66 |
||
|
11099
|
11099
11099-6A0A0 Seat-Valve, Exhaust0310--01 ~ ; 3G83; OS=0.30 |
11099-6A0A0 |
US $27.72 |
||
|
11099
|
11099
110996A0A1 Seat-Valve, Exhaust0310--01 ~ ; 3G83; OS=0.60 |
110996A0A1 |
US $30.66 |
||
|
13042Q
|
13042Q
135106A0A0 Seal-Oil, Camshaft0310--01 ~ ; 3G83; ｡ |
135106A0A0 |
US $5.04 |
||
|
13042Q
|
13042Q
AY770MT001 Seal-Oil, Camshaft0310--01 ~ ; 3G83; ﾕｳｼｮｳ ｼｭｳﾘ ﾖｳ |
AY770MT001 |
US $4.90 |
||
|
13212
|
13212
13212-6A0A0 Guide-Valve, Intake0310--01 ~ ; 3G83; OS=0.05 |
13212-6A0A0 |
US $9.80 |
||
|
13212
|
13212
13212-6A0A1 Guide-Valve, Intake0310--01 ~ ; 3G83; OS=0.25 |
13212-6A0A1 |
US $10.78 |
||
|
13212
|
13212
13212-6A0A2 Guide-Valve, Intake0310--01 ~ ; 3G83; OS=0.50 |
13212-6A0A2 |
US $10.78 |
||
|
13213
|
13213
13213-6A0A0 Guide-Valve, Exhaust0310--01 ~ ; 3G83; OS=0.05 |
13213-6A0A0 |
US $7.42 |
||
|
13213
|
13213
13213-6A0A1 Guide-Valve, Exhaust0310--01 ~ ; 3G83; OS=0.25 |
13213-6A0A1 |
US $8.40 |
||
|
13213
|
13213
13213-6A0A2 Guide-Valve, Exhaust0310--01 ~ ; 3G83; OS=0.50 |
13213-6A0A2 |
US $8.40 |
||
|
13276P
|
13276P
150566A0A0 Seal-O Ring0310--01 ~ ; 3G83 |
150566A0A0 |
US $3.64 |
||
|
16686V
|
16686V
16650-6A0A0 Support-Nozzle0310--01 ~ ; 3G83 |
16650-6A0A0 |
US $25.62 |
