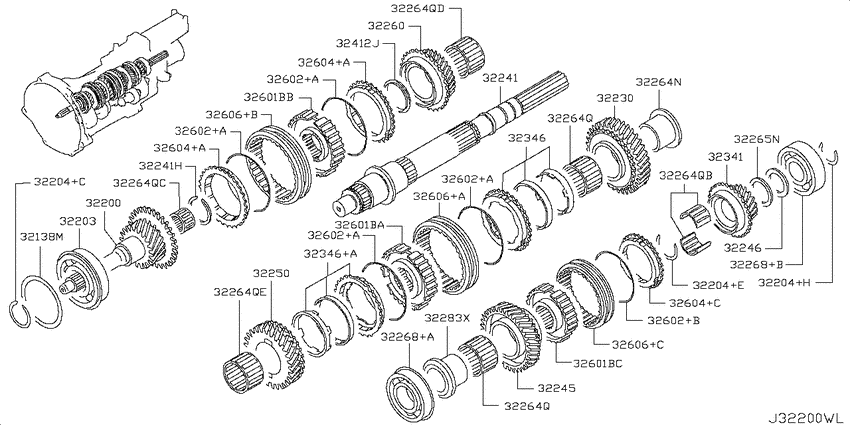

Transmission gear (2007-05-01 ~ ; メーン シャフト; (G+G/FOUR).5MT) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- G/FOUR
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32138M
|
32138M
32138-6A00A Shim-Adjust, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT; T=0.74 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
32138-6A00A |
US $5.33 |
||
|
32138M
|
32138M
32138-6A00B Shim-Adjust, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT; T=0.83､ｾﾝﾀｸｼﾃ ｼﾖｳ |
32138-6A00B |
US $5.33 |
||
|
32138M
|
32138M
32138-6A00C Shim-Adjust, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT; T=0.92､ｾﾝﾀｸｼﾃ ｼﾖｳ |
32138-6A00C |
US $5.33 |
||
|
32138M
|
32138M
32138-6A00D Shim-Adjust, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT; T=1.01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32138-6A00D |
US $5.33 |
||
|
32138M
|
32138M
32138-6A00E Shim-Adjust, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ T=1.10 |
32138-6A00E |
US $5.33 |
||
|
32200
|
32200
32200-6A00A Gear Assy-Main Drive0705--01 ~ ; (G+G/FOUR).5MT |
32200-6A00A |
US $151.20 |
||
|
32203
|
32203
32421-6A00A Bearing-Main Drive0705--01 ~ ; (G+G/FOUR).5MT; ﾎﾞｰﾙ,68 |
32421-6A00A |
US $31.54 |
||
|
32204+C
|
32204+C
32204-6A00J Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.52 |
32204-6A00J |
US $3.17 |
||
|
32204+C
|
32204+C
32204-6A00K Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.57 |
32204-6A00K |
US $3.17 |
||
|
32204+C
|
32204+C
32204-6A00L Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.62 |
32204-6A00L |
US $3.17 |
||
|
32204+C
|
32204+C
32204-6A00M Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.67 |
32204-6A00M |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00A Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.87 |
32204-6A00A |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00B Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.94 |
32204-6A00B |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00C Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.01 |
32204-6A00C |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00D Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.08 |
32204-6A00D |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00E Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.15 |
32204-6A00E |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00F Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.22 |
32204-6A00F |
US $3.17 |
||
|
32204+E
|
32204+E
32204-6A00G Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.29 |
32204-6A00G |
US $3.17 |
||
|
32204+H
|
32204+H
32204-6A01A Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.54 |
32204-6A01A |
US $3.60 |
||
|
32204+H
|
32204+H
32204-6A01B Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.63 |
32204-6A01B |
US $3.60 |
||
|
32204+H
|
32204+H
32204-6A01C Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 1.72 |
32204-6A01C |
US $3.60 |
||
|
32230
|
32230
32243-6A00A Gear Assy-1St0705--01 ~ ; (G+G/FOUR).5MT; N=36 |
32243-6A00A |
US $123.26 |
||
|
32241
|
32241
32241-6A00A Shaft-Main0705--01 ~ ; G/FOUR.5MT |
32241-6A00A |
US $168.48 |
||
|
32241
|
32241
32708-6A00A Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.15 |
32708-6A00A |
US $3.74 |
||
|
32241
|
32241
32708-6A00B Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.22 |
32708-6A00B |
US $3.74 |
||
|
32241
|
32241
32708-6A00C Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.29 |
32708-6A00C |
US $3.74 |
||
|
32241
|
32241
32708-6A00D Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.36 |
32708-6A00D |
US $3.74 |
||
|
32241H
|
32241H
32708-6A00A Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.15 |
32708-6A00A |
US $3.74 |
||
|
32241H
|
32241H
32708-6A00B Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.22 |
32708-6A00B |
US $3.74 |
||
|
32241H
|
32241H
32708-6A00C Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.29 |
32708-6A00C |
US $3.74 |
||
|
32241H
|
32241H
32708-6A00D Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.36 |
32708-6A00D |
US $3.74 |
||
|
32245
|
32245
32245-6A00A Gear-Reverse, Main Shaft0705--01 ~ ; (G+G/FOUR).5MT; N=41 |
32245-6A00A |
US $106.70 |
||
|
32246
|
32246
32246-6A00A Washer-Thrust0705--01 ~ ; (G+G/FOUR).5MT; 2.5 |
32246-6A00A |
US $5.33 |
||
|
32250
|
32250
32251-6A00A Gear Assy-2Nd0705--01 ~ ; (G+G/FOUR).5MT; N=28 |
32251-6A00A |
US $107.57 |
||
|
32260
|
32260
32261-6A00A Gear Assy-3Rd0705--01 ~ ; (G+G/FOUR).5MT; N=27 |
32261-6A00A |
US $107.57 |
||
|
32264N
|
32264N
32264-6A00B Bush-Main Gear0705--01 ~ ; (G+G/FOUR).5MT |
32264-6A00B |
US $24.05 |
||
|
32264Q
|
32264Q
32264-6A00E Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00E |
US $15.41 |
||
|
32264Q
|
32264Q
32264-6A00C Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,28 |
32264-6A00C |
US $6.62 |
||
|
32264Q
|
32264Q
32264-6A00A Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,26 |
32264-6A00A |
US $8.06 |
||
|
32264Q
|
32264Q
32264-6A00D Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00D |
US $15.41 |
||
|
32264Q
|
32264Q
32264-6A00E Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00E |
US $15.41 |
||
|
32264Q
|
32264Q
32264-6A00E Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00E |
US $15.41 |
||
|
32264Q
|
32264Q
32264-6A00C Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,28 |
32264-6A00C |
US $6.62 |
||
|
32264Q
|
32264Q
32264-6A00A Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,26 |
32264-6A00A |
US $8.06 |
||
|
32264Q
|
32264Q
32264-6A00D Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00D |
US $15.41 |
||
|
32264Q
|
32264Q
32264-6A00E Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00E |
US $15.41 |
||
|
32264QB
|
32264QB
32264-6A00C Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,28 |
32264-6A00C |
US $6.62 |
||
|
32264QC
|
32264QC
32264-6A00A Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,26 |
32264-6A00A |
US $8.06 |
||
|
32264QD
|
32264QD
32264-6A00D Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00D |
US $15.41 |
||
|
32264QE
|
32264QE
32264-6A00E Bearing-Needle0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,41 |
32264-6A00E |
US $15.41 |
||
|
32265N
|
32265N
32265-6A00A Spacer-Beraring0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.08 |
32265-6A00A |
US $5.33 |
||
|
32265N
|
32265N
32265-6A00B Spacer-Beraring0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.27 |
32265-6A00B |
US $5.33 |
||
|
32265N
|
32265N
32265-6A00C Spacer-Beraring0705--01 ~ ; (G+G/FOUR).5MT; SELECT USE 2.46 |
32265-6A00C |
US $5.33 |
||
|
32268+A
|
32268+A
32203-6A00A Bearing0705--01 ~ ; (G+G/FOUR).5MT; ﾎﾞｰﾙ,62 |
32203-6A00A |
US $18.43 |
||
|
32268+B
|
32268+B
32203-6A00B Bearing0705--01 ~ ; (G+G/FOUR).5MT; ﾎﾞｰﾙ,62 |
32203-6A00B |
US $18.43 |
||
|
32283X
|
32283X
32283-6A00A Sleeve-Needle0705--01 ~ ; (G+G/FOUR).5MT |
32283-6A00A |
US $26.35 |
||
|
32341
|
32341
32341-6A00A Gear-5Th, Main0705--01 ~ ; (G+G/FOUR).5MT; N=18 |
32341-6A00A |
US $82.66 |
||
|
32346
|
32346
32346-6A00B Ring Set-C, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT |
32346-6A00B |
US $109.01 |
||
|
32346
|
32346
32346-6A00A Ring Set-C, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT |
32346-6A00A |
US $109.01 |
||
|
32346+A
|
32346+A
32346-6A00A Ring Set-C, Main Shaft Bearing0705--01 ~ ; (G+G/FOUR).5MT |
32346-6A00A |
US $109.01 |
||
|
32412J
|
32412J
32413-6A00A Damper-Torsion0705--01 ~ ; (G+G/FOUR).5MT |
32413-6A00A |
US $27.79 |
||
|
32412J
|
32412J
32413-6A00B Damper-Torsion0705--01 ~ ; (G+G/FOUR).5MT |
32413-6A00B |
US $11.52 |
||
|
32601BA
|
32601BA
32601-6A00A Hub-Synchronizer, 2Nd & 3Rd0705--01 ~ ; (G+G/FOUR).5MT |
32601-6A00A |
US $42.05 |
||
|
32601BB
|
32601BB
32601-6A00B Hub-Synchronizer, 2Nd & 3Rd0705--01 ~ ; (G+G/FOUR).5MT |
32601-6A00B |
US $42.05 |
||
|
32601BC
|
32601BC
32601-6A00C Hub-Synchronizer, 2Nd & 3Rd0705--01 ~ ; (G+G/FOUR).5MT |
32601-6A00C |
US $42.05 |
||
|
32602+A
|
32602+A
32602-6A00A Spring-Shifting Insert0705--01 ~ ; (G+G/FOUR).5MT |
32602-6A00A |
US $3.74 |
||
|
32602+A
|
32602+A
32602-6A00A Spring-Shifting Insert0705--01 ~ ; (G+G/FOUR).5MT |
32602-6A00A |
US $3.74 |
||
|
32602+A
|
32602+A
32602-6A00A Spring-Shifting Insert0705--01 ~ ; (G+G/FOUR).5MT |
32602-6A00A |
US $3.74 |
||
|
32602+A
|
32602+A
32602-6A00A Spring-Shifting Insert0705--01 ~ ; (G+G/FOUR).5MT |
32602-6A00A |
US $3.74 |
||
|
32602+B
|
32602+B
32602-6A00B Spring-Shifting Insert0705--01 ~ ; (G+G/FOUR).5MT |
32602-6A00B |
US $3.74 |
||
|
32604+A
|
32604+A
32604-6A00A Ring-Baulk0705--01 ~ ; (G+G/FOUR).5MT |
32604-6A00A |
US $45.07 |
||
|
32604+A
|
32604+A
32604-6A00A Ring-Baulk0705--01 ~ ; (G+G/FOUR).5MT |
32604-6A00A |
US $45.07 |
||
|
32604+C
|
32604+C
32604-6A00B Ring-Baulk0705--01 ~ ; (G+G/FOUR).5MT |
32604-6A00B |
US $45.07 |
||
|
32606+A
|
32606+A
32606-6A00A Sleeve-Coupling0705--01 ~ ; (G+G/FOUR).5MT |
32606-6A00A |
US $58.61 |
||
|
32606+B
|
32606+B
32606-6A00B Sleeve-Coupling0705--01 ~ ; (G+G/FOUR).5MT |
32606-6A00B |
US $64.66 |
||
|
32606+C
|
32606+C
32606-6A00C Sleeve-Coupling0705--01 ~ ; (G+G/FOUR).5MT |
32606-6A00C |
US $64.66 |
