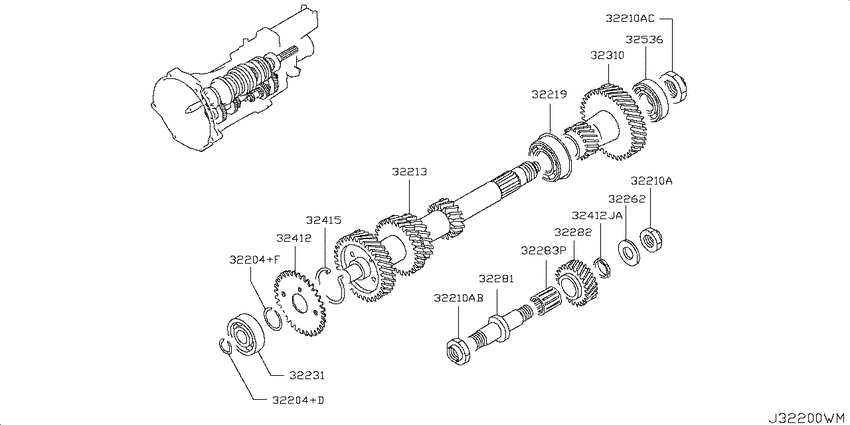

Transmission gear (2007-05-01 ~ ; カウンタ シャフト; (G+G/FOUR).5MT) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- G/FOUR
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32204+D
|
32204+D
31506-6A0B3 Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT; 17 |
31506-6A0B3 |
US $1.87 |
||
|
32204+F
|
32204+F
32204-6A00H Ring-Snap0705--01 ~ ; (G+G/FOUR).5MT |
32204-6A00H |
US $3.74 |
||
|
32210A
|
32210A
32236-6A00A Nut0705--01 ~ ; (G+G/FOUR).5MT; ﾛｯｸ,16 |
32236-6A00A |
US $4.18 |
||
|
32210A
|
32210A
32236-6A00B Nut0705--01 ~ ; (G+G/FOUR).5MT; ﾛｯｸ18 |
32236-6A00B |
US $4.18 |
||
|
32210A
|
32210A
32236-6A00C Nut0705--01 ~ ; (G+G/FOUR).5MT; ﾛｯｸ,22 |
32236-6A00C |
US $4.61 |
||
|
32210AB
|
32210AB
32236-6A00B Nut0705--01 ~ ; (G+G/FOUR).5MT; ﾛｯｸ18 |
32236-6A00B |
US $4.18 |
||
|
32210AC
|
32210AC
32236-6A00C Nut0705--01 ~ ; (G+G/FOUR).5MT; ﾛｯｸ,22 |
32236-6A00C |
US $4.61 |
||
|
32213
|
32213
32212-6A00A Gear-Counter0705--01 ~ ; (G+G/FOUR).5MT |
32212-6A00A |
US $387.98 |
||
|
32219
|
32219
32219-6A00A Bearing-Counter Shaft0705--01 ~ ; (G+G/FOUR).5MT; ﾎﾞｰﾙ,52 |
32219-6A00A |
US $28.66 |
||
|
32231
|
32231
21030-6A00A Bearing-Counter Shaft0705--01 ~ ; (G+G/FOUR).5MT |
21030-6A00A |
US $18.43 |
||
|
32262
|
32262
32207-6A00A Washer-Thrust0705--01 ~ ; (G+G/FOUR).5MT; 3.0 |
32207-6A00A |
US $4.46 |
||
|
32281
|
32281
32281-6A00A Shaft-Reverse Idler0705--01 ~ ; (G+G/FOUR).5MT |
32281-6A00A |
US $91.01 |
||
|
32282
|
32282
32282-6A00A Gear-Reverse Idler0705--01 ~ ; (G+G/FOUR).5MT; N=25 |
32282-6A00A |
US $45.79 |
||
|
32283P
|
32283P
32283-6A00B Bearing-Reverse Idler Gear0705--01 ~ ; (G+G/FOUR).5MT; ﾆｰﾄﾞﾙ,24 |
32283-6A00B |
US $12.82 |
||
|
32310
|
32310
32310-6A00A Gear-Overdrive, Counter0705--01 ~ ; (G+G/FOUR).5MT |
32310-6A00A |
US $181.44 |
||
|
32412
|
32412
32412-6A00A Gear-Sub, Counter Drive Gear0705--01 ~ ; (G+G/FOUR).5MT |
32412-6A00A |
US $30.82 |
||
|
32412
|
32412
32413-6A00A Damper-Torsion0705--01 ~ ; (G+G/FOUR).5MT |
32413-6A00A |
US $27.79 |
||
|
32412
|
32412
32413-6A00B Damper-Torsion0705--01 ~ ; (G+G/FOUR).5MT |
32413-6A00B |
US $11.52 |
||
|
32412JA
|
32412JA
32413-6A00B Damper-Torsion0705--01 ~ ; (G+G/FOUR).5MT |
32413-6A00B |
US $11.52 |
||
|
32415
|
32415
32415-6A0A0 Spring-Ring0310--01 ~ ; 5MT |
32415-6A0A0 |
US $4.03 |
||
|
32536
|
32536
32536-6A00A Bearing-Counter Gear, Front0705--01 ~ ; (G+G/FOUR).5MT; ﾎﾞｰﾙ,50 |
32536-6A00A |
US $28.66 |
