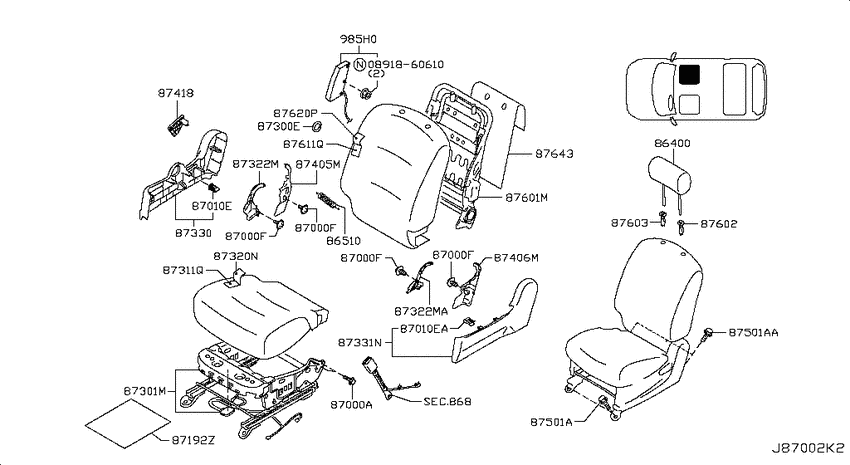

Front seat (2009-02-01 ~ ; RH SEAT(KROM RIDER); *W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891860610
|
0891860610
0891860610 NUTSLOCK |
0891860610 |
US $2.09 |
||
|
86400
|
86400
86400-1FB0A Headrest Assy-Front Seat2009-02-01 ~ ; W.(18S+18SL); , |
86400-1FB0A |
US $162.72 |
||
|
86400
|
86400
86400-1FB0B Headrest Assy-Front Seat2009-02-01 ~ ; W.(18S+18SL); , |
86400-1FB0B |
US $162.72 |
||
|
86400
|
86400
86430-1FB0A Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0A |
US $162.72 |
||
|
86400
|
86400
86430-1FB0B Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0B |
US $162.72 |
||
|
86510
|
86510
87496-1FA0A Spring-Return2009-02-01 ~ ; W; , |
87496-1FA0A |
US $6.19 |
||
|
86510
|
86510
87496-1FA0A Spring-Return2009-02-01 ~ ; W; , |
87496-1FA0A |
US $6.19 |
||
|
868
|
Front seat belt
868
|
||||
|
87000A
|
87000A
86899-1FA2A Bolt-Special2009-02-01 ~ ; W; , |
86899-1FA2A |
US $5.33 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ ; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-1FB0A Screw2009-12-01 ~ ; W; , |
88795-1FB0A |
US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ 2009-12-01; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ ; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-1FB0A Screw2009-12-01 ~ ; W; , |
88795-1FB0A |
US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ 2009-12-01; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ ; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-1FB0A Screw2009-12-01 ~ ; W; , |
88795-1FB0A |
US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ 2009-12-01; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ ; W; , |
88795-JM00A |
from US $0.86 |
||
|
87000F
|
87000F
88795-1FB0A Screw2009-12-01 ~ ; W; , |
88795-1FB0A |
US $0.86 |
||
|
87000F
|
87000F
88795-JM00A Screw2009-02-01 ~ 2009-12-01; W; , |
88795-JM00A |
from US $0.86 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-02-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-10-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-02-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-10-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-02-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010E
|
87010E
87457-1FA0A Clip2009-02-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87010EA
|
87010EA
87457-1FA0A Clip2009-10-01 ~ ; W; , |
87457-1FA0A |
US $5.90 |
||
|
87192Z
|
87192Z
87329-1FA0A Silencer-Front Seat2009-02-01 ~ ; W; , |
87329-1FA0A |
US $14.98 |
||
|
87192Z
|
87192Z
87329-1FA0A Silencer-Front Seat2009-02-01 ~ ; W; , |
87329-1FA0A |
US $14.98 |
||
|
87300E
|
87300E
8690132200 Clip2009-10-01 ~ ; W; , |
8690132200 |
from US $0.22 |
||
|
87300E
|
87300E
8690132200 Clip2009-05-01 ~ 2009-10-01; W; HOG RING RH/LH |
8690132200 |
from US $0.22 |
||
|
87301M
|
87301M
87301-1FE0A
Frame Assy-Cushion, Front Seat
2009-10-01 ~ ; W; , |
87301-1FE0A |
— | ||
|
87301M
|
87301M
87301-1FH0A
Frame Assy-Cushion, Front Seat
2009-02-01 ~ 2009-10-01; W; , |
87301-1FH0A |
— | ||
|
87301M
|
87301M
87351-1FH0A
Frame Assy-Cushion, Front Seat
2009-02-01 ~ ; W; , |
87351-1FH0A |
— | ||
|
87322M
|
87322M
87324-1FA0A Finisher assy-rear,front cushion rh2009-02-01 ~ ; W; , |
87324-1FA0A |
US $5.90 |
||
|
87322M
|
87322M
87324-1FA0B Finisher assy-rear,front cushion rh2009-02-01 ~ ; W.(18S+18SL); , |
87324-1FA0B |
US $5.90 |
||
|
87322M
|
87322M
87325-1FA0A Finisher assy-rear,front cushion rh2009-02-01 ~ ; W; , |
87325-1FA0A |
US $5.90 |
||
|
87322M
|
87322M
87325-1FA0B Finisher assy-rear,front cushion rh2009-02-01 ~ ; W.(18S+18SL); , |
87325-1FA0B |
US $5.90 |
||
|
87322M
|
87322M
87324-1FA0A Finisher assy-rear,front cushion rh2009-02-01 ~ ; W; , |
87324-1FA0A |
US $5.90 |
||
|
87322M
|
87322M
87324-1FA0B Finisher assy-rear,front cushion rh2009-02-01 ~ ; W.(18S+18SL); , |
87324-1FA0B |
US $5.90 |
||
|
87322M
|
87322M
87325-1FA0A Finisher assy-rear,front cushion rh2009-02-01 ~ ; W; , |
87325-1FA0A |
US $5.90 |
||
|
87322M
|
87322M
87325-1FA0B Finisher assy-rear,front cushion rh2009-02-01 ~ ; W.(18S+18SL); , |
87325-1FA0B |
US $5.90 |
||
|
87322MA
|
87322MA
87325-1FA0A Finisher assy-rear,front cushion rh2009-02-01 ~ ; W; , |
87325-1FA0A |
US $5.90 |
||
|
87322MA
|
87322MA
87325-1FA0B Finisher assy-rear,front cushion rh2009-02-01 ~ ; W.(18S+18SL); , |
87325-1FA0B |
US $5.90 |
||
|
87330
|
87330
87330-1FA0A Finisher assy-cushion,front seat rh2009-02-01 ~ ; W; , |
87330-1FA0A |
US $63.65 |
||
|
87330
|
87330
87330-1FA0B
Finisher assy-cushion,front seat rh
2009-02-01 ~ ; W.(18S+18SL); , |
87330-1FA0B |
— | ||
|
87331N
|
87331N
87331-1FH0A Finisher-cushion,front seat inner rh2009-02-01 ~ ; W; , |
87331-1FH0A |
US $29.95 |
||
|
87331N
|
87331N
87331-1FH0B Finisher-cushion,front seat inner rh2009-02-01 ~ ; W.(18S+18SL); , |
87331-1FH0B |
US $29.95 |
||
|
87405M
|
87405M
87405-1FA0A Cover-reclining device,rh outer2009-02-01 ~ ; W; , |
87405-1FA0A |
US $10.22 |
||
|
87405M
|
87405M
87405-1FA0B Cover-reclining device,rh outer2009-02-01 ~ ; W.(18S+18SL); , |
87405-1FA0B |
US $10.22 |
||
|
87405M
|
87405M
87405-1FA0A Cover-reclining device,rh outer2009-02-01 ~ ; W; , |
87405-1FA0A |
US $10.22 |
||
|
87405M
|
87405M
87405-1FA0B Cover-reclining device,rh outer2009-02-01 ~ ; W.(18S+18SL); , |
87405-1FA0B |
US $10.22 |
||
|
87406M
|
87406M
87406-1FH0A
Cover-reclining device,inner
2009-02-01 ~ ; W; , |
87406-1FH0A |
— | ||
|
87406M
|
87406M
87406-1FH0B
Cover-reclining device,inner
2009-02-01 ~ ; W.(18S+18SL); , |
87406-1FH0B |
— | ||
|
87406M
|
87406M
87406-1FA0A Cover-reclining device,inner2009-02-01 ~ ; W; , |
87406-1FA0A |
US $6.91 |
||
|
87406M
|
87406M
87406-1FA0B Cover-reclining device,inner2009-02-01 ~ ; W.(18S+18SL); , |
87406-1FA0B |
US $6.91 |
||
|
87418
|
87418
87418-1FA0A Knob-reclining device2009-02-01 ~ ; W; , |
87418-1FA0A |
US $6.19 |
||
|
87418
|
87418
87418-1FA0B Knob-reclining device2009-02-01 ~ ; W.(18S+18SL); , |
87418-1FA0B |
US $6.19 |
||
|
87418
|
87418
87468-1FA0A Knob-reclining device2009-02-01 ~ ; W; , |
87468-1FA0A |
US $6.19 |
||
|
87418
|
87418
87468-1FA0B Knob-reclining device2009-10-01 ~ ; W.(18S+18SL); , |
87468-1FA0B |
US $6.19 |
||
|
87501A
|
87501A
86899-7992A Bolt2009-02-01 ~ ; W; , |
86899-7992A |
from US $1.15 |
||
|
87501A
|
87501A
86899-79910 Bolt2009-02-01 ~ ; W; , |
86899-79910 |
from US $1.13 |
||
|
87501AA
|
87501AA
86899-79910 Bolt2009-02-01 ~ ; W; , |
86899-79910 |
from US $1.13 |
||
|
87601M
|
87601M
87601-1FH0A
Frame assy-front seat back
2009-02-01 ~ ; W; , |
87601-1FH0A |
— | ||
|
87601M
|
87601M
87651-1FH0A
Frame assy-front seat back
2009-02-01 ~ ; W.(18S+18SL); , |
87651-1FH0A |
— | ||
|
87602
|
87602
87602-1FA0B Holder assy-headrest,lock2009-02-01 ~ ; W.(18S+18SL); , |
87602-1FA0B |
US $4.18 |
||
|
87602
|
87602
876029Y000 Holder-Head Rest Lock2009-02-01 ~ ; W; , |
876029Y000 |
US $4.18 |
||
|
87602
|
87602
87602-1FA0B Holder assy-headrest,lock2009-02-01 ~ ; W.(18S+18SL); , |
87602-1FA0B |
US $4.18 |
||
|
87602
|
87602
876029Y000 Holder-Head Rest Lock2009-02-01 ~ ; W; , |
876029Y000 |
US $4.18 |
||
|
87603
|
87603
87603-1FA0B Holder assy-headrest,free2009-02-01 ~ ; W.(18S+18SL); , |
87603-1FA0B |
US $4.18 |
||
|
87603
|
87603
876039Y000 Holder-Head Rest Free2009-02-01 ~ ; W; , |
876039Y000 |
US $4.18 |
||
|
87603
|
87603
87603-1FA0B Holder assy-headrest,free2009-02-01 ~ ; W.(18S+18SL); , |
87603-1FA0B |
US $4.18 |
||
|
87603
|
87603
876039Y000 Holder-Head Rest Free2009-02-01 ~ ; W; , |
876039Y000 |
US $4.18 |
||
|
87611Q
|
87611Q
87611-1FH0A
Pad-front seat back
2009-02-01 ~ ; W; , |
87611-1FH0A |
— | ||
|
87611Q
|
87611Q
87661-1FH0A
Pad-front seat back
2009-02-01 ~ ; W.(18S+18SL); , |
87661-1FH0A |
— | ||
|
87620P
|
87620P
87620-1FH0A
Trim assy-front seat back
2009-02-01 ~ ; W.(18S+18SL); , |
87620-1FH0A |
— | ||
|
87620P
|
87620P
87620-1FH0B
Trim assy-front seat back
2009-02-01 ~ ; W.(18S+18SL); , |
87620-1FH0B |
— | ||
|
87620P
|
87620P
87620-1FD5A Trim assy-front seat back2009-02-01 ~ 2009-10-01; W.18S; , |
87620-1FD5A |
US $305.86 |
||
|
87620P
|
87620P
87620-1FD5B Trim assy-front seat back2009-02-01 ~ 2009-10-01; W.18S; , |
87620-1FD5B |
US $305.86 |
||
|
87620P
|
87620P
87670-1FD5A
Trim assy-front seat back
2009-10-01 ~ ; W.18S; , |
87670-1FD5A |
— | ||
|
87620P
|
87620P
87670-1FD5B
Trim assy-front seat back
2009-10-01 ~ ; W.18S; , |
87670-1FD5B |
— | ||
|
87643
|
87643
87643-1FA0A Supporter-front seat back2009-02-01 ~ ; W; , |
87643-1FA0A |
US $17.71 |
||
|
87643
|
87643
87643-1FA0A Supporter-front seat back2009-02-01 ~ ; W; , |
87643-1FA0A |
US $17.71 |
||
|
985H0
|
985H0
K85H0-1FA0A
Module assy-side air bag fr,rh
2009-02-01 ~ ; W; , |
K85H0-1FA0A |
— | ||
