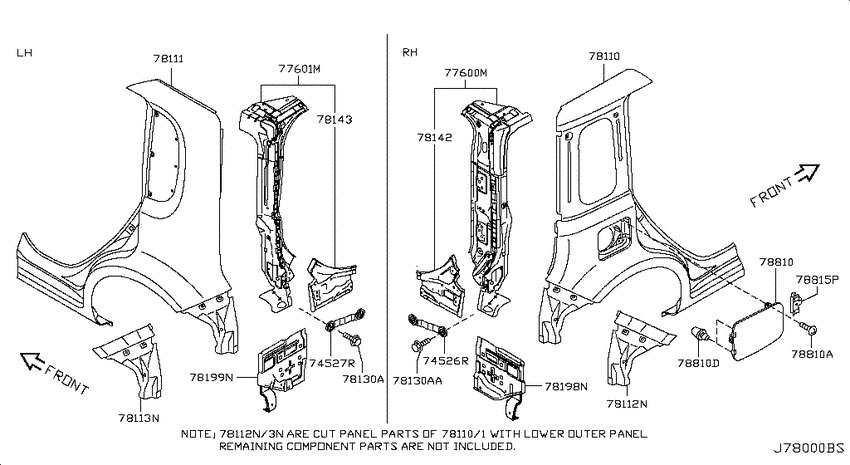

Rear fender & fitting (2009-02-01 ~ ; W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74526R
|
74526R
745B6-1FC0A
Plate Assy-Rear Floor, Rh
2009-02-01 ~ ; W; , |
745B6-1FC0A |
— | ||
|
74527R
|
74527R
745B7-1FC0A
Plate Assy-Rear Floor, Lh
2009-02-01 ~ ; W; , |
745B7-1FC0A |
— | ||
|
77600M
|
77600M
77600-1FC0A
Pillar Assy-Back, Rh
2009-02-01 ~ ; W; , |
77600-1FC0A |
— | ||
|
77601M
|
77601M
77601-1FC0A
Pillar Assy-Back, Lh
2009-02-01 ~ ; W; , |
77601-1FC0A |
— | ||
|
78110
|
78110
GHA00-1FCMA
Fender-Rear, Rh
2009-02-01 ~ ; W; , |
GHA00-1FCMA |
— | ||
|
78111
|
78111
GHA01-1FCMA
Fender-Rear, Lh
2009-02-01 ~ ; W; , |
GHA01-1FCMA |
— | ||
|
78112N
|
78112N
G8118-1FCMA
Fender-Rear Lower, Rh
2009-02-01 ~ ; W; , |
G8118-1FCMA |
— | ||
|
78113N
|
78113N
G8119-1FCMA
Fender-Rear Lower, Lh
2009-02-01 ~ ; W; , |
G8119-1FCMA |
— | ||
|
78130A
|
78130A
73898-5V000 Bolt2009-02-01 ~ ; W; , |
73898-5V000 |
US $1.73 |
||
|
78130A
|
78130A
73898-5V000 Bolt2009-02-01 ~ ; W; , |
73898-5V000 |
US $1.73 |
||
|
78130AA
|
78130AA
73898-5V000 Bolt2009-02-01 ~ ; W; , |
73898-5V000 |
US $1.73 |
||
|
78142
|
78142
G8142-1FC0A
Base-Rear Combination Lamp, Rh
2009-02-01 ~ ; W; , |
G8142-1FC0A |
— | ||
|
78143
|
78143
G8143-1FC0A
Base-Rear Combination Lamp, Lh
2009-02-01 ~ ; W; , |
G8143-1FC0A |
— | ||
|
78198N
|
78198N
G8198-1FCMA
Extension-Base Rear Combination Lamp, Rh
2009-02-01 ~ ; W; , |
G8198-1FCMA |
— | ||
|
78199N
|
78199N
G8199-1FCMA
Extension-Base Rear Combination Lamp, Lh
2009-02-01 ~ ; W; , |
G8199-1FCMA |
— | ||
|
78810
|
78810
78830-1FA0A Lid-Gas Filler2009-02-01 ~ ; W; , |
78830-1FA0A |
US $44.78 |
||
|
78810
|
78810
0143100501 SCREW2009-02-01 ~ ; W; , |
0143100501 |
from US $0.85 |
||
|
78810
|
78810
0165800393 BUMPER-FUEL FILLER LID2009-02-01 ~ ; W; , |
0165800393 |
from US $2.13 |
||
|
78810A
|
78810A
0143100501 SCREW2009-02-01 ~ ; W; , |
0143100501 |
from US $0.85 |
||
|
78810D
|
78810D
0165800393 BUMPER-FUEL FILLER LID2009-02-01 ~ ; W; , |
0165800393 |
from US $2.13 |
||
|
78815P
|
78815P
78836AG00A Spring-Fuel Filler2009-02-01 ~ ; W; , |
78836AG00A |
from US $1.50 |
