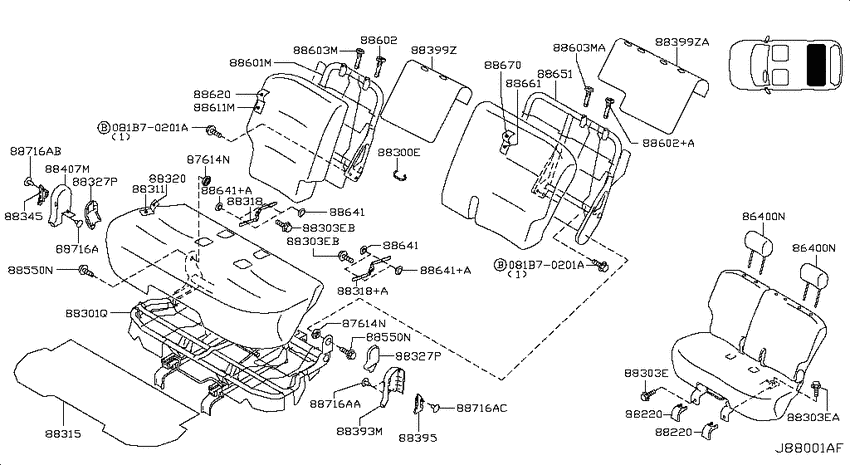

Rear seat (2009-02-01 ~ ; W/O ARMREST; W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86400N
|
86400N
86430-1FB0A Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0A |
US $162.72 |
||
|
86400N
|
86400N
86430-1FB0B Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0B |
US $162.72 |
||
|
86400N
|
86400N
86430-1FB0A Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0A |
US $162.72 |
||
|
86400N
|
86400N
86430-1FB0B Headrest Assy-Rear Seat2009-02-01 ~ ; W.(18S+18SL); , |
86430-1FB0B |
US $162.72 |
||
|
87614N
|
87614N
896143U000 ﾌﾞﾂｼﾕ2009-02-01 ~ ; W; , |
896143U000 |
US $1.73 |
||
|
87614N
|
87614N
896143U000 ﾌﾞﾂｼﾕ2009-02-01 ~ ; W; , |
896143U000 |
US $1.73 |
||
|
88220
|
88220
88541-1FG1A Cover-leg,2nd seat2009-02-01 ~ ; W; , |
88541-1FG1A |
US $8.06 |
||
|
88220
|
88220
88541-1FG1A Cover-leg,2nd seat2009-02-01 ~ ; W; , |
88541-1FG1A |
US $8.06 |
||
|
88300E
|
88300E
8690132200 Clip2009-02-01 ~ 2009-10-01; W; , |
8690132200 |
from US $0.22 |
||
|
88301Q
|
88301Q
88301-1FG1A
Frame assy-cushion,2nd seat
2009-02-01 ~ ; W; , |
88301-1FG1A |
— | ||
|
88303E
|
88303E
86899-79960 Bolt2009-02-01 ~ ; W; , |
86899-79960 |
US $3.46 |
||
|
88303E
|
88303E
868991FA0A ﾎﾞﾙﾄ2009-02-01 ~ ; W; , |
868991FA0A |
US $3.46 |
||
|
88303E
|
88303E
86899-1FA6A Bolt2009-02-01 ~ ; W; , |
86899-1FA6A |
US $3.46 |
||
|
88303EA
|
88303EA
868991FA0A ﾎﾞﾙﾄ2009-02-01 ~ ; W; , |
868991FA0A |
US $3.46 |
||
|
88303EB
|
88303EB
86899-1FA6A Bolt2009-02-01 ~ ; W; , |
86899-1FA6A |
US $3.46 |
||
|
88303EB
|
88303EB
86899-1FA6A Bolt2009-02-01 ~ ; W; , |
86899-1FA6A |
US $3.46 |
||
|
88311
|
88311
88311-1FA0A Pad-rear seat cushion2009-02-01 ~ ; W; , |
88311-1FA0A |
US $254.88 |
||
|
88315
|
88315
88326-1FA0A Silencer2009-02-01 ~ ; W; , |
88326-1FA0A |
US $17.71 |
||
|
88318
|
88318
88317-1FA0A Strap assy2009-02-01 ~ ; W; , |
88317-1FA0A |
US $6.91 |
||
|
88318
|
88318
88317-1FA0B Strap assy2009-02-01 ~ ; W.(18S+18SL); , |
88317-1FA0B |
US $6.91 |
||
|
88318
|
88318
88317-1FA1A Strap assy2009-02-01 ~ ; W; , |
88317-1FA1A |
US $6.91 |
||
|
88318
|
88318
88317-1FA1B Strap assy2009-02-01 ~ ; W.(18S+18SL); , |
88317-1FA1B |
US $6.91 |
||
|
88318+A
|
88318+A
88317-1FA1A Strap assy2009-02-01 ~ ; W; , |
88317-1FA1A |
US $6.91 |
||
|
88318+A
|
88318+A
88317-1FA1B Strap assy2009-02-01 ~ ; W.(18S+18SL); , |
88317-1FA1B |
US $6.91 |
||
|
88320
|
88320
88320-1FH1A
Trim assy-rear seat cushion
2009-02-01 ~ ; W.(18S+18SL); , |
88320-1FH1A |
— | ||
|
88320
|
88320
88320-1FH1B
Trim assy-rear seat cushion
2009-02-01 ~ ; W.(18S+18SL); , |
88320-1FH1B |
— | ||
|
88327P
|
88327P
88330-1FA0A Finisher-cushion,rear seat rh2009-02-01 ~ ; W; , |
88330-1FA0A |
US $15.70 |
||
|
88327P
|
88327P
88330-1FA0B Finisher-cushion,rear seat rh2009-02-01 ~ ; W.(18S+18SL); , |
88330-1FA0B |
US $15.70 |
||
|
88327P
|
88327P
88330-1FA0A Finisher-cushion,rear seat rh2009-02-01 ~ ; W; , |
88330-1FA0A |
US $15.70 |
||
|
88327P
|
88327P
88330-1FA0B Finisher-cushion,rear seat rh2009-02-01 ~ ; W.(18S+18SL); , |
88330-1FA0B |
US $15.70 |
||
|
88345
|
88345
88345-1FA0A Cover-rear seat lock2009-02-01 ~ ; W; , |
88345-1FA0A |
US $9.07 |
||
|
88345
|
88345
88345-1FA0B Cover-rear seat lock2009-02-01 ~ ; W.(18S+18SL); , |
88345-1FA0B |
US $9.07 |
||
|
88393M
|
88393M
88377-1FA0A Cover-rear seat bracket,lh2009-02-01 ~ ; W; , |
88377-1FA0A |
US $11.95 |
||
|
88393M
|
88393M
88377-1FA0B Cover-rear seat bracket,lh2009-02-01 ~ ; W.(18S+18SL); , |
88377-1FA0B |
US $11.95 |
||
|
88395
|
88395
88395-1FA0A Cover-rear seat lock,lh2009-02-01 ~ ; W; , |
88395-1FA0A |
US $9.07 |
||
|
88395
|
88395
88395-1FA0B Cover-rear seat lock,lh2009-02-01 ~ ; W.(18S+18SL); , |
88395-1FA0B |
US $9.07 |
||
|
88399Z
|
88399Z
88643-1FA0A Silencer2009-02-01 ~ 2009-10-01; W; , |
88643-1FA0A |
US $10.51 |
||
|
88399Z
|
88399Z
88643-1FA1A Silencer2009-10-01 ~ ; W; , |
88643-1FA1A |
US $10.51 |
||
|
88399ZA
|
88399ZA
88643-1FA1A Silencer2009-10-01 ~ ; W; , |
88643-1FA1A |
US $10.51 |
||
|
88407M
|
88407M
88327-1FA0A Cover-hinge2009-02-01 ~ ; W; , |
88327-1FA0A |
US $11.95 |
||
|
88407M
|
88407M
88327-1FA0B Cover-hinge2009-02-01 ~ ; W.(18S+18SL); , |
88327-1FA0B |
US $11.95 |
||
|
88550N
|
88550N
89612-1FA0A Cap2009-02-01 ~ 2009-10-01; W; , |
89612-1FA0A |
US $5.90 |
||
|
88550N
|
88550N
89612-1FA0A Cap2009-02-01 ~ 2009-10-01; W; , |
89612-1FA0A |
US $5.90 |
||
|
88601M
|
88601M
88601-1FA0A Frame assy-rear seat back,rh2009-02-01 ~ ; W; , |
88601-1FA0A |
US $156.96 |
||
|
88602
|
88602
87602-1FA0B Holder assy-headrest,lock2009-02-01 ~ ; W.(18S+18SL); , |
87602-1FA0B |
US $4.18 |
||
|
88602
|
88602
876029Y000 Holder-Head Rest Lock2009-02-01 ~ ; W; , |
876029Y000 |
US $4.18 |
||
|
88602
|
88602
87602-1FA0B Holder assy-headrest,lock2009-02-01 ~ ; W.(18S+18SL); , |
87602-1FA0B |
US $4.18 |
||
|
88602
|
88602
876029Y000 Holder-Head Rest Lock2009-02-01 ~ ; W; , |
876029Y000 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-1FA0B Holder assy-headrest,lock2009-02-01 ~ ; W.(18S+18SL); , |
87602-1FA0B |
US $4.18 |
||
|
88602+A
|
88602+A
876029Y000 Holder-Head Rest Lock2009-02-01 ~ ; W; , |
876029Y000 |
US $4.18 |
||
|
88603M
|
88603M
87603-1FA0B Holder assy-headrest,free2009-02-01 ~ ; W.(18S+18SL); , |
87603-1FA0B |
US $4.18 |
||
|
88603M
|
88603M
876039Y000 Holder-Head Rest Free2009-02-01 ~ ; W; , |
876039Y000 |
US $4.18 |
||
|
88603M
|
88603M
87603-1FA0B Holder assy-headrest,free2009-02-01 ~ ; W.(18S+18SL); , |
87603-1FA0B |
US $4.18 |
||
|
88603M
|
88603M
876039Y000 Holder-Head Rest Free2009-02-01 ~ ; W; , |
876039Y000 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-1FA0B Holder assy-headrest,free2009-02-01 ~ ; W.(18S+18SL); , |
87603-1FA0B |
US $4.18 |
||
|
88603MA
|
88603MA
876039Y000 Holder-Head Rest Free2009-02-01 ~ ; W; , |
876039Y000 |
US $4.18 |
||
|
88611M
|
88611M
88611-1FA0A Pad-rear seat back,rh2009-02-01 ~ ; W; , |
88611-1FA0A |
US $127.73 |
||
|
88620
|
88620
88620-1FH1A Trim assy-rear seat back,rh2009-02-01 ~ ; W.(18S+18SL); , |
88620-1FH1A |
US $280.80 |
||
|
88620
|
88620
88620-1FH1B Trim assy-rear seat back,rh2009-02-01 ~ ; W.(18S+18SL); , |
88620-1FH1B |
US $280.80 |
||
|
88641
|
88641
88641-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88641-1FA0A |
US $7.63 |
||
|
88641
|
88641
88641-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88641-1FA0B |
US $7.63 |
||
|
88641
|
88641
88691-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88691-1FA0A |
US $7.63 |
||
|
88641
|
88641
88691-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88691-1FA0B |
US $7.63 |
||
|
88641
|
88641
88641-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88641-1FA0A |
US $7.63 |
||
|
88641
|
88641
88641-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88641-1FA0B |
US $7.63 |
||
|
88641
|
88641
88691-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88691-1FA0A |
US $7.63 |
||
|
88641
|
88641
88691-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88691-1FA0B |
US $7.63 |
||
|
88641+A
|
88641+A
88691-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88691-1FA0A |
US $7.63 |
||
|
88641+A
|
88641+A
88691-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88691-1FA0B |
US $7.63 |
||
|
88641+A
|
88641+A
88691-1FA0A Lock assy-rear seat2009-02-01 ~ ; W; , |
88691-1FA0A |
US $7.63 |
||
|
88641+A
|
88641+A
88691-1FA0B Lock assy-rear seat2009-02-01 ~ ; W.(18S+18SL); , |
88691-1FA0B |
US $7.63 |
||
|
88651
|
88651
88651-1FB0A
Frame assy-rear seat back,lh
2009-02-01 ~ ; W; , |
88651-1FB0A |
— | ||
|
88661
|
88661
88661-1FB0A
Pad-rear seat back,lh
2009-02-01 ~ ; W; , |
88661-1FB0A |
— | ||
|
88670
|
88670
88670-1FH1A
Trim assy-rear seat back,lh
2009-02-01 ~ ; W.(18S+18SL); , |
88670-1FH1A |
— | ||
|
88670
|
88670
88670-1FH1B
Trim assy-rear seat back,lh
2009-02-01 ~ ; W.(18S+18SL); , |
88670-1FH1B |
— | ||
|
88716A
|
88716A
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716A
|
88716A
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716A
|
88716A
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716A
|
88716A
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716AA
|
88716AA
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716AB
|
88716AB
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
||
|
88716AC
|
88716AC
88795-1FA0A Screw2009-02-01 ~ ; W; , |
88795-1FA0A |
US $0.86 |
