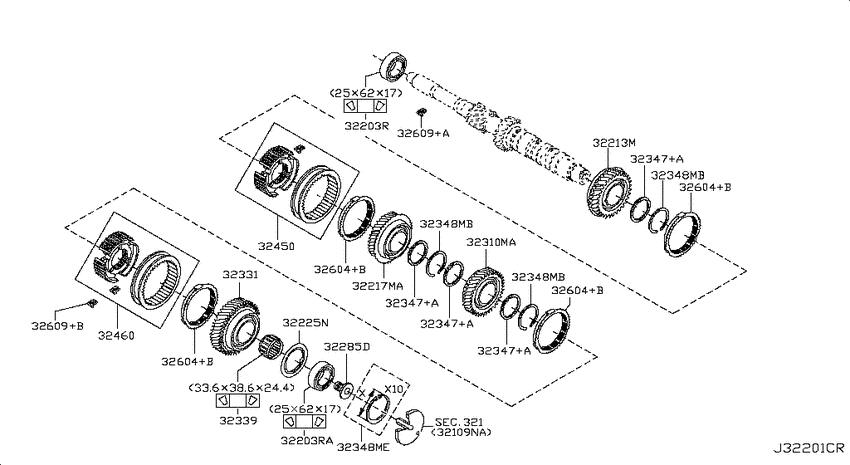

Transmission gear (2009-10-01 ~ ; INPUT SHAFT; 6MT) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
32203R
|
32203R
32275-00QAA Bearing-Input Gear2009-02-01 ~ 2009-10-01; 6MT; , |
32275-00QAA |
US $27.94 |
||
|
32203R
|
32203R
32275-00QAB Bearing-Input Gear2009-02-01 ~ 2009-10-01; 6MT; , |
32275-00QAB |
US $27.94 |
||
|
32203RA
|
32203RA
32275-00QAB Bearing-Input Gear2009-02-01 ~ 2009-10-01; 6MT; , |
32275-00QAB |
US $27.94 |
||
|
32213M
|
32213M
32260-00QAD Gear Assy-3Rd, Input Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32260-00QAD |
US $135.94 |
||
|
32217MA
|
32217MA
32270-00QAC Gear Assy-4Th, Input Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32270-00QAC |
US $165.60 |
||
|
32225N
|
32225N
32225-00QAE Shim-Adjust, Input Shaft Bearing2009-02-01 ~ 2009-10-01; 6MT; , |
32225-00QAE |
US $8.06 |
||
|
32285D
|
32285D
37332-00QAA Bolt2009-02-01 ~ 2009-10-01; 6MT; , |
37332-00QAA |
US $2.45 |
||
|
32310MA
|
32310MA
32312-00QAC Gear Assy-5Th, Input Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32312-00QAC |
US $162.72 |
||
|
32331
|
32331
32346-00QAA Gear-6Th, Input2009-02-01 ~ 2009-10-01; 6MT; , |
32346-00QAA |
US $174.24 |
||
|
32339
|
32339
32339-00QAB Bearing-Needle, Input Gear 6Th2009-02-01 ~ 2009-10-01; 6MT; , |
32339-00QAB |
US $22.03 |
||
|
32347+A
|
32347+A
32347-00QAC Spacer-Main Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32347-00QAC |
US $5.90 |
||
|
32347+A
|
32347+A
32347-00QAC Spacer-Main Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32347-00QAC |
US $5.90 |
||
|
32347+A
|
32347+A
32347-00QAC Spacer-Main Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32347-00QAC |
US $5.90 |
||
|
32347+A
|
32347+A
32347-00QAC Spacer-Main Shaft2009-02-01 ~ 2009-10-01; 6MT; , |
32347-00QAC |
US $5.90 |
||
|
32348MB
|
32348MB
32348-00QAE Ring-Snap2009-02-01 ~ 2009-10-01; 6MT; , |
32348-00QAE |
US $4.18 |
||
|
32348MB
|
32348MB
32348-00QAE Ring-Snap2009-02-01 ~ 2009-10-01; 6MT; , |
32348-00QAE |
US $4.18 |
||
|
32348MB
|
32348MB
32348-00QAE Ring-Snap2009-02-01 ~ 2009-10-01; 6MT; , |
32348-00QAE |
US $4.18 |
||
|
32348ME
|
32348ME
32348-00QAM Ring-Snap2009-02-01 ~ 2009-10-01; 6MT; X=1.50-->1.93 |
32348-00QAM |
US $4.18 |
||
|
32348ME
|
32348ME
32348-00QAN Ring-Snap2009-02-01 ~ 2009-10-01; 6MT; X=1.95-->2.30 |
32348-00QAN |
US $4.18 |
||
|
32450
|
32450
32610-00QAP Hub Compl-3Rd & 4Th2009-02-01 ~ 2009-10-01; 6MT; , |
32610-00QAP |
US $144 |
||
|
32460
|
32460
32610-00QAP Hub Compl-3Rd & 4Th2009-02-01 ~ 2009-10-01; 6MT; , |
32610-00QAP |
US $144 |
||
|
32604+B
|
32604+B
32604-00QAJ Ring-Baulk2009-02-01 ~ 2009-10-01; 6MT; , |
32604-00QAJ |
US $48.67 |
||
|
32604+B
|
32604+B
32604-00QAJ Ring-Baulk2009-02-01 ~ 2009-10-01; 6MT; , |
32604-00QAJ |
US $48.67 |
||
|
32604+B
|
32604+B
32604-00QAJ Ring-Baulk2009-02-01 ~ 2009-10-01; 6MT; , |
32604-00QAJ |
US $48.67 |
||
|
32604+B
|
32604+B
32604-00QAJ Ring-Baulk2009-02-01 ~ 2009-10-01; 6MT; , |
32604-00QAJ |
US $48.67 |
||
|
32609+A
|
32609+A
32609-00QAB Insert-Shifting2009-02-01 ~ 2009-10-01; 6MT; , |
32609-00QAB |
US $2.45 |
||
|
32609+B
|
32609+B
32609-00QAB Insert-Shifting2009-02-01 ~ 2009-10-01; 6MT; , |
32609-00QAB |
US $2.45 |
||
