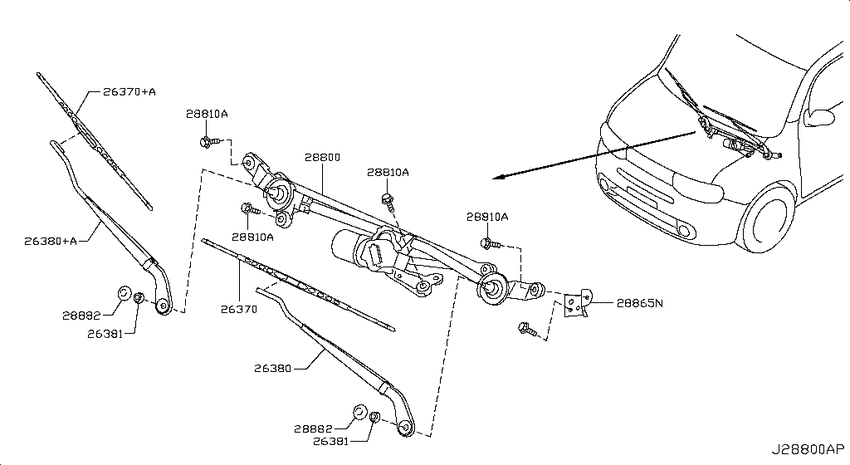

Windshield wiper (2009-02-01 ~ ; W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26370
|
26370
28890-1FC0A
Blade Assy-Windshield Wiper
2009-02-01 ~ 2009-10-01; W; DRIVER |
28890-1FC0A |
— | ||
|
26370
|
26370
28890-1FC2A
Blade Assy-Windshield Wiper
2009-10-01 ~ ; W; DRIVER |
28890-1FC2A |
— | ||
|
26370
|
26370
28890-1FC1A
Blade Assy-Windshield Wiper
2009-02-01 ~ 2009-10-01; W; ASSIST |
28890-1FC1A |
— | ||
|
26370
|
26370
28890-1FC3A
Blade Assy-Windshield Wiper
2009-10-01 ~ ; W; ASSIST |
28890-1FC3A |
— | ||
|
26370+A
|
26370+A
28890-1FC1A
Blade Assy-Windshield Wiper
2009-02-01 ~ 2009-10-01; W; ASSIST |
28890-1FC1A |
— | ||
|
26370+A
|
26370+A
28890-1FC3A
Blade Assy-Windshield Wiper
2009-10-01 ~ ; W; ASSIST |
28890-1FC3A |
— | ||
|
26380
|
26380
28881-1FE0A
Arm Assy-Windshield Wiper
2009-02-01 ~ ; W; DRIVER |
28881-1FE0A |
— | ||
|
26380
|
26380
28886-1FE0A
Arm Assy-Windshield Wiper
2009-02-01 ~ ; W; ASSIST |
28886-1FE0A |
— | ||
|
26380+A
|
26380+A
28886-1FE0A
Arm Assy-Windshield Wiper
2009-02-01 ~ ; W; ASSIST |
28886-1FE0A |
— | ||
|
26381
|
26381
2888950J1A Nut-Wiper Arm2009-02-01 ~ ; W; , |
2888950J1A |
from US $1.91 |
||
|
26381
|
26381
2888950J1A Nut-Wiper Arm2009-02-01 ~ ; W; , |
2888950J1A |
from US $1.91 |
||
|
28800
|
28800
28800-1FC0A
Drive Assy-Windshield Wiper
2009-02-01 ~ ; W; , |
28800-1FC0A |
— | ||
|
28810A
|
28810A
01121N6241 Screw2009-02-01 ~ ; W; , |
01121N6241 |
from US $1.78 |
||
|
28810A
|
28810A
01121N6241 Screw2009-02-01 ~ ; W; , |
01121N6241 |
from US $1.78 |
||
|
28810A
|
28810A
01121N6241 Screw2009-02-01 ~ ; W; , |
01121N6241 |
from US $1.78 |
||
|
28810A
|
28810A
01121N6241 Screw2009-02-01 ~ ; W; , |
01121N6241 |
from US $1.78 |
||
|
28865N
|
28865N
28865-1FC1A
Bracket-Wiper Pivot
2009-02-01 ~ ; W; , |
28865-1FC1A |
— | ||
| replacement | |||||
|
28865N
|
28865N
28865-1FC0A
Bracket-Wiper Pivot
2009-02-01 ~ ; W; , |
28865-1FC0A |
— | ||
|
28882
|
28882
28882AU300 Cover-Wiper Arm2009-02-01 ~ ; W; , |
28882AU300 |
from US $3.46 |
||
|
28882
|
28882
28882AU300 Cover-Wiper Arm2009-02-01 ~ ; W; , |
28882AU300 |
from US $3.46 |
||
