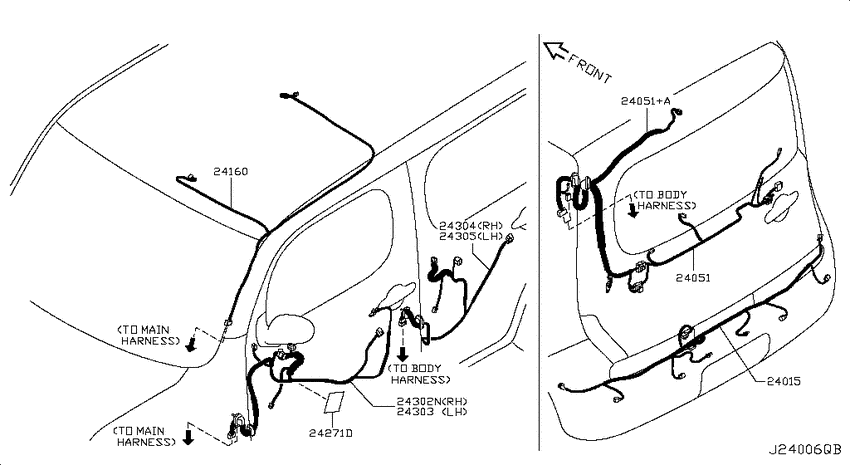

Wiring (2009-02-01 ~ ; DOOR; W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24015
|
24015
24015-1FC0A
Harness-Tail
2009-02-01 ~ ; W; , |
24015-1FC0A |
— | ||
|
24015
|
24015
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24015
|
24015
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24051
|
24051
24051-1FC0A
Harness-Back Door
2009-02-01 ~ 2009-10-01; W; , |
24051-1FC0A |
— | ||
|
24051
|
24051
24051-1FN0A
Harness-Back Door
2009-10-01 ~ ; W; , |
24051-1FN0A |
— | ||
|
24051
|
24051
24052-1FC0A
Harness-Back Door
2009-02-01 ~ 2009-10-01; W; , |
24052-1FC0A |
— | ||
|
24051
|
24051
24052-1FN0A
Harness-Back Door
2009-10-01 ~ ; W; , |
24052-1FN0A |
— | ||
|
24051+A
|
24051+A
24052-1FC0A
Harness-Back Door
2009-02-01 ~ 2009-10-01; W; , |
24052-1FC0A |
— | ||
|
24051+A
|
24051+A
24052-1FN0A
Harness-Back Door
2009-10-01 ~ ; W; , |
24052-1FN0A |
— | ||
|
24160
|
24160
24060-1FC0A
Harness-Room Lamp
2009-02-01 ~ 2009-10-01; W.18S; , |
24060-1FC0A |
— | ||
|
24160
|
24160
24060-1FC0E
Harness-Room Lamp
2009-10-01 ~ ; W.(18S+18SL); , |
24060-1FC0E |
— | ||
|
24302N
|
24302N
24124-1FC0A
Harness Assy-Door, Front
2009-02-01 ~ ; W; , |
24124-1FC0A |
— | ||
|
24303
|
24303
24125-1FC0A
Harness-Front Door, Lh
2009-02-01 ~ ; W; , |
24125-1FC0A |
— | ||
|
24304
|
24304
24126-1FC0A Harness Assy-Door, Rear2009-02-01 ~ ; W; , |
24126-1FC0A |
US $67.39 |
||
|
24305
|
24305
24127-1FC0A Harness Assy-Door, Rear Lh2009-02-01 ~ ; W; , |
24127-1FC0A |
US $204.48 |
