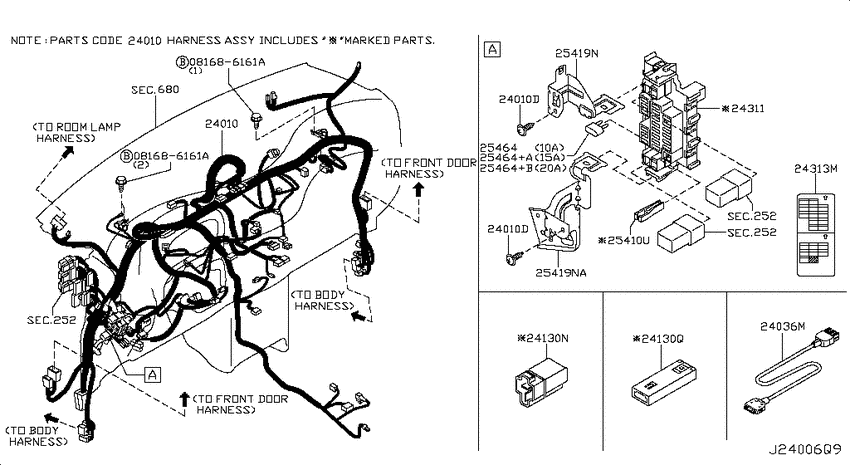

Wiring (2009-02-01 ~ ; FITTING(BODY); W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
24010
|
24010
24010-1FC1A
Harness-Main
2009-02-01 ~ 2009-10-01; W.18S.6MT; , |
24010-1FC1A |
— | ||
|
24010
|
24010
24010-1FN1A
Harness-Main
2009-10-01 ~ ; W.18S.6MT; , |
24010-1FN1A |
— | ||
| replacement | |||||
|
24010
|
24010
24010-1FN1B
Harness-Main
2009-10-01 ~ ; W.18S.6MT; , |
24010-1FN1B |
— | ||
|
24010
|
24010
0145100581 SCREW2009-02-01 ~ ; W; , |
0145100581 |
from US $1.67 |
||
|
24010
|
24010
24010-1FC1A
Harness-Main
2009-02-01 ~ 2009-10-01; W.18S.6MT; , |
24010-1FC1A |
— | ||
|
24010
|
24010
24010-1FN1A
Harness-Main
2009-10-01 ~ ; W.18S.6MT; , |
24010-1FN1A |
— | ||
| replacement | |||||
|
24010
|
24010
24010-1FN1B
Harness-Main
2009-10-01 ~ ; W.18S.6MT; , |
24010-1FN1B |
— | ||
|
24010
|
24010
0145100581 SCREW2009-02-01 ~ ; W; , |
0145100581 |
from US $1.67 |
||
|
24010D
|
24010D
0145100581 SCREW2009-02-01 ~ ; W; , |
0145100581 |
from US $1.67 |
||
|
24010D
|
24010D
0145100581 SCREW2009-02-01 ~ ; W; , |
0145100581 |
from US $1.67 |
||
|
24036M
|
24036M
284H2-ZT50A
Harness-Auxiliary Audio Sytem
2009-10-01 ~ ; W.(18S+18SL); , |
284H2-ZT50A |
— | ||
|
24130N
|
24130N
24335-89900 Diode2009-02-01 ~ ; W; , |
24335-89900 |
US $16.34 |
||
|
24130Q
|
24130Q
24335C9900 Diode2009-02-01 ~ ; W; , |
24335C9900 |
US $17.60 |
||
|
24311
|
24311
24311ED000 Block-Fuse2009-02-01 ~ ; W; , |
24311ED000 |
US $73.30 |
||
|
24313M
|
24313M
24313-1FC0A Label-Fuse Block2009-02-01 ~ 2009-10-01; W; , |
24313-1FC0A |
US $8.93 |
||
|
24313M
|
24313M
24313-1FN0A
Label-Fuse Block
2009-10-01 ~ ; W; , |
24313-1FN0A |
— | ||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
25410U
|
25410U
24321-79901 Puller-Fuse2009-02-01 ~ ; W; , |
24321-79901 |
US $3.46 |
||
|
25419N
|
25419N
24317-1FA0A Bracket-Fuse Block2009-02-01 ~ ; W; , |
24317-1FA0A |
US $5.62 |
||
|
25419N
|
25419N
24317-1FC0A
Bracket-Fuse Block
2009-02-01 ~ ; W; , |
24317-1FC0A |
— | ||
|
25419NA
|
25419NA
24317-1FC0A
Bracket-Fuse Block
2009-02-01 ~ ; W; , |
24317-1FC0A |
— | ||
|
25464
|
25464
24319C9910 Fuse2009-10-01 ~ ; W.18S.6MT +W.18SL; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse2009-10-01 ~ ; W; 15A |
24319C9915 |
US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse2009-10-01 ~ ; W; 15A |
24319C9915 |
US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse2009-02-01 ~ ; W; 20A |
24319C9920 |
from US $0.86 |
||
|
25464+A
|
25464+A
24319C9915 Fuse2009-10-01 ~ ; W; 15A |
24319C9915 |
US $0.86 |
||
|
25464+B
|
25464+B
24319C9920 Fuse2009-02-01 ~ ; W; 20A |
24319C9920 |
from US $0.86 |
||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
|
680
|
Instrument panel, pad & cluster lid
680
|
||||
