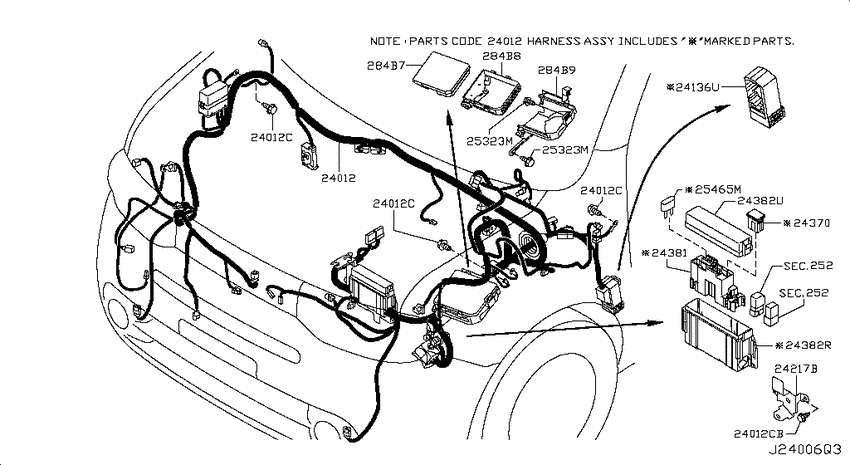

Wiring (2009-02-01 ~ 2009-10-01; ENGINE ROOM; W) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-1FC1C
Harness-Engine Room
2009-02-01 ~ 2009-10-01; *W.18S.6MT; , |
24012-1FC1C |
— | ||
|
24012
|
24012
24012-1FC1D
Harness-Engine Room
2009-02-01 ~ 2009-10-01; W.18S.6MT; , |
24012-1FC1D |
— | ||
|
24012
|
24012
24012-1FN0E
Harness-Engine Room
2009-10-01 ~ ; W.18S.6MT; , |
24012-1FN0E |
— | ||
|
24012
|
24012
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24012
|
24012
24012-1FC1C
Harness-Engine Room
2009-02-01 ~ 2009-10-01; *W.18S.6MT; , |
24012-1FC1C |
— | ||
|
24012
|
24012
24012-1FC1D
Harness-Engine Room
2009-02-01 ~ 2009-10-01; W.18S.6MT; , |
24012-1FC1D |
— | ||
|
24012
|
24012
24012-1FN0E
Harness-Engine Room
2009-10-01 ~ ; W.18S.6MT; , |
24012-1FN0E |
— | ||
|
24012
|
24012
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24012C
|
24012C
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24012C
|
24012C
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24012C
|
24012C
0145600411 SCREW2009-02-01 ~ ; W; , |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24012CB
|
24012CB
01125N6011 Bolt2009-02-01 ~ 2009-10-01; W; , |
01125N6011 |
US $2.21 |
||
|
24136U
|
24136U
24236-1FA0A Bracket Assy-Connector2009-02-01 ~ ; W; , |
24236-1FA0A |
US $12.10 |
||
|
24217B
|
24217B
24239-1FA0A Bracket-Harness Clip2009-02-01 ~ ; W; , |
24239-1FA0A |
US $5.04 |
||
|
24217B
|
24217B
24239-EM05A Bracket-Harness Clip2009-02-01 ~ ; W; , |
24239-EM05A |
US $7.63 |
||
|
24370
|
24370
24370C9900 Connector Assy-Fusible Link2009-02-01 ~ ; W; 40A+40A+40A |
24370C9900 |
from US $13.40 |
||
|
24370
|
24370
24370C9904 Connector Assy-Fusible Link2009-02-01 ~ ; W; 60A+30A+30A |
24370C9904 |
from US $13.40 |
||
|
24370
|
24370
24370C9922 Connector Assy-Fusible Link2009-02-01 ~ ; W; 40A |
24370C9922 |
US $13.10 |
||
|
24381
|
24381
24381C9900 Housing-Fusible Link Holder2009-02-01 ~ ; W; , |
24381C9900 |
US $46.57 |
||
|
24382R
|
24382R
24382EW70B Cover-Fusible Link Holder2009-02-01 ~ ; W; , |
24382EW70B |
from US $11.09 |
||
|
24382U
|
24382U
24382-1FC0A Cover-Fusible Link Holder2009-02-01 ~ ; W; , |
24382-1FC0A |
US $11.09 |
||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
252
|
Relay
252
|
||||
|
25323M
|
25323M
01125N6021 Bolt2009-02-01 ~ ; W; , |
01125N6021 |
US $1.61 |
||
|
25323M
|
25323M
01125N6021 Bolt2009-02-01 ~ ; W; , |
01125N6021 |
US $1.61 |
||
|
25465M
|
25465M
24319C9910 Fuse2009-02-01 ~ ; W; 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse2009-02-01 ~ ; W; 20A |
24319C9920 |
from US $0.86 |
||
|
284B7
|
284B7
284B7-1FC0B
Controller Unit-Ipdm Engine Room
2009-02-01 ~ ; W; , |
284B7-1FC0B |
— | ||
|
284B8
|
284B8
284B8AX000 Cover-Usm2009-02-01 ~ ; W; , |
284B8AX000 |
US $17.29 |
||
|
284B9
|
284B9
284B9EW000 Cover-Usm2009-02-01 ~ ; W; , |
284B9EW000 |
US $26.25 |
||
