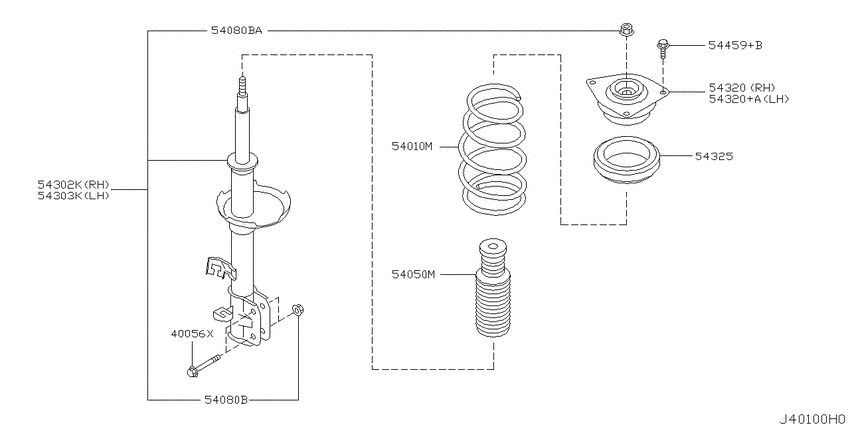

Front suspension (2003-09-01 ~ 2005-05-01; ストラット & スプリング; CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2004 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- AX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40056X
|
40056X
40056-AX000 Bolt-Knuckle Arm0309--01 ~ 0505--01; CR14DE |
40056-AX000 |
US $5.04 |
||
|
54010M
|
54010M
540103U800 Spring-Front0309--01 ~ 0505--01; CR14DE |
540103U800 |
US $75.74 |
||
|
54050M
|
54050M
54050AZ100 Bumper Assy-Bound0309--01 ~ 0505--01; CR14DE |
54050AZ100 |
from US $23.42 |
||
|
54080B
|
54080B
0122500072 NUT0309--01 ~ 0505--01; CR14DE |
0122500072 |
US $1.04 |
||
|
54080B
|
54080B
0122300301 NUT0309--01 ~ 0505--01; CR14DE |
0122300301 |
from US $2 |
||
|
54080BA
|
54080BA
0122300301 NUT0309--01 ~ 0505--01; CR14DE |
0122300301 |
from US $2 |
||
|
54302K
|
54302K
54302-3U825 Strut Kit-Front Suspension, Rh0309--01 ~ 0505--01; CR14DE; ｺｸｲﾝ 54302-3U801 |
54302-3U825 |
US $277.92 |
||
|
54303K
|
54303K
54303-3U825 Strut Kit-Front Suspension, Lh0309--01 ~ 0505--01; CR14DE; ｺｸｲﾝNO 54303-3U801 |
54303-3U825 |
US $277.92 |
||
|
54320
|
54320
54320AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; CR14DE |
54320AX001 |
— | ||
| replacement | |||||
|
54320
|
54320
54320-AX00A Insulator-strut0311--01 ~ 0505--01; CR14DE |
54320-AX00A |
US $74.30 |
||
|
54320
|
54320
54321AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; CR14DE |
54321AX001 |
— | ||
| replacement | |||||
|
54320
|
54320
54321-AX00A Insulator-strut0311--01 ~ 0505--01; CR14DE |
54321-AX00A |
US $74.30 |
||
|
54320+A
|
54320+A
54321AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; CR14DE |
54321AX001 |
— | ||
| replacement | |||||
|
54320+A
|
54320+A
54321-AX00A Insulator-strut0311--01 ~ 0505--01; CR14DE |
54321-AX00A |
US $74.30 |
||
|
54325
|
54325
54325AX000 Bearing-Strut Mounting0309--01 ~ 0505--01; CR14DE |
54325AX000 |
US $65.81 |
||
|
54459+B
|
54459+B
54459-AX005 Bolt0309--01 ~ 0505--01; CR14DE |
54459-AX005 |
US $4.18 |
||
