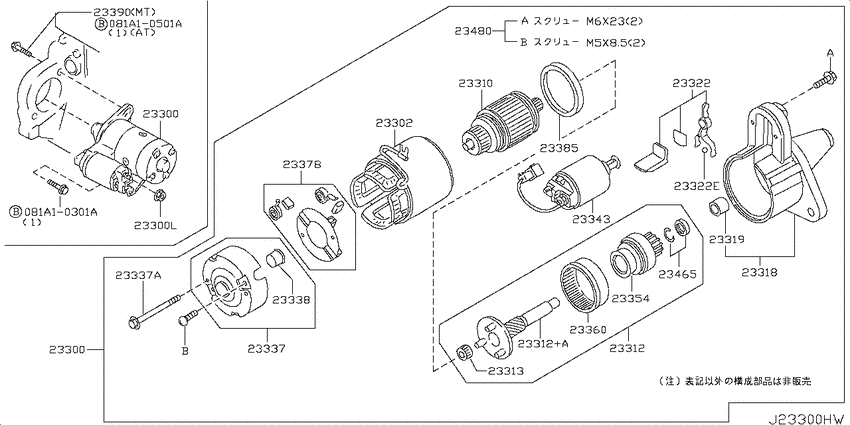

Starter motor (2003-09-01 ~ 2005-05-01; 三菱; *CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2004 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- AX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10501A
|
081A10501A
081A10501A ﾎﾞﾙﾄ |
081A10501A |
US $2.34 |
||
|
23300
|
23300
23300-3U500 Motor Assy-Starter0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23300-3U500 |
US $1,193.69 |
||
|
23300
|
23300
23300-AX002 Motor Assy-Starter0312--01 ~ 0412--01; CR14DE; ｳﾞｧﾚｵ |
23300-AX002 |
US $634.37 |
||
|
23300
|
23300
23300-AX00A Motor Assy-Starter0412--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23300-AX00A |
US $831.19 |
||
|
23300
|
23300
0122100381 NUT0309--01 ~ 0505--01; CR14DE |
0122100381 |
from US $4.24 |
||
|
23300
|
23300
23300-3U500 Motor Assy-Starter0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23300-3U500 |
US $1,193.69 |
||
|
23300
|
23300
23300-AX002 Motor Assy-Starter0312--01 ~ 0412--01; CR14DE; ｳﾞｧﾚｵ |
23300-AX002 |
US $634.37 |
||
|
23300
|
23300
23300-AX00A Motor Assy-Starter0412--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23300-AX00A |
US $831.19 |
||
|
23300
|
23300
0122100381 NUT0309--01 ~ 0505--01; CR14DE |
0122100381 |
from US $4.24 |
||
|
23300L
|
23300L
0122100381 NUT0309--01 ~ 0505--01; CR14DE |
0122100381 |
from US $4.24 |
||
|
23302
|
23302
23302-AA110 Yoke Assy0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23302-AA110 |
US $207.36 |
||
|
23310
|
23310
23310-0M210 Armature Assy0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23310-0M210 |
US $403.56 |
||
|
23312
|
23312
23312-3U500 Pinion Assy0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23312-3U500 |
US $361.08 |
||
|
23312
|
23312
23312-9E011 PINION ASSY0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23312-9E011 |
US $95.90 |
||
|
23312+A
|
23312+A
23312-9E011 PINION ASSY0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23312-9E011 |
US $95.90 |
||
|
23313
|
23313
23361-42L70 Planet Gear0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-3U500 Case Assy-Gear0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23318-3U500 |
US $167.04 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
23322-41B16 Lever Set-Shift0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23322-41B16 |
US $27.79 |
||
|
23322
|
23322
23322AX000 Lever Set-Shift0312--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23322AX000 |
US $38.74 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $0.93 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $0.93 |
||
|
23337
|
23337
23337-41B79 Cover Assy-Rear0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23337-41B79 |
US $31.82 |
||
|
23337
|
23337
23340-0M210 Bolt-Through0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23340-0M210 |
US $4.03 |
||
|
23337A
|
23337A
23340-0M210 Bolt-Through0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23340-0M210 |
US $4.03 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23338-01N10 |
US $9.94 |
||
|
23343
|
23343
23343-3U500 Switch Assy-Magnetic0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23343-3U500 |
US $129.02 |
||
|
23343
|
23343
23343AX000 Switch Assy-Magnetic0312--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23343AX000 |
US $129.02 |
||
|
23354
|
23354
23354-3U500 Clutch Assy0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23354-3U500 |
US $224.64 |
||
|
23354
|
23354
23354-AX002 Clutch Assy0312--01 ~ 0412--01; CR14DE; ｳﾞｧﾚｵ |
23354-AX002 |
US $359.66 |
||
|
23354
|
23354
23354-AX00A Clutch Assy0412--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23354-AX00A |
US $359.66 |
||
|
23360
|
23360
23360-0M210 Gear & Shaft Set0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23360-0M210 |
US $27.94 |
||
|
23378
|
23378
23378-3U500 Holder Assy-Brush0309--01 ~ 0505--01; *CR14DE.MCVT; ﾐﾂﾋﾞｼ |
23378-3U500 |
US $54.43 |
||
|
23378
|
23378
23378-AX000 Holder Assy-Brush0312--01 ~ 0505--01; CR14DE; ｳﾞｧﾚｵ |
23378-AX000 |
from US $33.19 |
||
|
23385
|
23385
23385-50Y12 Packing0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23385-50Y12 |
US $8.06 |
||
|
23390
|
23390
23390-3U500 Bolt0309--01 ~ 0505--01; CR14DE.MCVT |
23390-3U500 |
US $3.74 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set0309--01 ~ 0505--01; *CR14DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
