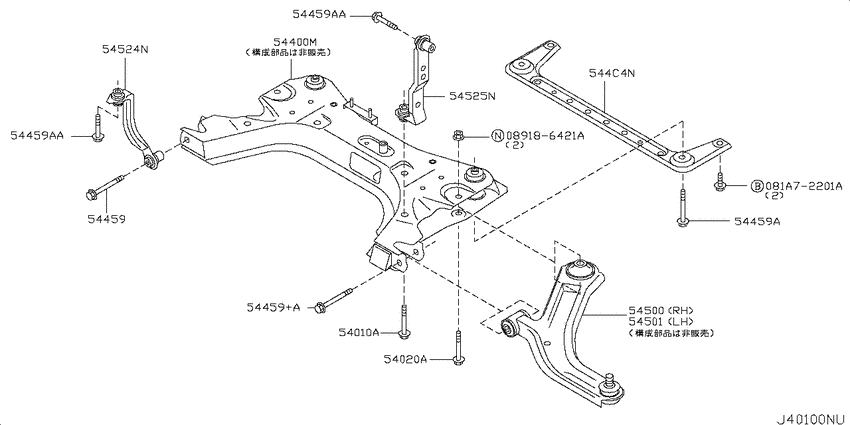

Front suspension (2005-05-01 ~ 2006-12-01; メンバー & リンク; HR15DE.AT) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 4WD
- transmission
- AT
- grade
- 15S/FOUR
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A72201A
|
081A72201A
081A72201A
BOLTFLANGEHEX
|
081A72201A |
— | ||
|
089186421A
|
089186421A
089186421A NUTSLOCK |
089186421A |
from US $0.61 |
||
|
54010A
|
54010A
0112501041 BOLT0505--01 ~ 0612--01; HR15DE.AT |
0112501041 |
from US $7.34 |
||
|
54020A
|
54020A
54459-ED00A Bolt0505--01 ~ 0611--01; HR15DE.AT |
54459-ED00A |
US $7.34 |
||
|
54020A
|
54020A
54459ED04A Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459ED04A |
US $8.45 |
||
|
54400M
|
54400M
54400-EW000 Member Compl-Front Suspension0505--01 ~ 0612--01; HR15DE.AT |
54400-EW000 |
US $397.90 |
||
|
54459
|
54459
54459-AX024 Bolt0505--01 ~ 0611--01; HR15DE.AT |
54459-AX024 |
US $4.18 |
||
|
54459
|
54459
54459AX02E Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459AX02E |
from US $1.91 |
||
|
54459
|
54459
54459-AX002 Bolt0505--01 ~ 0612--01; HR15DE.AT |
54459-AX002 |
US $2.45 |
||
|
54459
|
54459
54459AX00C Bolt0701--01 ~ ; HR15DE.AT |
54459AX00C |
from US $1.31 |
||
|
54459
|
54459
54459-AX005 Bolt0505--01 ~ 0612--01; HR15DE.AT |
54459-AX005 |
US $4.18 |
||
|
54459
|
54459
54459EN00A Bolt0612--01 ~ ; HR15DE.AT |
54459EN00A |
from US $4.90 |
||
|
54459
|
54459
54459AX017 Bolt0505--01 ~ 0612--01; HR15DE.AT |
54459AX017 |
US $3.46 |
||
|
54459
|
54459
54459AX023 Bolt0505--01 ~ 0601--01; HR15DE.AT |
54459AX023 |
US $3.46 |
||
|
54459
|
54459
54459-EE90A Bolt0601--01 ~ 0611--01; HR15DE.AT |
54459-EE90A |
US $3.46 |
||
|
54459
|
54459
54459EE94A Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459EE94A |
from US $1.65 |
||
|
54459+A
|
54459+A
54459-AX002 Bolt0505--01 ~ 0612--01; HR15DE.AT |
54459-AX002 |
US $2.45 |
||
|
54459+A
|
54459+A
54459AX00C Bolt0701--01 ~ ; HR15DE.AT |
54459AX00C |
from US $1.31 |
||
|
54459A
|
54459A
54459AX017 Bolt0505--01 ~ 0612--01; HR15DE.AT |
54459AX017 |
US $3.46 |
||
|
54459A
|
54459A
54459AX023 Bolt0505--01 ~ 0601--01; HR15DE.AT |
54459AX023 |
US $3.46 |
||
|
54459A
|
54459A
54459-EE90A Bolt0601--01 ~ 0611--01; HR15DE.AT |
54459-EE90A |
US $3.46 |
||
|
54459A
|
54459A
54459EE94A Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459EE94A |
from US $1.65 |
||
|
54459AA
|
54459AA
54459AX023 Bolt0505--01 ~ 0601--01; HR15DE.AT |
54459AX023 |
US $3.46 |
||
|
54459AA
|
54459AA
54459-EE90A Bolt0601--01 ~ 0611--01; HR15DE.AT |
54459-EE90A |
US $3.46 |
||
|
54459AA
|
54459AA
54459EE94A Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459EE94A |
from US $1.65 |
||
|
54459AA
|
54459AA
54459AX023 Bolt0505--01 ~ 0601--01; HR15DE.AT |
54459AX023 |
US $3.46 |
||
|
54459AA
|
54459AA
54459-EE90A Bolt0601--01 ~ 0611--01; HR15DE.AT |
54459-EE90A |
US $3.46 |
||
|
54459AA
|
54459AA
54459EE94A Bolt0611--01 ~ 0612--01; HR15DE.AT |
54459EE94A |
from US $1.65 |
||
|
544C4N
|
544C4N
544C4AX001 Stay Assy-Front Suspension Member0505--01 ~ 0612--01; HR15DE.AT |
544C4AX001 |
US $33.39 |
||
|
54500
|
54500
54500-ED00A Link Compl-Transverse, Rh0505--01 ~ 0612--01; HR15DE.AT |
54500-ED00A |
US $188.64 |
||
|
54501
|
54501
54501-ED00A Link Compl-Transverse, Lh0505--01 ~ 0612--01; HR15DE.AT |
54501-ED00A |
US $188.64 |
||
|
54524N
|
54524N
54524AX001 Link Compl-Front Suspension, Upper Rh0505--01 ~ 0612--01; HR15DE.AT |
54524AX001 |
from US $63.64 |
||
|
54525N
|
54525N
54525ED001 Link Compl-Front Suspension, Upper Lh0505--01 ~ 0612--01; HR15DE.AT |
54525ED001 |
from US $62.72 |
