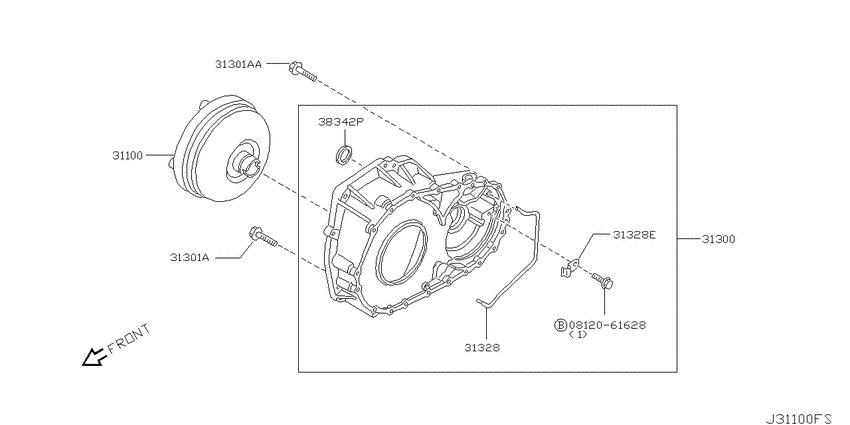

Torque converter,housing & case (2006-12-01 ~ ; コンバーター&ハウジング; AT) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 4WD
- transmission
- AT
- grade
- 15S/FOUR
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 BOLT-FRONT COVER |
0812061628 |
from US $0.57 |
||
|
31100
|
31100
31100-3AX12 Converter Assy-Torque0505--01 ~ 0612--01; HR15DE.AT |
31100-3AX12 |
US $1,203.60 |
||
|
31300
|
31300
31300-31X18 Housing Assy-Converter0505--01 ~ 0612--01; HR15DE.AT |
31300-31X18 |
US $475.78 |
||
|
31301A
|
31301A
31377-32X04 Bolt0505--01 ~ 0612--01; AT |
31377-32X04 |
US $2.45 |
||
|
31301A
|
31301A
31377-32X00 Bolt0505--01 ~ 0612--01; AT |
31377-32X00 |
US $2.45 |
||
|
31301AA
|
31301AA
31377-32X00 Bolt0505--01 ~ 0612--01; AT |
31377-32X00 |
US $2.45 |
||
|
31328
|
31328
31328-31X01 Tube-Lubricant0505--01 ~ 0612--01; AT |
31328-31X01 |
US $14.40 |
||
|
31328
|
31328
31376-1XA00 Clip0505--01 ~ 0612--01; AT |
31376-1XA00 |
US $2.45 |
||
|
31328E
|
31328E
31376-1XA00 Clip0505--01 ~ 0612--01; AT |
31376-1XA00 |
US $2.45 |
||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING0505--01 ~ 0612--01; AT |
383428E000 |
from US $4.23 |
