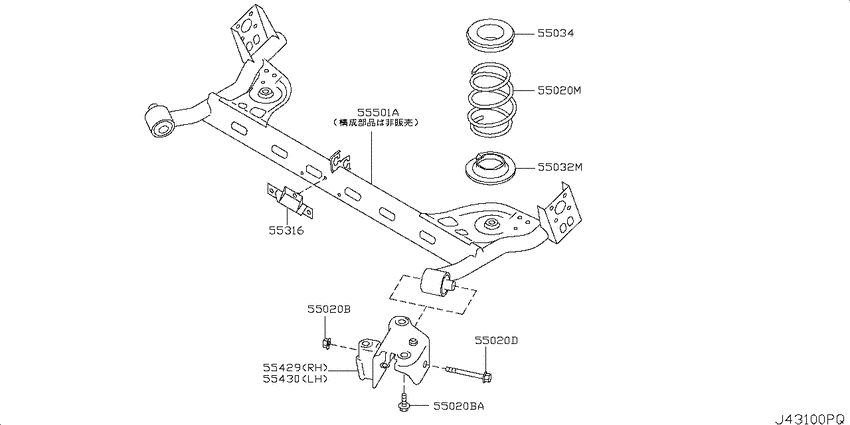

Rear suspension (2005-05-01 ~ ; ビーム & スプリング; CR14DE +HR15DE.MCVT) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 15E
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55020B
|
55020B
0122500072 NUT0505--01 ~ ; CR14DE +HR15DE.MCVT |
0122500072 |
US $1.04 |
||
|
55020B
|
55020B
01125-N0031 Bolt0505--01 ~ ; CR14DE +HR15DE.MCVT |
01125-N0031 |
from US $2.35 |
||
|
55020BA
|
55020BA
01125-N0031 Bolt0505--01 ~ ; CR14DE +HR15DE.MCVT |
01125-N0031 |
from US $2.35 |
||
|
55020D
|
55020D
55222-AX001 Bolt0505--01 ~ 0612--01; CR14DE +HR15DE.MCVT |
55222-AX001 |
US $2.45 |
||
|
55020D
|
55020D
55222AX00B Bolt0612--01 ~ ; CR14DE +HR15DE.MCVT |
55222AX00B |
US $2.45 |
||
|
55020M
|
55020M
55020-3U800 Spring-Rear Suspension0505--01 ~ ; CR14DE +HR15DE.MCVT |
55020-3U800 |
US $100.37 |
||
|
55032M
|
55032M
55032AX003 Seat-Rubber, Rear Spring Lower0505--01 ~ ; CR14DE +HR15DE.MCVT |
55032AX003 |
from US $9.56 |
||
|
55034
|
55034
55034AX001 Seat-Rubber, Rear Spring Upper0505--01 ~ ; CR14DE +HR15DE.MCVT |
55034AX001 |
from US $12.20 |
||
|
55316
|
55316
55316-3U801 Protector-Brake Tube0505--01 ~ 0608--01; CR14DE +HR15DE.MCVT |
55316-3U801 |
US $10.08 |
||
|
55316
|
55316
55316ED00A Protector-Brake Tube0608--01 ~ ; CR14DE +HR15DE.MCVT |
55316ED00A |
US $10.08 |
||
|
55429
|
55429
554294V00A Bracket Assy-Rear Suspension Arm, Rh0505--01 ~ ; CR14DE +HR15DE.MCVT |
554294V00A |
US $52.85 |
||
|
55430
|
55430
554303U001 Bracket Assy-Rear Suspension Arm, Lh0505--01 ~ ; CR14DE +HR15DE.MCVT |
554303U001 |
US $52.85 |
||
|
55501A
|
55501A
55501-4V10A Beam Compl-Rear Suspension0505--01 ~ ; CR14DE +HR15DE.MCVT |
55501-4V10A |
US $696.67 |
