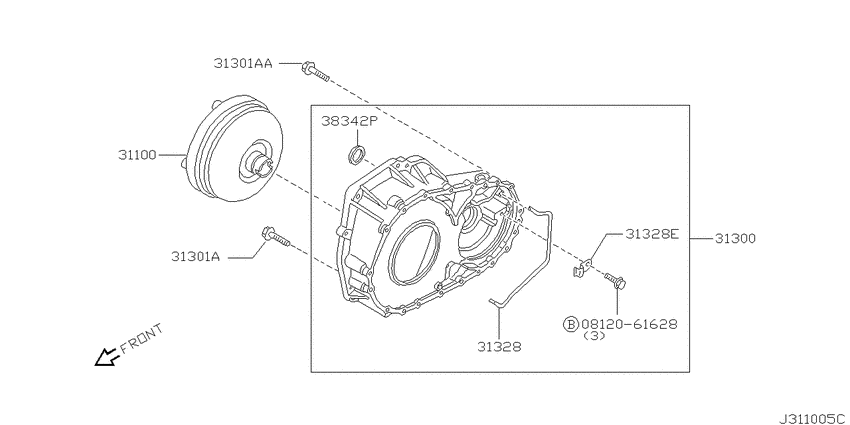

Torque converter,housing & case (1999-11-01 ~ ; コンバーター ハウジング; AT.F4) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 BOLT-FRONT COVER |
0812061628 |
from US $0.57 |
||
|
31100
|
31100
31100-31X75 Converter Assy-Torque9911--01 ~ ; AT.F4 |
31100-31X75 |
US $1,203.60 |
||
|
31300
|
31300
31300-31X08 Housing Assy-Converter9911--01 ~ ; AT.F4 |
31300-31X08 |
US $475.78 |
||
|
31301A
|
31301A
31377-31X11 Bolt9911--01 ~ 0109--01; AT.F4 |
31377-31X11 |
US $2.45 |
||
|
31301A
|
31301A
31377-32X03 Bolt0109--01 ~ ; AT.F4 |
31377-32X03 |
US $2.45 |
||
|
31301A
|
31301A
31377-31X03 Bolt9911--01 ~ 0012--01; AT.F4 |
31377-31X03 |
US $2.45 |
||
|
31301A
|
31301A
31377-32X00 Bolt0012--01 ~ ; AT.F4 |
31377-32X00 |
US $2.45 |
||
|
31301AA
|
31301AA
31377-31X03 Bolt9911--01 ~ 0012--01; AT.F4 |
31377-31X03 |
US $2.45 |
||
|
31301AA
|
31301AA
31377-32X00 Bolt0012--01 ~ ; AT.F4 |
31377-32X00 |
US $2.45 |
||
|
31328
|
31328
31328-31X01 Tube-Lubricant9911--01 ~ ; AT.F4 |
31328-31X01 |
US $14.40 |
||
|
31328
|
31328
31376-31X00 Clip9911--01 ~ ; AT.F4 |
31376-31X00 |
US $2.45 |
||
|
31328E
|
31328E
31376-31X00 Clip9911--01 ~ ; AT.F4 |
31376-31X00 |
US $2.45 |
||
|
38342P
|
38342P
38342-31X00
Seal-Oil, Differential Converter Housing
9911--01 ~ 0009--01; AT.F4 |
38342-31X00 |
— | ||
| replacement | |||||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING9911--01 ~ 0009--01; AT.F4 |
383428E000 |
from US $4.23 |
||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING0009--01 ~ ; AT.F4 |
383428E000 |
from US $4.23 |
||
