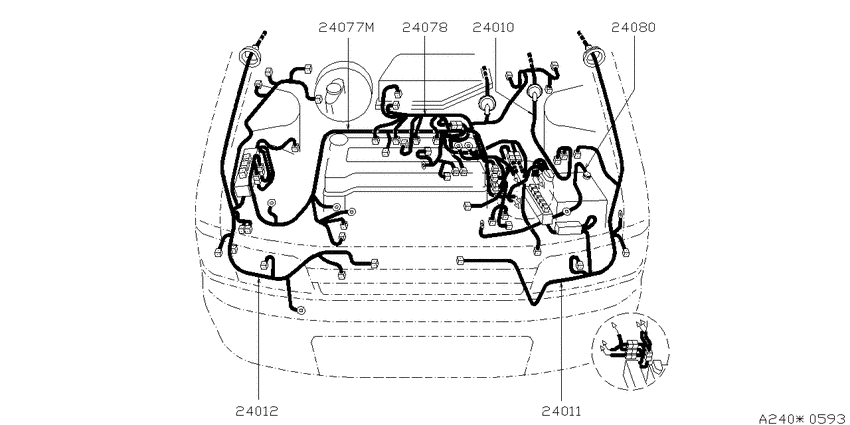

Wiring (2000-09-01 ~ ; "エンジン ルーム ハーネス 立体図; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-2U561 Harness Assy-Main9911--01 ~ 0009--01; W.S.AT.F4 |
24010-2U561 |
US $2,674 |
||
|
24010
|
24010
24010-2U563 Harness Assy-Main9911--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U563 |
US $2,674 |
||
|
24010
|
24010
24010-2U566 Harness Assy-Main9911--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U566 |
US $2,674 |
||
|
24010
|
24010
24010-2U567 Harness Assy-Main9911--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U567 |
US $2,674 |
||
|
24010
|
24010
24010-2U581 Harness Assy-Main9911--01 ~ 0005--01; *W.S.AT.F4 |
24010-2U581 |
US $2,674 |
||
|
24010
|
24010
24010-2U583 Harness Assy-Main9911--01 ~ 0005--01; *W.S.AT.F4 |
24010-2U583 |
US $2,674 |
||
|
24010
|
24010
24010-2U668 Harness Assy-Main0005--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U668 |
US $2,674 |
||
|
24010
|
24010
24010-2U669 Harness Assy-Main0005--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U669 |
US $2,674 |
||
|
24010
|
24010
24010-2U670 Harness Assy-Main0004--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U670 |
US $2,674 |
||
|
24010
|
24010
24010-2U671 Harness Assy-Main0004--01 ~ 0009--01; *W.S.AT.F4 |
24010-2U671 |
US $2,674 |
||
|
24010
|
24010
24010-2U809 Harness Assy-Main0009--01 ~ ; *W.S.AT.F4 |
24010-2U809 |
US $2,674 |
||
|
24010
|
24010
24010-2U810 Harness Assy-Main0009--01 ~ ; *W.S.AT.F4 |
24010-2U810 |
US $2,674 |
||
|
24010
|
24010
24010-2U812 Harness Assy-Main0009--01 ~ ; *W.S.AT.F4 |
24010-2U812 |
US $2,674 |
||
|
24010
|
24010
24010-2U813 Harness Assy-Main0009--01 ~ ; *W.S.AT.F4 |
24010-2U813 |
US $2,674 |
||
|
24010
|
24010
24010-2U819 Harness Assy-Main0104--01 ~ ; *W.S.AT.F4 |
24010-2U819 |
US $2,674 |
||
|
24010
|
24010
24010-2U820 Harness Assy-Main0104--01 ~ ; *W.S.AT.F4 |
24010-2U820 |
US $2,674 |
||
|
24010
|
24010
24010-2U821 Harness Assy-Main0104--01 ~ ; *W.S.AT.F4 |
24010-2U821 |
US $2,674 |
||
|
24010
|
24010
24010-2U822 Harness Assy-Main0104--01 ~ ; *W.S.AT.F4 |
24010-2U822 |
US $2,674 |
||
|
24011
|
24011
24012-2U580 Harness Assy-Engine Room9911--01 ~ 0009--01; W.AT.F4 |
24012-2U580 |
US $1,365.02 |
||
|
24011
|
24011
24012-2U860 Harness Assy-Engine Room0009--01 ~ ; W.AT.F4 |
24012-2U860 |
US $1,365.02 |
||
|
24011
|
24011
24012-2U861 Harness Assy-Engine Room0009--01 ~ ; *W.(S+X).AT.F4 |
24012-2U861 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U500 Harness Assy-Engine Room9911--01 ~ 0009--01; W |
24012-2U500 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U501 Harness Assy-Engine Room9911--01 ~ 0009--01; *W |
24012-2U501 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U700 Harness Assy-Engine Room0009--01 ~ ; W |
24012-2U700 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U701 Harness Assy-Engine Room0009--01 ~ ; *W.(S+X+X/A+RIDER/A+S/A+ARTE/A) |
24012-2U701 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U702 Harness Assy-Engine Room0009--01 ~ ; *W |
24012-2U702 |
US $1,365.02 |
||
|
24012
|
24012
24012-2U703 Harness Assy-Engine Room0009--01 ~ ; *W.(S+X+X/A+RIDER/A+S/A+ARTE/A) |
24012-2U703 |
US $1,365.02 |
||
|
24012
|
24012
0145600411 SCREW9911--01 ~ 0009--01; W |
0145600411 |
from US $0.56 |
||
|
24077M
|
24077M
24077-2U560 Harness Assy-Engine9911--01 ~ 0009--01; W.AT.F4 |
24077-2U560 |
US $681.10 |
||
|
24077M
|
24077M
24077-2U561 Harness Assy-Engine9911--01 ~ 0009--01; *W.AT.F4 |
24077-2U561 |
US $681.10 |
||
|
24077M
|
24077M
24077-2U800 Harness Assy-Engine0009--01 ~ ; *W.(S+X).AT.F4 |
24077-2U800 |
US $681.10 |
||
|
24077M
|
24077M
24077-2U801 Harness Assy-Engine0009--01 ~ ; *W.(S+X).AT.F4 |
24077-2U801 |
US $681.10 |
||
|
24077M
|
24077M
24077-2U802 Harness Assy-Engine0009--01 ~ ; W.AT.F4 |
24077-2U802 |
US $681.10 |
||
|
24077M
|
24077M
24077-2U803 Harness Assy-Engine0009--01 ~ ; *W.AT.F4 |
24077-2U803 |
US $681.10 |
||
|
24078
|
24078
24011-2U560 Harness Assy-Egi9911--01 ~ 0009--01; W.AT.F4 |
24011-2U560 |
US $756.14 |
||
|
24078
|
24078
24011-2U662 Harness Assy-Egi0005--01 ~ 0009--01; *W.S.AT.F4 |
24011-2U662 |
US $756.14 |
||
|
24078
|
24078
24011-2U800 Harness Assy-Egi0009--01 ~ ; W.AT.F4 |
24011-2U800 |
US $756.14 |
||
|
24080
|
24080
2408041B10 Cable Assy-Battery Earth9911--01 ~ ; W.AT.F4 |
2408041B10 |
US $54.14 |
||
|
24080
|
24080
2408041B11 Cable Assy-Battery Earth9911--01 ~ ; *W.AT.F4 |
2408041B11 |
US $54.14 |
