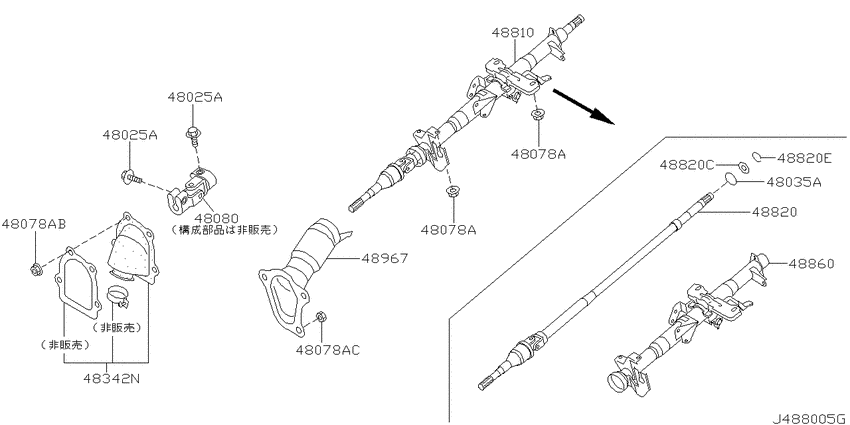

Steering column (2001-05-01 ~ ; パート2; CGA3DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.MCVT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48025A
|
48025A
48935-4P000 Bolt9911--01 ~ 0009--01; CGA3DE |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-4P000 Bolt9911--01 ~ 0009--01; CGA3DE |
48935-4P000 |
US $2.45 |
||
|
48035A
|
48035A
48035-40U10 Seal-O Ring9911--01 ~ 0009--01; CGA3DE |
48035-40U10 |
US $2.74 |
||
|
48078A
|
48078A
0122500481
NUT
9911--01 ~ 0009--01; CGA3DE |
0122500481 |
— | ||
|
48078A
|
48078A
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48078A
|
48078A
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48078A
|
48078A
0122500481
NUT
9911--01 ~ 0009--01; CGA3DE |
0122500481 |
— | ||
|
48078A
|
48078A
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48078A
|
48078A
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48078AB
|
48078AB
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48078AC
|
48078AC
0122500371 NUT9911--01 ~ 0009--01; CGA3DE |
0122500371 |
US $1.73 |
||
|
48080
|
48080
48080-0M001 Joint Assy-Steering, Lower9911--01 ~ 0009--01; CGA3DE |
48080-0M001 |
US $79.06 |
||
| replacement | |||||
|
48080
|
48080
48080-0M00A
Joint Assy-Steering Column, Lower
9911--01 ~ 0009--01; CGA3DE |
48080-0M00A |
— | ||
|
48342N
|
48342N
48950-2U600 Cover-Column Hole9911--01 ~ 0009--01; CGA3DE |
48950-2U600 |
US $69.41 |
||
|
48810
|
48810
48810-2U310 Column Assy-Steering, Upper9911--01 ~ 0009--01; CGA3DE.(AT.CVT+AT.MCVT) |
48810-2U310 |
US $584.81 |
||
|
48810
|
48810
48810-2U710 Column Assy-Steering, Upper0009--01 ~ 0105--01; =2WD.CGA3DE.(S+X+F).AT.MCVT +4WD.CGA3DE.AT.MCVT +CGA3DE.AT.CVT |
48810-2U710 |
US $584.81 |
||
|
48810
|
48810
48810-2U711 Column Assy-Steering, Upper0105--01 ~ ; CGA3DE.(AT.CVT+AT.MCVT) |
48810-2U711 |
US $584.81 |
||
|
48820
|
48820
48820-2U000 Shaft Assy-Steering Column, Upper9911--01 ~ 0009--01; CGA3DE |
48820-2U000 |
US $286.03 |
||
|
48820
|
48820
48820-2U711 Shaft Assy-Steering Column, Upper0105--01 ~ ; CGA3DE.(AT.CVT+AT.MCVT) |
48820-2U711 |
US $286.03 |
||
|
48820
|
48820
48283-40U10 Washer-Plain9911--01 ~ 0009--01; CGA3DE |
48283-40U10 |
US $3.46 |
||
|
48820
|
48820
48268-40U10 Ring-Snap9911--01 ~ 0009--01; CGA3DE |
48268-40U10 |
US $0.86 |
||
|
48820C
|
48820C
48283-40U10 Washer-Plain9911--01 ~ 0009--01; CGA3DE |
48283-40U10 |
US $3.46 |
||
|
48820E
|
48820E
48268-40U10 Ring-Snap9911--01 ~ 0009--01; CGA3DE |
48268-40U10 |
US $0.86 |
||
|
48860
|
48860
48860-2U310 Tube Assy-Jacket, Upper9911--01 ~ 0009--01; CGA3DE.(AT.CVT+AT.MCVT) |
48860-2U310 |
US $279.36 |
||
|
48860
|
48860
48860-2U710 Tube Assy-Jacket, Upper0009--01 ~ 0105--01; =2WD.CGA3DE.(S+X+F).AT.MCVT +4WD.CGA3DE.AT.MCVT +CGA3DE.AT.CVT |
48860-2U710 |
US $279.36 |
||
|
48967
|
48967
48981-2U000 Cover-Joint, Upper9911--01 ~ 0009--01; CGA3DE |
48981-2U000 |
US $23.47 |
||
