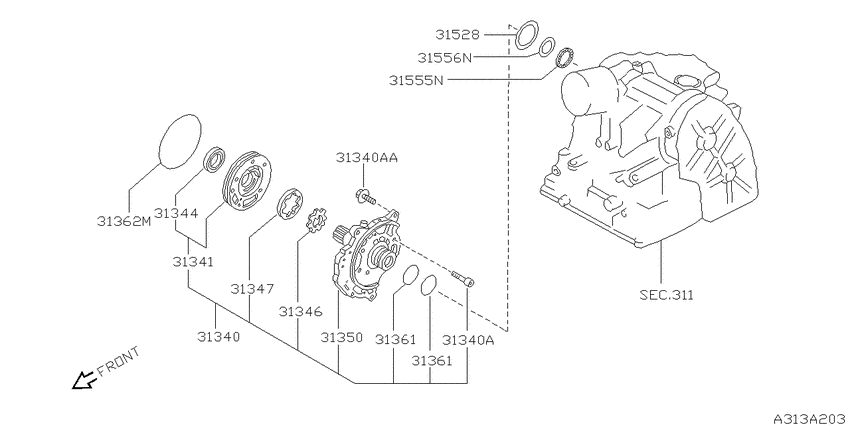

Oil pump (1999-11-01 ~ ; AT.F4) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- F
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31340
|
31340
31340-31X06 Pump Assy-Oil9911--01 ~ ; AT.F4 |
31340-31X06 |
US $423.20 |
||
|
31340
|
31340
31377-31X00 Bolt9911--01 ~ ; AT.F4 |
31377-31X00 |
US $2.45 |
||
|
31340
|
31340
31377-31X07 Bolt0012--01 ~ ; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31340
|
31340
31377-31X13 Bolt9911--01 ~ 0012--01; AT.F4 |
31377-31X13 |
US $1.73 |
||
|
31340A
|
31340A
31377-31X00 Bolt9911--01 ~ ; AT.F4 |
31377-31X00 |
US $2.45 |
||
|
31340A
|
31340A
31377-31X07 Bolt0012--01 ~ ; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31340A
|
31340A
31377-31X13 Bolt9911--01 ~ 0012--01; AT.F4 |
31377-31X13 |
US $1.73 |
||
|
31340AA
|
31340AA
31377-31X07 Bolt0012--01 ~ ; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31340AA
|
31340AA
31377-31X13 Bolt9911--01 ~ 0012--01; AT.F4 |
31377-31X13 |
US $1.73 |
||
|
31341
|
31341
31341-31X00 Housing Assy-Oil Pump9911--01 ~ ; AT.F4 |
31341-31X00 |
US $152.64 |
||
|
31344
|
31344
31375-31X00
Seal-Oil Pump Housing
9911--01 ~ 0007--01; AT.F4 |
31375-31X00 |
— | ||
| replacement | |||||
|
31344
|
31344
3137531X03 Seal-Oil Pump Housing9911--01 ~ 0007--01; AT.F4 |
3137531X03 |
from US $3.43 |
||
|
31344
|
31344
3137531X03 Seal-Oil Pump Housing0007--01 ~ ; AT.F4 |
3137531X03 |
from US $3.43 |
||
|
31346
|
31346
31346-31X00 Gear-Inner, Oil Pump9911--01 ~ ; AT.F4; T=10.00-9.99 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31346-31X00 |
US $90.58 |
||
|
31346
|
31346
31346-31X01 Gear-Inner, Oil Pump9911--01 ~ ; AT.F4; T=9.99-9.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31346-31X01 |
US $90.58 |
||
|
31346
|
31346
31346-31X02 Gear-Inner, Oil Pump9911--01 ~ ; AT.F4; T=9.98-9.97 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31346-31X02 |
US $90.58 |
||
|
31347
|
31347
31347-31X00 Gear-Outer, Oil Pump9911--01 ~ ; AT.F4; T=10.00-9.99 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31347-31X00 |
US $26.93 |
||
|
31347
|
31347
31347-31X01 Gear-Outer, Oil Pump9911--01 ~ ; AT.F4; T=9.99-9.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31347-31X01 |
US $26.93 |
||
|
31347
|
31347
31347-31X02 Gear-Outer, Oil Pump9911--01 ~ ; AT.F4; T=9.98-9.97 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31347-31X02 |
US $26.93 |
||
|
31350
|
31350
31350-31X03 Cover Assy-Oil Pump9911--01 ~ ; AT.F4 |
31350-31X03 |
US $187.20 |
||
|
31361
|
31361
31525-31X12 Ring-Seal9911--01 ~ ; AT.F4 |
31525-31X12 |
US $10.80 |
||
|
31361
|
31361
31525-31X12 Ring-Seal9911--01 ~ ; AT.F4 |
31525-31X12 |
US $10.80 |
||
|
31362M
|
31362M
31526-31X00 Seal-O Ring9911--01 ~ ; AT.F4 |
31526-31X00 |
US $6.19 |
||
|
31528
|
31528
31508-31X10 Washer-Thrust9911--01 ~ ; AT.F4; T=0.65 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X10 |
US $2.45 |
||
|
31528
|
31528
31508-31X11 Washer-Thrust9911--01 ~ ; AT.F4; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X11 |
US $2.45 |
||
|
31528
|
31528
31508-31X12 Washer-Thrust9911--01 ~ ; AT.F4; T=0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X12 |
from US $1.76 |
||
|
31528
|
31528
31508-31X13 Washer-Thrust9911--01 ~ ; AT.F4; T=1.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X13 |
from US $0.43 |
||
|
31528
|
31528
31508-31X14 Washer-Thrust9911--01 ~ ; AT.F4; T=1.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X14 |
US $2.45 |
||
|
31528
|
31528
31508-31X15 Washer-Thrust9911--01 ~ ; AT.F4; T=1.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31508-31X15 |
US $2.45 |
||
|
31555N
|
31555N
31407-31X10 Bearing-Needle, Thrust9911--01 ~ ; AT.F4 |
31407-31X10 |
US $4.18 |
||
|
31556N
|
31556N
31435-31X01 Race-Bearing9911--01 ~ ; AT.F4; T=0.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X01 |
from US $3.35 |
||
|
31556N
|
31556N
31435-31X02 Race-Bearing9911--01 ~ ; AT.F4; T=0.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X02 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X03 Race-Bearing9911--01 ~ ; AT.F4; T=1.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X03 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X04 Race-Bearing9911--01 ~ ; AT.F4; T=1.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X04 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X05 Race-Bearing9911--01 ~ ; AT.F4; T=1.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X05 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X06 Race-Bearing9911--01 ~ ; AT.F4; T=1.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X06 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X07 Race-Bearing9911--01 ~ ; AT.F4; T=1.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31435-31X07 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X08 Race-Bearing9911--01 ~ ; AT.F4; ｾﾝﾀｸ T=2.0 |
31435-31X08 |
US $5.33 |
||
