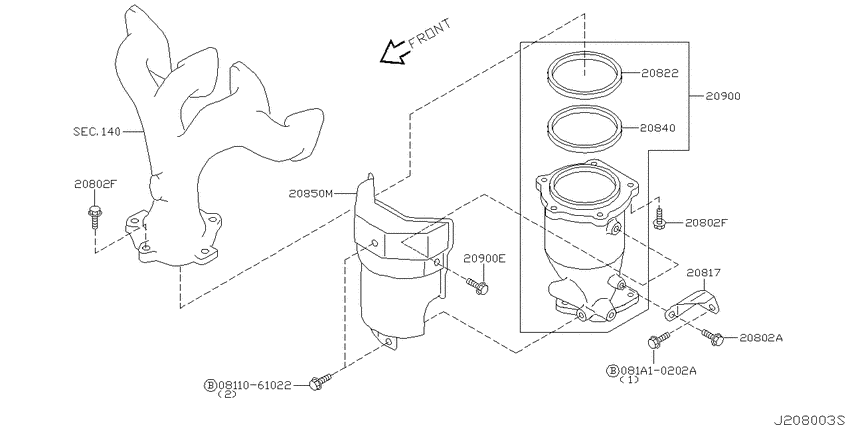

Catalyst converter (1999-11-01 ~ 2000-09-01; CGA3DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061022
|
0811061022
08110-61022
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-61022 |
— | ||
|
081A10202A
|
081A10202A
081A10202A
ﾎﾞﾙﾄ
|
081A10202A |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
20802A
|
20802A
01125-02641 BOLT9911--01 ~ 0009--01; CGA3DE |
01125-02641 |
US $2.45 |
||
|
20802A
|
20802A
140698N200 Bolt0305--01 ~ ; CGA3DE |
140698N200 |
US $4.18 |
||
|
20802F
|
20802F
140694M500 Bolt9911--01 ~ 0009--01; CGA3DE |
140694M500 |
US $4.18 |
||
|
20802F
|
20802F
0112107141 BOLT0102--01 ~ ; CGA3DE |
0112107141 |
US $2.88 |
||
|
20802F
|
20802F
140694M500 Bolt9911--01 ~ 0009--01; CGA3DE |
140694M500 |
US $4.18 |
||
|
20802F
|
20802F
0112107141 BOLT0102--01 ~ ; CGA3DE |
0112107141 |
US $2.88 |
||
|
20817
|
20817
20817AN200 Gusset9911--01 ~ 0009--01; CGA3DE |
20817AN200 |
US $10.94 |
||
|
20822
|
20822
20822-2U401 Cap-Converter9911--01 ~ 0009--01; CGA3DE |
20822-2U401 |
US $8.78 |
||
|
20840
|
20840
20840-2U401 Washer-Wire Mesh9911--01 ~ 0009--01; CGA3DE |
20840-2U401 |
US $13.68 |
||
|
20850M
|
20850M
20853AN300 Shelter9911--01 ~ 0009--01; CGA3DE |
20853AN300 |
US $23.76 |
||
|
20900
|
20900
208A0-2U700 Three Way Catalyst0204--01 ~ ; E2WD.CGA3DE.(S+X+F).AT.MCVT +4WD.CGA3DE.AT.MCVT +CGA3DE.(AT.F4+AT.CVT) |
208A0-2U700 |
US $727.82 |
||
|
20900
|
20900
B08A0-AN201 Three Way Catalyst9911--01 ~ 0004--01; CGA3DE |
B08A0-AN201 |
US $790.13 |
||
|
20900
|
20900
B08A0-AN310 Three Way Catalyst0004--01 ~ 0009--01; CGA3DE |
B08A0-AN310 |
US $798.62 |
||
|
20900
|
20900
20829-0M300 Pin9911--01 ~ 0009--01; CGA3DE |
20829-0M300 |
US $5.04 |
||
|
20900E
|
20900E
20829-0M300 Pin9911--01 ~ 0009--01; CGA3DE |
20829-0M300 |
US $5.04 |
||
