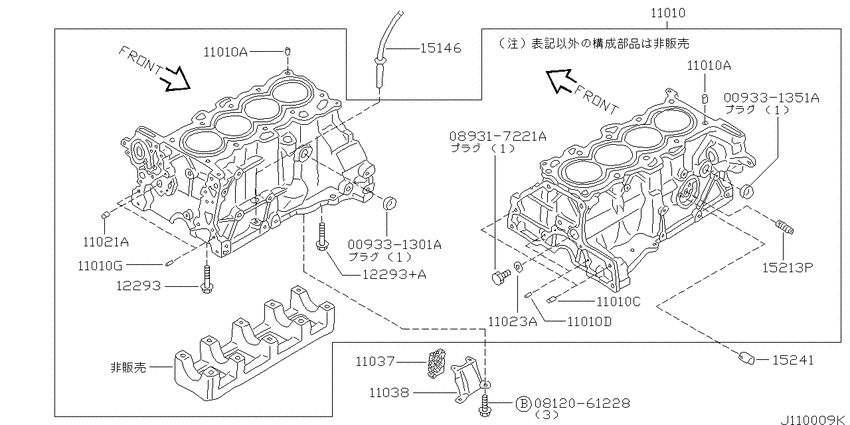

Cylinder block & oil pan (1999-11-01 ~ 2000-09-01; シリンダーブロック構成; CGA3DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- CGA3DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.02 |
||
|
009331351A
|
009331351A
009331351A Plug-Welch |
009331351A |
US $3.06 |
||
|
0812061228
|
0812061228
0812061228 BOLT |
0812061228 |
from US $0.50 |
||
|
089317221A
|
089317221A
08931-7221A
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-7221A |
— | ||
|
11010
|
11010
11000-AN200 Block Assy-Cylinder9911--01 ~ 0009--01; CGA3DE |
11000-AN200 |
US $1,470 |
||
|
11010
|
11010
1105301M00 Dowel-Block To Head9911--01 ~ 0009--01; CGA3DE |
1105301M00 |
US $2.91 |
||
|
11010
|
11010
30412H1001 Dowel-Block9911--01 ~ 0009--01; CGA3DE |
30412H1001 |
US $3.06 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump9911--01 ~ 0009--01; CGA3DE |
1104673402 |
from US $0.48 |
||
|
11010
|
11010
1102277A00 Dowel-Block To Oil Pump9911--01 ~ 0009--01; CGA3DE |
1102277A00 |
from US $0.54 |
||
|
11010A
|
11010A
1105301M00 Dowel-Block To Head9911--01 ~ 0009--01; CGA3DE |
1105301M00 |
US $2.91 |
||
|
11010A
|
11010A
1105301M00 Dowel-Block To Head9911--01 ~ 0009--01; CGA3DE |
1105301M00 |
US $2.91 |
||
|
11010C
|
11010C
30412H1001 Dowel-Block9911--01 ~ 0009--01; CGA3DE |
30412H1001 |
US $3.06 |
||
|
11010D
|
11010D
1104673402 Dowel-Water Pump9911--01 ~ 0009--01; CGA3DE |
1104673402 |
from US $0.48 |
||
|
11010G
|
11010G
1102277A00 Dowel-Block To Oil Pump9911--01 ~ 0009--01; CGA3DE |
1102277A00 |
from US $0.54 |
||
|
11021A
|
11021A
11024-72B00 Plug-Taper9911--01 ~ 0009--01; CGA3DE |
11024-72B00 |
US $1.93 |
||
|
11023A
|
11023A
11026-41B00 Gasket9911--01 ~ 0009--01; CGA3DE |
11026-41B00 |
US $2.45 |
||
|
11037
|
11037
11037-41B00 Net-Steel, Crank Case9911--01 ~ 0009--01; CGA3DE |
11037-41B00 |
US $11.23 |
||
|
11038
|
11038
11038-AN200 Plate-Baffle, Crank Case9911--01 ~ 0009--01; CGA3DE |
11038-AN200 |
US $10.51 |
||
|
12293
|
12293
12293-41B00 Bolt-Main Bearing Cap9911--01 ~ 0009--01; CGA3DE |
12293-41B00 |
US $4.18 |
||
|
12293
|
12293
12293-AX000 Bolt-Main Bearing Cap0108--01 ~ ; CGA3DE |
12293-AX000 |
US $4.85 |
||
|
12293
|
12293
12293-41B01 Bolt-Main Bearing Cap9911--01 ~ 0009--01; CGA3DE |
12293-41B01 |
US $4.18 |
||
|
12293
|
12293
12293-AX001 Bolt-Main Bearing Cap0108--01 ~ ; CGA3DE |
12293-AX001 |
US $4.85 |
||
|
12293+A
|
12293+A
12293-41B01 Bolt-Main Bearing Cap9911--01 ~ 0009--01; CGA3DE |
12293-41B01 |
US $4.18 |
||
|
12293+A
|
12293+A
12293-AX001 Bolt-Main Bearing Cap0108--01 ~ ; CGA3DE |
12293-AX001 |
US $4.85 |
||
|
15146
|
15146
11150-41B00 Guide-Oil Level Gauge9911--01 ~ 0009--01; CGA3DE |
11150-41B00 |
US $12.38 |
||
|
15213P
|
15213P
15213-21001 Stud-Oil Filter9911--01 ~ 0009--01; CGA3DE |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15213P
|
15213P
15213-W040A Stud-oil filter9911--01 ~ 0009--01; CGA3DE |
15213-W040A |
US $5.81 |
||
|
15241
|
15241
15241-01M00 Valve-Oil Pressure Regulator9911--01 ~ 0009--01; CGA3DE |
15241-01M00 |
US $8.06 |
||
| replacement | |||||
|
15241
|
15241
1524101M0A Valve-Oil Pressure Regulator9911--01 ~ 0009--01; CGA3DE |
1524101M0A |
from US $8.06 |
||
