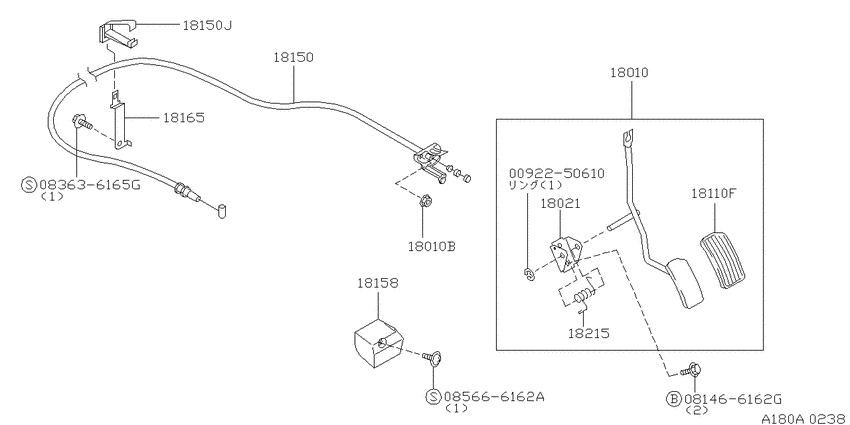

Accelerator linkage (1998-02-01 ~ 1999-11-01; CG13DE.AT.F4) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1998 - 1999
- Sales region
- Japan
- Engine
- CG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.57 |
||
|
081466162G
|
081466162G
081466162G BOLTHEX |
081466162G |
from US $0.56 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.48 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
from US $0.54 |
||
|
18010
|
18010
18005-2U300
ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾟﾀﾞﾙ
9802--01 ~ 9911--01; CG13DE.AT.F4 |
18005-2U300 |
— | ||
|
18010
|
18010
0122500371 NUT9802--01 ~ 9911--01; CG13DE.AT.F4 |
0122500371 |
US $1.73 |
||
|
18010B
|
18010B
0122500371 NUT9802--01 ~ 9911--01; CG13DE.AT.F4 |
0122500371 |
US $1.73 |
||
|
18021
|
18021
18021-89900 Bracket-Pedal Lever9802--01 ~ 9911--01; CG13DE.AT.F4 |
18021-89900 |
US $21.35 |
||
|
18110F
|
18110F
1801689911 Pad-Accelerator Pedal9802--01 ~ 9911--01; CG13DE.AT.F4 |
1801689911 |
from US $8.73 |
||
|
18150
|
18150
18201-41B05 Wire Assy-Accelerator9802--01 ~ 9911--01; CG13DE.AT.F4 |
18201-41B05 |
US $95.47 |
||
|
18150
|
18150
1822589907 Clip9802--01 ~ 9911--01; CG13DE.AT.F4 |
1822589907 |
US $20.10 |
||
|
18150J
|
18150J
1822589907 Clip9802--01 ~ 9911--01; CG13DE.AT.F4 |
1822589907 |
US $20.10 |
||
|
18158
|
18158
18158-2U000 Cover-Accelerator Stopper9802--01 ~ 9911--01; CG13DE.AT.F4 |
18158-2U000 |
US $15.12 |
||
|
18165
|
18165
18221-41B10 Bracket-Wire, Accelerator9802--01 ~ 9911--01; CG13DE.AT.F4 |
18221-41B10 |
US $11.23 |
||
|
18215
|
18215
18215-89901 Spring-Return9802--01 ~ 9911--01; CG13DE.AT.F4 |
18215-89901 |
US $4.18 |
