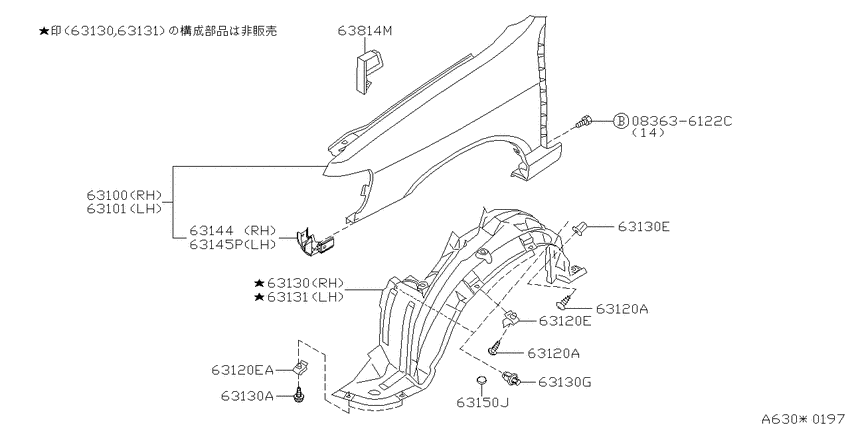

Front fender & fitting (1998-02-01 ~ 1999-11-01; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1998 - 1999
- Sales region
- Japan
- Engine
- CG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122C
|
083636122C
08363-6122C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6122C |
— | ||
|
63100
|
63100
631002U030 ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- rh9802--01 ~ 9911--01; W.(S+F) |
631002U030 |
US $434.71 |
||
|
63100
|
63100
KU000-53115 ﾀﾂﾁｱﾂﾌﾟﾍﾟｲﾝﾄ9802--01 ~ 9911--01; W; [K504] |
KU000-53115 |
US $10.51 |
||
|
63100
|
63100
KU000-AR215
Paint-Touch Up
9802--01 ~ 9911--01; W; [K504] |
KU000-AR215 |
— | ||
|
63100
|
63100
KU000-CT615 ﾍﾟｲﾝﾄ,ﾀﾂﾁ ｱﾂﾌﾟ9802--01 ~ 9911--01; W; [K504] |
KU000-CT615 |
US $10.51 |
||
|
63100
|
63100
KU000-EV115
Paint-Touch Up
9811--01 ~ 9911--01; W; [K504] |
KU000-EV115 |
— | ||
|
63100
|
63100
KU000KH388
Paint-Touch Up
9802--01 ~ 9911--01; W; [K504] |
KU000KH388 |
— | ||
|
63100
|
63100
KU000KR415
Paint-Touch Up
9802--01 ~ 9911--01; W; [K504] |
KU000KR415 |
— | ||
|
63101
|
63101
63101-2U030 ﾌｴﾝﾀﾞ-,ﾌﾛﾝﾄ lh9802--01 ~ 9911--01; W.(S+F) |
63101-2U030 |
US $434.71 |
||
|
63120A
|
63120A
0145100841 SCREW9802--01 ~ 9911--01; W |
0145100841 |
from US $0.93 |
||
|
63120A
|
63120A
0145100841 SCREW9802--01 ~ 9911--01; W |
0145100841 |
from US $0.93 |
||
|
63120E
|
63120E
6384835F00 Clip9802--01 ~ 9911--01; W |
6384835F00 |
from US $1.74 |
||
|
63120E
|
63120E
76882D4001 Clip9802--01 ~ 9911--01; W |
76882D4001 |
US $2.91 |
||
|
63120EA
|
63120EA
76882D4001 Clip9802--01 ~ 9911--01; W |
76882D4001 |
US $2.91 |
||
|
63130
|
63130
63842-2U300 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- rh9802--01 ~ 9911--01; W |
63842-2U300 |
US $81.79 |
||
|
63130
|
63130
63849-2U000 Screw9802--01 ~ 9911--01; W |
63849-2U000 |
US $2.45 |
||
|
63130
|
63130
0128100831 GROMMET-SCREW9802--01 ~ 9911--01; W |
0128100831 |
from US $0.87 |
||
|
63130
|
63130
0155309321 CLIP9802--01 ~ 9911--01; W |
0155309321 |
US $0.97 |
||
|
63130A
|
63130A
63849-2U000 Screw9802--01 ~ 9911--01; W |
63849-2U000 |
US $2.45 |
||
|
63130E
|
63130E
0128100831 GROMMET-SCREW9802--01 ~ 9911--01; W |
0128100831 |
from US $0.87 |
||
|
63130G
|
63130G
0155309321 CLIP9802--01 ~ 9911--01; W |
0155309321 |
US $0.97 |
||
|
63131
|
63131
63843-2U300 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- lh9802--01 ~ 9807--01; W |
63843-2U300 |
US $81.79 |
||
|
63131
|
63131
63843-2U310 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- lh9807--01 ~ 9911--01; W |
63843-2U310 |
US $81.79 |
||
|
63144
|
63144
63144-2U000 ﾌﾞﾗｹﾂﾄ,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ rh9802--01 ~ 9911--01; W |
63144-2U000 |
US $8.35 |
||
|
63145P
|
63145P
63145-2U000 ﾌﾞﾗｹﾂﾄ,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ lh9802--01 ~ 9911--01; W |
63145-2U000 |
US $8.35 |
||
|
63150J
|
63150J
01648-00241 PLUG9802--01 ~ 9911--01; W |
01648-00241 |
US $3.46 |
||
|
63814M
|
63814M
638262J000 Spacer-Sealing, Front Fender9802--01 ~ 9911--01; W |
638262J000 |
US $8.06 |
