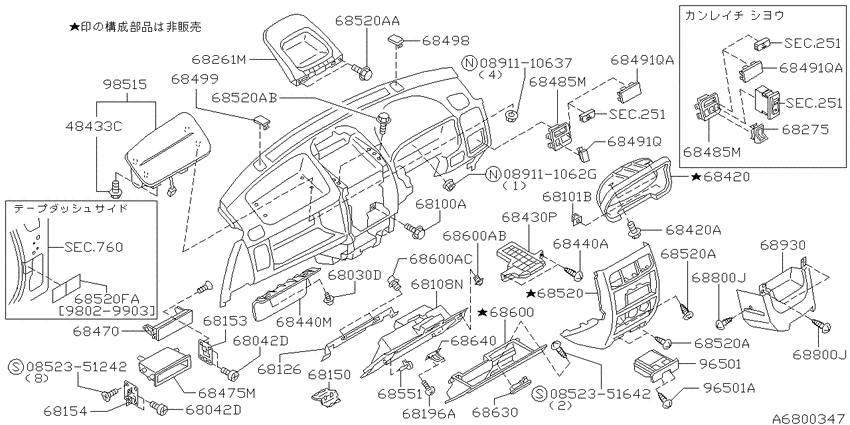

Instrument panel, pad & cluster lid (1998-02-01 ~ 1999-11-01; インスト フィッティング; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1998 - 1999
- Sales region
- Japan
- Engine
- CG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0852351242
|
0852351242
0852351242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0852351242 |
— | ||
|
0852351642
|
0852351642
0852351642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0852351642 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.19 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.46 |
||
|
251
|
Switch
251
|
||||
|
251
|
Switch
251
|
||||
|
251
|
Switch
251
|
||||
|
251
|
Switch
251
|
||||
|
251
|
Switch
251
|
||||
|
251
|
Switch
251
|
||||
|
48433C
|
48433C
0114100411 BOLT9802--01 ~ 9911--01; W |
0114100411 |
US $0.97 |
||
|
68030D
|
68030D
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68042D
|
68042D
01451-00191 SCREW9802--01 ~ 9911--01; W |
01451-00191 |
US $1.73 |
||
|
68042D
|
68042D
01451-00191 SCREW9802--01 ~ 9911--01; W |
01451-00191 |
US $1.73 |
||
|
68100A
|
68100A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68100A
|
68100A
01456-00651 SCREW9802--01 ~ 9911--01; W |
01456-00651 |
US $4.16 |
||
|
68101B
|
68101B
68198-01E00
NUT
9802--01 ~ 9911--01; W |
68198-01E00 |
— | ||
| replacement | |||||
|
68101B
|
68101B
6819151E0A Nut9802--01 ~ 9911--01; W |
6819151E0A |
US $1.39 |
||
|
68108N
|
68108N
68108-2U001 ﾊﾟﾈﾙ,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ ｱｼｽﾄ9802--01 ~ 9911--01; W |
68108-2U001 |
US $71.14 |
||
|
68126
|
68126
68126-2U000 ﾚｲﾝﾌｵ-ｽ,ｲﾝｽﾄﾙﾒﾝﾄ ｻｲﾄﾞ ﾛｱ9802--01 ~ 9911--01; W |
68126-2U000 |
US $14.83 |
||
|
68150
|
68150
68151-2U000 ｶﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾞﾛ-ﾌﾞ ﾎﾞﾂｸｽ9802--01 ~ 9911--01; W |
68151-2U000 |
US $16.56 |
||
|
68153
|
68153
2803840Y10 Bracket-Radio Mounting, Rh9802--01 ~ 9911--01; W |
2803840Y10 |
US $6.91 |
||
|
68154
|
68154
2803940Y10 Bracket-Radio Mounting, Lh9802--01 ~ 9911--01; W |
2803940Y10 |
US $6.91 |
||
|
68196A
|
68196A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68196A
|
68196A
01456-00651 SCREW9802--01 ~ 9911--01; W |
01456-00651 |
US $4.16 |
||
|
68196A
|
68196A
01456-00651 SCREW9802--01 ~ 9911--01; W |
01456-00651 |
US $4.16 |
||
|
68261M
|
68261M
68261-2U001 ﾘﾂﾄﾞ,ｸﾗｽﾀ- ｱﾂﾊﾟ-9802--01 ~ 9911--01; W |
68261-2U001 |
US $114.62 |
||
|
68275
|
68275
68275-95N00 Pocket-Coin9802--01 ~ 9911--01; *W; ﾜｲﾊﾟ- ﾃﾞｱｲｻ- + ｶﾝﾚｲﾁ ｼﾖｳ |
68275-95N00 |
US $27.22 |
||
|
68420
|
68420
682402U001 ｸﾗｽﾀ- ﾘﾂﾄﾞ9802--01 ~ 9911--01; W |
682402U001 |
US $106.56 |
||
|
68420
|
68420
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68420A
|
68420A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68430P
|
68430P
68430-2U000 ﾎﾙﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｶﾂﾌﾟ9802--01 ~ 9911--01; W |
68430-2U000 |
US $73.30 |
||
|
68440A
|
68440A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68440M
|
68440M
68440-2U001 ﾏｽｸ,ｲﾝｽﾄﾙﾒﾝﾄ ﾎﾟｹﾂﾄ9802--01 ~ 9911--01; W |
68440-2U001 |
US $33.26 |
||
|
68470
|
68470
68470-60M00 Mask-Radio9802--01 ~ 9911--01; W |
68470-60M00 |
from US $8.60 |
||
|
68475M
|
68475M
6847535F00 Pocket-Deck9802--01 ~ 9911--01; W |
6847535F00 |
from US $16.92 |
||
|
68485M
|
68485M
68485-8E000 PANEL-SWITCH9802--01 ~ 9911--01; W |
68485-8E000 |
US $32.40 |
||
|
68485M
|
68485M
68485-8E100 PANEL-SWITCH9802--01 ~ 9911--01; *W; ﾜｲﾊﾟ- ﾃﾞｱｲｻ- + ｶﾝﾚｲﾁ ｼﾖｳ |
68485-8E100 |
US $32.40 |
||
|
68485M
|
68485M
68485-8E000 PANEL-SWITCH9802--01 ~ 9911--01; W |
68485-8E000 |
US $32.40 |
||
|
68485M
|
68485M
68485-8E100 PANEL-SWITCH9802--01 ~ 9911--01; *W; ﾜｲﾊﾟ- ﾃﾞｱｲｻ- + ｶﾝﾚｲﾁ ｼﾖｳ |
68485-8E100 |
US $32.40 |
||
|
68491Q
|
68491Q
68960-64J00 Mask-Switch9802--01 ~ 9911--01; W |
68960-64J00 |
US $8.06 |
||
|
68498
|
68498
68498-2U001 ﾏｽｸ,ｲﾝｽﾄﾙﾒﾝﾄ rh9802--01 ~ 9911--01; W |
68498-2U001 |
US $10.94 |
||
|
68499
|
68499
68499-2U001 ﾏｽｸ,ｲﾝｽﾄﾙﾒﾝﾄ lh9802--01 ~ 9911--01; W |
68499-2U001 |
US $10.94 |
||
|
68520
|
68520
68260-2U001 ﾘﾂﾄﾞ,ｸﾗｽﾀ-9802--01 ~ 9911--01; W |
68260-2U001 |
US $213.12 |
||
|
68520
|
68520
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
68370-2U000 ﾃｰﾌﾟ,ｻｲﾚﾝﾄ9802--01 ~ 9911--01; W |
68370-2U000 |
US $4.46 |
||
|
68520
|
68520
68974-2U000 ﾃｰﾌﾟ,ｻｲﾚﾝﾄ9802--01 ~ 9903--01; W |
68974-2U000 |
US $3.46 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520AA
|
68520AA
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520AB
|
68520AB
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68520FA
|
68520FA
68974-2U000 ﾃｰﾌﾟ,ｻｲﾚﾝﾄ9802--01 ~ 9903--01; W |
68974-2U000 |
US $3.46 |
||
|
68551
|
68551
6855150Y00
Pin-Glove Box
9802--01 ~ 9911--01; W |
6855150Y00 |
— | ||
| replacement | |||||
|
68551
|
68551
68551-EQ00A Pin-glove box9802--01 ~ 9911--01; W |
68551-EQ00A |
from US $5.14 |
||
|
68600
|
68600
68500-2U001 ﾎﾞﾂｸｽ,ｸﾞﾛ-ﾌﾞ9802--01 ~ 9911--01; W |
68500-2U001 |
US $106.56 |
||
|
68600
|
68600
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68600AB
|
68600AB
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68600AC
|
68600AC
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68630
|
68630
686300M001 Lock Assy-Glove Box Lid9802--01 ~ 9911--01; W |
686300M001 |
US $27.22 |
||
|
68640
|
68640
68640-0W000 Striker-Glove Box Lid9802--01 ~ 9911--01; W |
68640-0W000 |
US $9.65 |
||
|
68800J
|
68800J
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68800J
|
68800J
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
68930
|
68930
68930-2U001 ｶﾊﾞ-,ｲﾝｽﾄﾙﾒﾝﾄ ｽﾃ-9802--01 ~ 9911--01; W |
68930-2U001 |
US $112.75 |
||
|
760
|
Body side panel
760
|
||||
|
96501
|
96501
68800-2U011 ｱｼﾕﾄﾚ-,ｲﾝｽﾄﾙﾒﾝﾄ9802--01 ~ 9911--01; W |
68800-2U011 |
US $71.14 |
||
|
96501
|
96501
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
96501A
|
96501A
0145100581 SCREW9802--01 ~ 9911--01; W |
0145100581 |
from US $0.63 |
||
|
98515
|
98515
K8515-2U001 ﾓｼﾞﾕ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ｴｱ ﾊﾞﾂｸﾞ ｱｼｽﾄ9802--01 ~ 9911--01; W |
K8515-2U001 |
US $1,820 |
||
