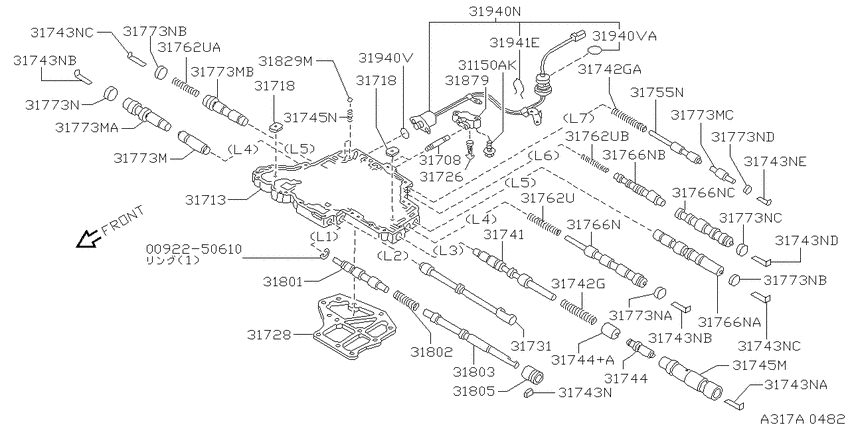

Control valve (atm) (1998-02-01 ~ 1999-11-01; ロアー; AT.F4) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 1998 - 1999
- Sales region
- Japan
- Engine
- CG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.57 |
||
|
31150AK
|
31150AK
01121-03701 BOLT9802--01 ~ 9911--01; AT.F4 |
01121-03701 |
US $0.86 |
||
|
31708
|
31708
31708-31X00 Tube-Connector, Control Valve9802--01 ~ 9911--01; AT.F4 |
31708-31X00 |
US $24.77 |
||
|
31713
|
31713
31713-31X00 Body-Lower, Control Valve9802--01 ~ 9911--01; AT.F4 |
31713-31X00 |
US $131.47 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator9802--01 ~ 9911--01; AT.F4 |
31718-01X00 |
US $2.45 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator9802--01 ~ 9911--01; AT.F4 |
31718-01X00 |
US $2.45 |
||
|
31726
|
31726
31726-31X00 Filter Assy-Oil, Auto Transmission9802--01 ~ 9911--01; AT.F4 |
31726-31X00 |
US $6.19 |
||
|
31728
|
31728
3172831X01 Strainer Assy-Oil9802--01 ~ 9911--01; AT.F4 |
3172831X01 |
from US $27.58 |
||
|
31731
|
31731
31731-31X00
Valve-Manual
9802--01 ~ 9911--01; AT.F4; L2 |
31731-31X00 |
— | ||
| replacement | |||||
|
31731
|
31731
31731-31X02 Valve-Manual9802--01 ~ 9911--01; AT.F4; L2 |
31731-31X02 |
US $37.84 |
||
|
31741
|
31741
31741-31X00 Valve-Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31741-31X00 |
US $21.17 |
||
|
31742G
|
31742G
31742-31X00 Spring-Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31742-31X00 |
US $2.45 |
||
|
31742G
|
31742G
31742-31X60 Spring-Valve9802--01 ~ 9911--01; AT.F4; L7 |
31742-31X60 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X10 Spring-Pressure Modifier9802--01 ~ 9911--01; AT.F4; L8 |
31742-31X10 |
US $1.73 |
||
|
31742G
|
31742G
31742-31X03 Spring-Kick Down Modifier9802--01 ~ 9911--01; AT.F4; L9 |
31742-31X03 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X67 Spring-Valve9802--01 ~ 9911--01; AT.F4; L10 |
31742-31X67 |
US $2.45 |
||
|
31742G
|
31742G
31742-31X06 Spring-Relief Valve9802--01 ~ 9911--01; AT.F4; L13 |
31742-31X06 |
US $0.86 |
||
|
31742G
|
31742G
3174231X07 Spring-Throttle Modulator9802--01 ~ 9911--01; AT.F4; L14 |
3174231X07 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X08 Spring-Lock Up Control9802--01 ~ 9911--01; AT.F4; L16 |
31742-31X08 |
US $0.86 |
||
|
31742GA
|
31742GA
31742-31X60 Spring-Valve9802--01 ~ 9911--01; AT.F4; L7 |
31742-31X60 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X00 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L1 |
31743-31X00 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L3 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L4 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L5 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L6 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L7 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L8 |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L9 |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-80X07 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L10 |
31743-80X07 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X10 Plate-Retainer9902--01 ~ 9911--01; AT.F4; L10 |
31743-31X10 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X11 Plate-Retainer9802--01 ~ 9902--01; AT.F4; L10 |
31743-31X11 |
US $3.46 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L11 |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L12 |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X05 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L13 |
31743-31X05 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L14 |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L15 |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L16 |
31743-31X01 |
US $5.33 |
||
|
31743NA
|
31743NA
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L3 |
31743-31X01 |
US $5.33 |
||
|
31743NB
|
31743NB
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L4 |
31743-31X01 |
US $5.33 |
||
|
31743NB
|
31743NB
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L4 |
31743-31X01 |
US $5.33 |
||
|
31743NC
|
31743NC
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L5 |
31743-31X01 |
US $5.33 |
||
|
31743NC
|
31743NC
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L5 |
31743-31X01 |
US $5.33 |
||
|
31743ND
|
31743ND
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L6 |
31743-31X01 |
US $5.33 |
||
|
31743NE
|
31743NE
31743-31X01 Plate-Retainer9802--01 ~ 9911--01; AT.F4; L7 |
31743-31X01 |
US $5.33 |
||
|
31744
|
31744
31744-31X02 Plug-Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31744-31X02 |
US $10.80 |
||
|
31744
|
31744
31744-31X03 Plug-Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31744-31X03 |
US $10.80 |
||
|
31744+A
|
31744+A
31744-31X03 Plug-Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31744-31X03 |
US $10.80 |
||
|
31745M
|
31745M
31745-31X01 Sleeve-Plug, Pressure Regulator9802--01 ~ 9911--01; AT.F4; L3 |
31745-31X01 |
US $24.77 |
||
|
31745N
|
31745N
31872-31X00 Spring-Relief Valve9802--01 ~ 9911--01; AT.F4 |
31872-31X00 |
US $1.73 |
||
|
31755N
|
31755N
31772-31X00 Valve-Overrun Clutch Control9802--01 ~ 9911--01; AT.F4; L7 |
31772-31X00 |
US $7.20 |
||
|
31755N
|
31755N
31772-31X01 Valve-Pressure Modifier9802--01 ~ 9911--01; AT.F4; L8 |
31772-31X01 |
US $10.80 |
||
|
31755N
|
31755N
31772-41X01 Valve-Spool9802--01 ~ 9911--01; AT.F4; L9 |
31772-41X01 |
US $10.12 |
||
|
31755N
|
31755N
31772-31X06 Valve-Accumulator Control9902--01 ~ 9911--01; AT.F4; L10 |
31772-31X06 |
US $8.06 |
||
|
31755N
|
31755N
31772-31X24 Valve-Spool9802--01 ~ 9902--01; AT.F4; L10 |
31772-31X24 |
US $10.80 |
||
|
31755N
|
31755N
31772-21X00 Valve-Spool9802--01 ~ 9911--01; AT.F4; L11 |
31772-21X00 |
US $6.94 |
||
|
31755N
|
31755N
31772-31X07 Valve-1St Reducing9802--01 ~ 9911--01; AT.F4; L12 |
31772-31X07 |
US $12.53 |
||
|
31755N
|
31755N
31772-31X20 Valve-Spool9802--01 ~ 9911--01; AT.F4; L13 |
31772-31X20 |
US $10.80 |
||
|
31755N
|
31755N
31772-31X03 Valve-Throttle Modulator9802--01 ~ 9911--01; AT.F4; L14 |
31772-31X03 |
US $6.19 |
||
|
31755N
|
31755N
31772-21X00 Valve-Spool9802--01 ~ 9911--01; AT.F4; L15 |
31772-21X00 |
US $6.94 |
||
|
31755N
|
31755N
31772-31X22 Valve-Spool9802--01 ~ 9911--01; AT.F4; L16 |
31772-31X22 |
US $10.80 |
||
|
31762U
|
31762U
31762-31X00 Spring-3Rd & 4Th Shift9802--01 ~ 9911--01; AT.F4; L4 |
31762-31X00 |
US $1.73 |
||
|
31762U
|
31762U
31762-31X01 Spring-2Nd & 3Rd Shift9802--01 ~ 9911--01; AT.F4; L5 |
31762-31X01 |
US $1.73 |
||
|
31762U
|
31762U
3176231X02 Spring-Valve, Shift9802--01 ~ 9911--01; AT.F4; L6 |
3176231X02 |
US $1.73 |
||
|
31762UA
|
31762UA
31762-31X01 Spring-2Nd & 3Rd Shift9802--01 ~ 9911--01; AT.F4; L5 |
31762-31X01 |
US $1.73 |
||
|
31762UB
|
31762UB
3176231X02 Spring-Valve, Shift9802--01 ~ 9911--01; AT.F4; L6 |
3176231X02 |
US $1.73 |
||
|
31766N
|
31766N
31766-31X00 Valve-3Rd & 4Th Shift9802--01 ~ 9911--01; AT.F4; L4 |
31766-31X00 |
US $10.80 |
||
|
31766N
|
31766N
31766-31X01 Valve-2Nd & 3Rd Shift9802--01 ~ 9911--01; AT.F4; L5 |
31766-31X01 |
US $10.80 |
||
|
31766N
|
31766N
31766-31X02 Valve-1St & 2Nd Control9802--01 ~ 9911--01; AT.F4; L6 |
31766-31X02 |
US $14.40 |
||
|
31766N
|
31766N
31766-31X03 Valve-1St & 2Nd Shift9802--01 ~ 9911--01; AT.F4; L6 |
31766-31X03 |
US $10.80 |
||
|
31766NA
|
31766NA
31766-31X01 Valve-2Nd & 3Rd Shift9802--01 ~ 9911--01; AT.F4; L5 |
31766-31X01 |
US $10.80 |
||
|
31766NB
|
31766NB
31766-31X02 Valve-1St & 2Nd Control9802--01 ~ 9911--01; AT.F4; L6 |
31766-31X02 |
US $14.40 |
||
|
31766NC
|
31766NC
31766-31X03 Valve-1St & 2Nd Shift9802--01 ~ 9911--01; AT.F4; L6 |
31766-31X03 |
US $10.80 |
||
|
31773M
|
31773M
31773-31X00 Plug-3Rd & 4Th Shift9802--01 ~ 9911--01; AT.F4; L4 |
31773-31X00 |
US $17.71 |
||
|
31773M
|
31773M
31773-31X01 Plug9802--01 ~ 9911--01; AT.F4; L4 |
31773-31X01 |
US $7.34 |
||
|
31773M
|
31773M
31773-31X02 Plug9802--01 ~ 9911--01; AT.F4; L5 |
31773-31X02 |
US $5.18 |
||
|
31773M
|
31773M
31773-31X03 Plug9802--01 ~ 9911--01; AT.F4; L7 |
31773-31X03 |
US $5.62 |
||
|
31773MA
|
31773MA
31773-31X01 Plug9802--01 ~ 9911--01; AT.F4; L4 |
31773-31X01 |
US $7.34 |
||
|
31773MB
|
31773MB
31773-31X02 Plug9802--01 ~ 9911--01; AT.F4; L5 |
31773-31X02 |
US $5.18 |
||
|
31773MC
|
31773MC
31773-31X03 Plug9802--01 ~ 9911--01; AT.F4; L7 |
31773-31X03 |
US $5.62 |
||
|
31773N
|
31773N
31845-31X00 Plug9802--01 ~ 9911--01; AT.F4; L4 |
31845-31X00 |
US $6.19 |
||
|
31773N
|
31773N
31845-31X01 Plug9802--01 ~ 9911--01; AT.F4; L4 |
31845-31X01 |
US $6.19 |
||
|
31773N
|
31773N
31845-31X01 Plug9802--01 ~ 9911--01; AT.F4; L5 |
31845-31X01 |
US $6.19 |
||
|
31773N
|
31773N
31845-27X62 Plug9802--01 ~ 9911--01; AT.F4; L6 |
31845-27X62 |
US $7.34 |
||
|
31773N
|
31773N
31845-31X03 Plug9802--01 ~ 9911--01; AT.F4; L7 |
31845-31X03 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X04 Plug-Pressure Modifier9802--01 ~ 9911--01; AT.F4; L8 |
31845-31X04 |
US $2.45 |
||
|
31773N
|
31773N
31845-27X62 Plug9802--01 ~ 9911--01; AT.F4; L10 |
31845-27X62 |
US $7.34 |
||
|
31773N
|
31773N
31845-31X05 Plug9802--01 ~ 9911--01; AT.F4; L10 |
31845-31X05 |
US $5.18 |
||
|
31773N
|
31773N
31845-27X61 Plug-Checking Ball9802--01 ~ 9911--01; AT.F4; L12 |
31845-27X61 |
US $4.18 |
||
|
31773N
|
31773N
31845-27X61 Plug-Checking Ball9802--01 ~ 9911--01; AT.F4; L14 |
31845-27X61 |
US $4.18 |
||
|
31773N
|
31773N
31845-31X07 Plug9802--01 ~ 9911--01; AT.F4; L15 |
31845-31X07 |
US $2.45 |
||
|
31773N
|
31773N
31845-27X62 Plug9802--01 ~ 9911--01; AT.F4; L16 |
31845-27X62 |
US $7.34 |
||
|
31773NA
|
31773NA
31845-31X01 Plug9802--01 ~ 9911--01; AT.F4; L4 |
31845-31X01 |
US $6.19 |
||
|
31773NB
|
31773NB
31845-31X01 Plug9802--01 ~ 9911--01; AT.F4; L5 |
31845-31X01 |
US $6.19 |
||
|
31773NB
|
31773NB
31845-31X01 Plug9802--01 ~ 9911--01; AT.F4; L5 |
31845-31X01 |
US $6.19 |
||
|
31773NC
|
31773NC
31845-27X62 Plug9802--01 ~ 9911--01; AT.F4; L6 |
31845-27X62 |
US $7.34 |
||
|
31773ND
|
31773ND
31845-31X03 Plug9802--01 ~ 9911--01; AT.F4; L7 |
31845-31X03 |
US $2.45 |
||
|
31801
|
31801
31801-31X00 Valve-Throttle Vacuum9802--01 ~ 9911--01; AT.F4; L1 |
31801-31X00 |
US $6.19 |
||
|
31802
|
31802
31802-31X06 Spring-Throttle Relief9802--01 ~ 9911--01; AT.F4; L1 |
31802-31X06 |
US $1.73 |
||
|
31803
|
31803
31803-31X00 Valve-Detent9802--01 ~ 9911--01; AT.F4; L1 |
31803-31X00 |
US $19.44 |
||
|
31805
|
31805
31805-31X00 Plug-Throttle9802--01 ~ 9911--01; AT.F4; L1 |
31805-31X00 |
US $6.19 |
||
|
31829M
|
31829M
32829-26760 Ball-Check9802--01 ~ 9911--01; AT.F4 |
32829-26760 |
US $0.82 |
||
|
31879
|
31879
31879-31X00 Connector9802--01 ~ 9911--01; AT.F4 |
31879-31X00 |
US $9.07 |
||
|
31940N
|
31940N
31940-31X04 Solenoid Assy-Control9802--01 ~ 9911--01; AT.F4 |
31940-31X04 |
US $95.90 |
||
|
31940V
|
31940V
3152641X09 Seal-O Ring9802--01 ~ 9911--01; AT.F4 |
3152641X09 |
US $2.36 |
||
|
31940V
|
31940V
3152631X12 Seal-O Ring9802--01 ~ 9911--01; AT.F4 |
3152631X12 |
US $2.78 |
||
|
31940VA
|
31940VA
3152631X12 Seal-O Ring9802--01 ~ 9911--01; AT.F4 |
3152631X12 |
US $2.78 |
||
|
31941E
|
31941E
3150680X11 Ring-Snap9802--01 ~ 9911--01; AT.F4 |
3150680X11 |
US $1.73 |
||
