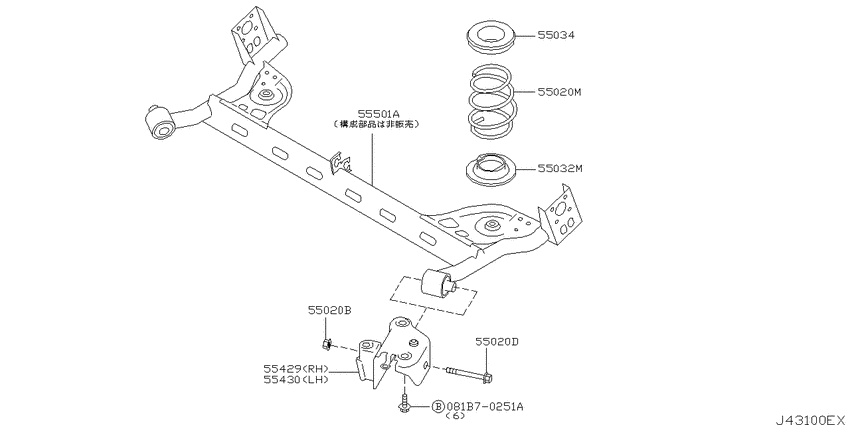

Rear suspension (2006-12-01 ~ ; ビーム & スプリング; 4WD.CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 4WD
- transmission
- AT
- grade
- SX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B70251A
|
081B70251A
081B70251A BOLTFLANGE |
081B70251A |
US $0.46 |
||
|
55020B
|
55020B
01125-N0031 Bolt0612--01 ~ ; 4WD.CR14DE |
01125-N0031 |
from US $2.35 |
||
|
55020B
|
55020B
0122500072 NUT0210--01 ~ 0305--01; 4WD.CR14DE |
0122500072 |
US $1.04 |
||
|
55020D
|
55020D
55222-AX001 Bolt0210--01 ~ 0305--01; 4WD.CR14DE |
55222-AX001 |
US $2.45 |
||
|
55020D
|
55020D
55222AX00B Bolt0612--01 ~ ; 4WD.CR14DE |
55222AX00B |
US $2.45 |
||
|
55020M
|
55020M
55020-3U302 Spring-Rear Suspension0210--01 ~ 0305--01; 4WD.CR14DE |
55020-3U302 |
US $75.74 |
||
|
55032M
|
55032M
55032AX003 Seat-Rubber, Rear Spring Lower0210--01 ~ 0305--01; 4WD.CR14DE |
55032AX003 |
from US $9.56 |
||
|
55034
|
55034
55034AX001 Seat-Rubber, Rear Spring Upper0210--01 ~ 0305--01; 4WD.CR14DE |
55034AX001 |
from US $12.20 |
||
|
55429
|
55429
55429-AX400 Bracket Assy-Rear Suspension Arm, Rh0210--01 ~ 0305--01; 4WD.CR14DE |
55429-AX400 |
US $51.26 |
||
|
55429
|
55429
55429ED000 Bracket Assy-Rear Suspension Arm, Rh0412--01 ~ 0505--01; 4WD.CR14DE |
55429ED000 |
US $46.51 |
||
|
55430
|
55430
55430AX400 Bracket Assy-Rear Suspension Arm, Lh0210--01 ~ 0305--01; 4WD.CR14DE |
55430AX400 |
US $51.26 |
||
|
55430
|
55430
55430ED000 Bracket Assy-Rear Suspension Arm, Lh0412--01 ~ 0505--01; 4WD.CR14DE |
55430ED000 |
US $46.51 |
||
|
55501A
|
55501A
55501-3U402 Beam Compl-Rear Suspension0210--01 ~ 0305--01; 4WD.CR14DE |
55501-3U402 |
US $692.42 |
||
|
55501A
|
55501A
555014V30A Beam Compl-Rear Suspension0505--01 ~ 0612--01; 4WD.CR14DE |
555014V30A |
US $763.22 |
||
|
55501A
|
55501A
555014V30B Beam Compl-Rear Suspension0612--01 ~ ; 4WD.CR14DE |
555014V30B |
US $698.09 |
