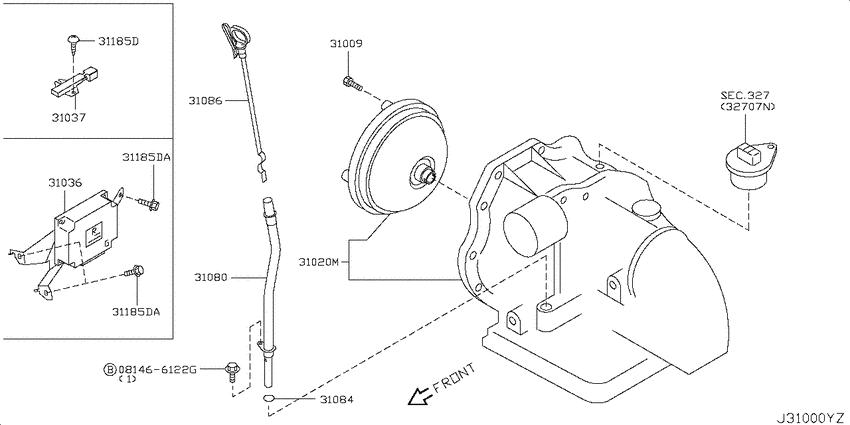

Auto transmission,transaxle & fitting (2004-12-01 ~ 2005-05-01; &アッセンブリー&フィッティング パーツ; AT) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2004 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 4WD
- transmission
- AT
- grade
- AX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt |
081466122G |
from US $0.67 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock0305--01 ~ 0505--01; AT |
3100921X00 |
from US $2.22 |
||
|
31020M
|
31020M
310203BX14 Transaxle Assy-Automatic0305--01 ~ 0505--01; 4WD.AT |
310203BX14 |
US $4,704 |
||
|
31020M
|
31020M
31020-3CX0E Transaxle Assy-Automatic0505--01 ~ 0612--01; 4WD.AT |
31020-3CX0E |
US $4,704 |
||
|
31036
|
31036
31036-3U301 Control Unit-Shift0305--01 ~ 0410--01; 4WD.AT |
31036-3U301 |
US $722.16 |
||
|
31036
|
31036
310363U30A Control Unit-Shift0410--01 ~ 0505--01; 4WD.AT |
310363U30A |
US $722.16 |
||
|
31036
|
31036
31036-4V20A Control Unit-Shift0505--01 ~ 0612--01; 4WD.AT |
31036-4V20A |
US $722.16 |
||
|
31037
|
31037
31037-0E600 Resistor Assy-Auto Transmission0305--01 ~ 0505--01; AT |
31037-0E600 |
from US $39.31 |
||
| replacement | |||||
|
31037
|
31037
31037-AN100 Resistor Assy-Auto Transmission0305--01 ~ 0505--01; AT |
31037-AN100 |
from US $39.31 |
||
|
31080
|
31080
31080-2U300 Pipe Assy-Oil Charging0305--01 ~ 0505--01; AT |
31080-2U300 |
US $40.90 |
||
|
31084
|
31084
31084M7500 Seal-O Ring0305--01 ~ 0501--01; AT |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
31084M750A Seal-O Ring0501--01 ~ 0505--01; AT |
31084M750A |
from US $1.67 |
||
|
31086
|
31086
31086AX000 Gauge Assy-Oil Level0305--01 ~ 0505--01; AT |
31086AX000 |
US $14.11 |
||
|
31185D
|
31185D
0145600031 SCREW0305--01 ~ 0505--01; AT |
0145600031 |
from US $1.05 |
||
|
31185D
|
31185D
01125-03621 SCREW0412--01 ~ 0505--01; AT |
01125-03621 |
US $1.73 |
||
|
31185DA
|
31185DA
01125-03621 SCREW0412--01 ~ 0505--01; AT |
01125-03621 |
US $1.73 |
||
|
31185DA
|
31185DA
01125-03621 SCREW0412--01 ~ 0505--01; AT |
01125-03621 |
US $1.73 |
||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
