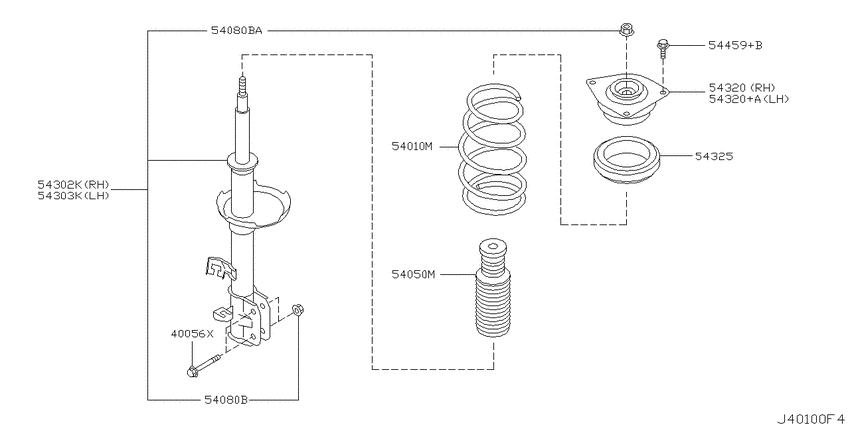

Front suspension (2003-05-01 ~ 2005-05-01; ストラット; 4WD.CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2004 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 4WD
- transmission
- AT
- grade
- AX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40056X
|
40056X
40056-AX000 Bolt-Knuckle Arm0305--01 ~ 0505--01; 4WD.CR14DE |
40056-AX000 |
US $5.04 |
||
|
54010M
|
54010M
540103U303 Spring-Front0305--01 ~ 0505--01; 4WD.CR14DE |
540103U303 |
US $100.37 |
||
|
54050M
|
54050M
54050AZ100 Bumper Assy-Bound0306--01 ~ 0505--01; 4WD.CR14DE |
54050AZ100 |
from US $23.42 |
||
|
54080B
|
54080B
0122500072 NUT0305--01 ~ 0505--01; 4WD.CR14DE |
0122500072 |
US $1.04 |
||
|
54080B
|
54080B
0122300301 NUT0305--01 ~ 0505--01; 4WD.CR14DE |
0122300301 |
from US $2 |
||
|
54080BA
|
54080BA
0122300301 NUT0305--01 ~ 0505--01; 4WD.CR14DE |
0122300301 |
from US $2 |
||
|
54302K
|
54302K
543023U025 Strut Kit-Front Suspension, Rh0305--01 ~ 0505--01; *4WD.CR14DE.(EX+AX); ｺｸｲﾝNO 54302-3U004 |
543023U025 |
US $277.92 |
||
|
54302K
|
54302K
54302-3U026 Strut Kit-Front Suspension, Rh0305--01 ~ 0505--01; 4WD.CR14DE.(EX+AX); ｺｸｲﾝNO 54302-3U005 |
54302-3U026 |
US $277.92 |
||
|
54302K
|
54302K
E43024V00A Strut Kit-Front Suspension, Rh0505--01 ~ 0612--01; 4WD.CR14DE; COINED.54302-4V00A |
E43024V00A |
US $277.92 |
||
|
54303K
|
54303K
543033U025 Strut Kit-Front Suspension, Lh0305--01 ~ 0505--01; *4WD.CR14DE.(EX+AX); ｺｸｲﾝNO 54302-3U004 |
543033U025 |
US $277.92 |
||
|
54303K
|
54303K
54303-3U026 Strut Kit-Front Suspension, Lh0305--01 ~ 0505--01; 4WD.CR14DE.(EX+AX); ｺｸｲﾝNO 54303-3U005 |
54303-3U026 |
US $277.92 |
||
|
54303K
|
54303K
E43034V00A Strut Kit-Front Suspension, Lh0505--01 ~ 0612--01; 4WD.CR14DE; COINED.54303-4V00A |
E43034V00A |
US $277.92 |
||
|
54320
|
54320
54320AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; 4WD.CR14DE |
54320AX001 |
— | ||
| replacement | |||||
|
54320
|
54320
54320-AX00A Insulator-strut0311--01 ~ 0505--01; 4WD.CR14DE |
54320-AX00A |
US $74.30 |
||
|
54320
|
54320
54320ED001
Insulator Assy-Strut Mounting
0505--01 ~ 0612--01; 4WD.CR14DE |
54320ED001 |
— | ||
| replacement | |||||
|
54320
|
54320
54320-1FE0A Insulator Assy-Strut Mounting0505--01 ~ 0612--01; 4WD.CR14DE |
54320-1FE0A |
US $52.04 |
||
|
54320
|
54320
54321AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; 4WD.CR14DE |
54321AX001 |
— | ||
| replacement | |||||
|
54320
|
54320
54321-AX00A Insulator-strut0311--01 ~ 0505--01; 4WD.CR14DE |
54321-AX00A |
US $74.30 |
||
|
54320
|
54320
54321ED001 Insulator Assy-Strut Mounting0505--01 ~ 0612--01; 4WD.CR14DE |
54321ED001 |
US $46.22 |
||
| replacement | |||||
|
54320
|
54320
54321-1FE0A Insulator Assy-Strut Mounting0505--01 ~ 0612--01; 4WD.CR14DE |
54321-1FE0A |
from US $47.68 |
||
|
54320+A
|
54320+A
54321AX001
Insulator Assy-Strut Mounting
0311--01 ~ 0505--01; 4WD.CR14DE |
54321AX001 |
— | ||
| replacement | |||||
|
54320+A
|
54320+A
54321-AX00A Insulator-strut0311--01 ~ 0505--01; 4WD.CR14DE |
54321-AX00A |
US $74.30 |
||
|
54320+A
|
54320+A
54321ED001 Insulator Assy-Strut Mounting0505--01 ~ 0612--01; 4WD.CR14DE |
54321ED001 |
US $46.22 |
||
| replacement | |||||
|
54320+A
|
54320+A
54321-1FE0A Insulator Assy-Strut Mounting0505--01 ~ 0612--01; 4WD.CR14DE |
54321-1FE0A |
from US $47.68 |
||
|
54325
|
54325
54325AX000 Bearing-Strut Mounting0305--01 ~ 0505--01; 4WD.CR14DE |
54325AX000 |
US $65.81 |
||
|
54459+B
|
54459+B
54459-AX005 Bolt0305--01 ~ 0505--01; 4WD.CR14DE |
54459-AX005 |
US $4.18 |
||
