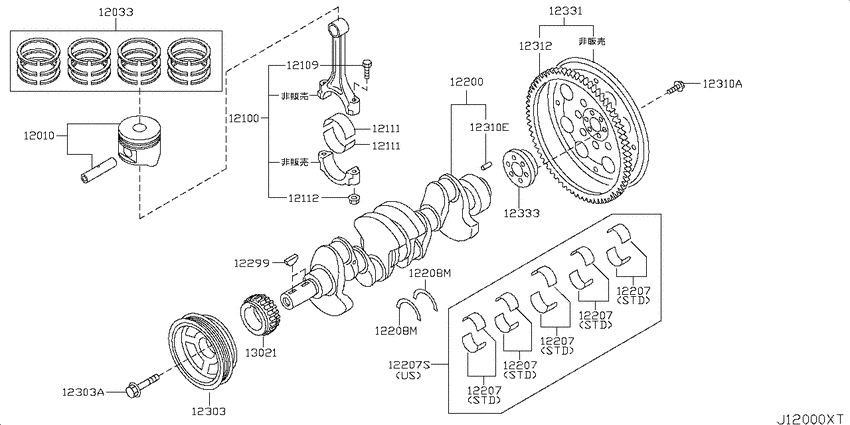

Piston,crankshaft & flywheel (2005-05-01 ~ 2006-12-01; 主運動部; CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2004 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 4WD
- transmission
- AT
- grade
- AX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12010
|
12010
12010-AX500 Piston, W/pin0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-AX500 |
US $95.77 |
||
|
12010
|
12010
12010-AX501
Piston, W/pin
0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-AX501 |
— | ||
|
12010
|
12010
12010-AX502 Piston, W/pin0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12010-AX502 |
US $70.27 |
||
|
12010
|
12010
12010-AX571 Piston, W/pin0305--01 ~ 0505--01; CR14DE; OS=0.20 |
12010-AX571 |
US $70.27 |
||
|
12033
|
12033
12033-AX20A Ring Set-Piston0305--01 ~ 0505--01; CR14DE; STD |
12033-AX20A |
from US $72.52 |
||
|
12033
|
12033
12035-AX20A Ring Set-Piston0305--01 ~ 0505--01; CR14DE; OS=0.20 |
12035-AX20A |
US $198.72 |
||
|
12100
|
12100
12100-AX201 Rod Compl-Connecting0305--01 ~ 0505--01; CR14DE |
12100-AX201 |
US $149.76 |
||
|
12109
|
12109
12109-AN200 Bolt-Connecting Rod0305--01 ~ 0505--01; CR14DE |
12109-AN200 |
US $4.85 |
||
|
12111
|
12111
12111-AX010 Bearing-Connecting Rod0305--01 ~ 0505--01; CR14DE; STD |
12111-AX010 |
from US $4.72 |
||
|
12111
|
12111
12117-AX010 Bearing-Connecting Rod0305--01 ~ 0505--01; CR14DE; US=0.25. |
12117-AX010 |
US $6.48 |
||
|
12111
|
12111
12111-AX010 Bearing-Connecting Rod0305--01 ~ 0505--01; CR14DE; STD |
12111-AX010 |
from US $4.72 |
||
|
12111
|
12111
12117-AX010 Bearing-Connecting Rod0305--01 ~ 0505--01; CR14DE; US=0.25. |
12117-AX010 |
US $6.48 |
||
|
12112
|
12112
12112-42L00 Nut-Connecting Rod0305--01 ~ 0505--01; CR14DE |
12112-42L00 |
from US $1.13 |
||
|
12200
|
12200
12200-AX200 Crankshaft Assy0305--01 ~ 0505--01; CR14DE |
12200-AX200 |
US $948.72 |
||
|
12207
|
12207
12207-41B11 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B11 |
US $27.86 |
||
|
12207
|
12207
12207-41B12 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B12 |
US $27.50 |
||
|
12207
|
12207
12207-41B13 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B13 |
US $27.50 |
||
|
12207
|
12207
12207-41B14 Bearing-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; STD ｸﾞﾚ-ﾄﾞ 4,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B14 |
US $28.40 |
||
|
12207
|
12207
12207-41B15 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 5,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B15 |
US $27.50 |
||
|
12207
|
12207
12207-41B16 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 6,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B16 |
US $27.50 |
||
|
12207
|
12207
12207-41B17 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚｰﾄﾞ 7 |
12207-41B17 |
US $27.50 |
||
|
12207
|
12207
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12207
|
12207
12207-41B11 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B11 |
US $27.86 |
||
|
12207
|
12207
12207-41B12 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B12 |
US $27.50 |
||
|
12207
|
12207
12207-41B13 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B13 |
US $27.50 |
||
|
12207
|
12207
12207-41B14 Bearing-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; STD ｸﾞﾚ-ﾄﾞ 4,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B14 |
US $28.40 |
||
|
12207
|
12207
12207-41B15 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 5,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B15 |
US $27.50 |
||
|
12207
|
12207
12207-41B16 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 6,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B16 |
US $27.50 |
||
|
12207
|
12207
12207-41B17 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚｰﾄﾞ 7 |
12207-41B17 |
US $27.50 |
||
|
12207
|
12207
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12207
|
12207
12207-41B11 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B11 |
US $27.86 |
||
|
12207
|
12207
12207-41B12 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B12 |
US $27.50 |
||
|
12207
|
12207
12207-41B13 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B13 |
US $27.50 |
||
|
12207
|
12207
12207-41B14 Bearing-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; STD ｸﾞﾚ-ﾄﾞ 4,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B14 |
US $28.40 |
||
|
12207
|
12207
12207-41B15 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 5,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B15 |
US $27.50 |
||
|
12207
|
12207
12207-41B16 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 6,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B16 |
US $27.50 |
||
|
12207
|
12207
12207-41B17 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚｰﾄﾞ 7 |
12207-41B17 |
US $27.50 |
||
|
12207
|
12207
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12207
|
12207
12207-41B11 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B11 |
US $27.86 |
||
|
12207
|
12207
12207-41B12 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B12 |
US $27.50 |
||
|
12207
|
12207
12207-41B13 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B13 |
US $27.50 |
||
|
12207
|
12207
12207-41B14 Bearing-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; STD ｸﾞﾚ-ﾄﾞ 4,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B14 |
US $28.40 |
||
|
12207
|
12207
12207-41B15 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 5,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B15 |
US $27.50 |
||
|
12207
|
12207
12207-41B16 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 6,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B16 |
US $27.50 |
||
|
12207
|
12207
12207-41B17 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚｰﾄﾞ 7 |
12207-41B17 |
US $27.50 |
||
|
12207
|
12207
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12207
|
12207
12207-41B11 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 1. ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B11 |
US $27.86 |
||
|
12207
|
12207
12207-41B12 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B12 |
US $27.50 |
||
|
12207
|
12207
12207-41B13 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 3,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B13 |
US $27.50 |
||
|
12207
|
12207
12207-41B14 Bearing-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; STD ｸﾞﾚ-ﾄﾞ 4,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B14 |
US $28.40 |
||
|
12207
|
12207
12207-41B15 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 5,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B15 |
US $27.50 |
||
|
12207
|
12207
12207-41B16 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚ-ﾄﾞ 6,ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
12207-41B16 |
US $27.50 |
||
|
12207
|
12207
12207-41B17 Bearing-Crankshaft0305--01 ~ 0505--01; CR14DE; STD ｸﾞﾚｰﾄﾞ 7 |
12207-41B17 |
US $27.50 |
||
|
12207
|
12207
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12207S
|
12207S
1220841B26 Bearing Set-Crankshaft0407--01 ~ 0505--01; CR14DE.AX; US=0.25. |
1220841B26 |
from US $28.99 |
||
|
12208M
|
12208M
12280-AX000 Washer-Thrust0305--01 ~ 0505--01; CR14DE |
12280-AX000 |
from US $4.96 |
||
|
12208M
|
12208M
12280-AX000 Washer-Thrust0305--01 ~ 0505--01; CR14DE |
12280-AX000 |
from US $4.96 |
||
|
12299
|
12299
12299-AX400 Shim-Crank Sprocket0407--01 ~ 0505--01; CR14DE.AX |
12299-AX400 |
from US $0.54 |
||
|
12303
|
12303
12303-AX400 Pulley-Crankshaft0305--01 ~ 0504--01; 4WD.CR14DE |
12303-AX400 |
US $231.84 |
||
|
12303
|
12303
12303AX40A Pulley-Crankshaft0504--01 ~ 0505--01; 4WD.CR14DE |
12303AX40A |
US $234.72 |
||
|
12303
|
12303
12309-77A10 Bolt-Pulley, Crankshaft0305--01 ~ 0505--01; CR14DE |
12309-77A10 |
US $5.18 |
||
| replacement | |||||
|
12303
|
12303
1230977A1A Bolt-Pulley, Crankshaft0305--01 ~ 0505--01; CR14DE |
1230977A1A |
US $5.18 |
||
|
12303A
|
12303A
12309-77A10 Bolt-Pulley, Crankshaft0305--01 ~ 0505--01; CR14DE |
12309-77A10 |
US $5.18 |
||
| replacement | |||||
|
12303A
|
12303A
1230977A1A Bolt-Pulley, Crankshaft0305--01 ~ 0505--01; CR14DE |
1230977A1A |
US $5.18 |
||
|
12310A
|
12310A
1231542B00 Bolt-Flywheel0305--01 ~ 0505--01; CR14DE |
1231542B00 |
US $5.18 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel0305--01 ~ 0505--01; CR14DE |
1231310600 |
from US $0.31 |
||
|
12312
|
12312
12312-77A10 Gear-Ring0305--01 ~ 0505--01; CR14DE |
12312-77A10 |
US $48.67 |
||
|
12331
|
12331
12331-AX000 Plate Assy-Drive & Gear0305--01 ~ 0505--01; CR14DE |
12331-AX000 |
US $148.32 |
||
|
12331
|
12331
12331AX00A Plate Assy-Drive & Gear0608--01 ~ 0612--01; CR14DE |
12331AX00A |
US $148.32 |
||
|
12333
|
12333
12333AP010 Plate-Crankshaft To Converter0305--01 ~ 0505--01; CR14DE |
12333AP010 |
US $23.18 |
||
|
13021
|
13021
13021AX000 Sprocket-Crankshaft0305--01 ~ 0505--01; CR14DE |
13021AX000 |
US $33.41 |
||
