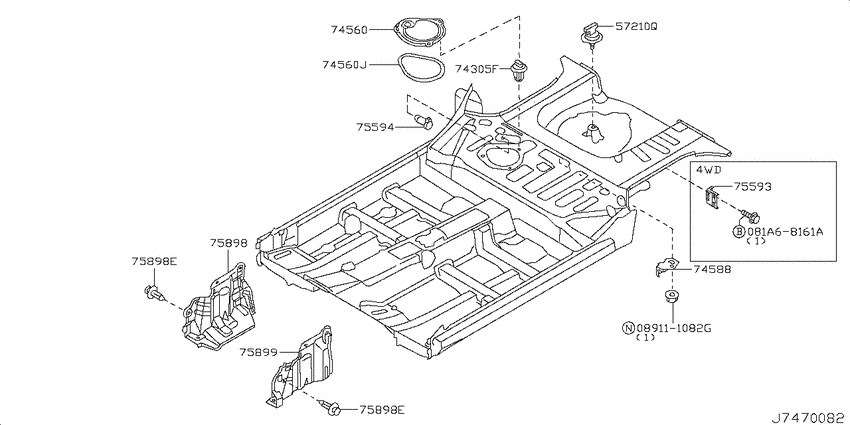

Floor fitting (2003-05-01 ~ 2005-05-01; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A68161A
|
081A68161A
081A68161A
BOLTFLANGE
|
081A68161A |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.46 |
||
|
57210Q
|
57210Q
74810-4M400
Clamp-Spare Tire
0210--01 ~ 0305--01; W.2WD |
74810-4M400 |
— | ||
| replacement | |||||
|
57210Q
|
57210Q
748104M40A Clamp-Spare Tire0210--01 ~ 0305--01; W.2WD |
748104M40A |
US $8.18 |
||
|
74305F
|
74305F
623184M401 Clip0210--01 ~ 0305--01; W |
623184M401 |
US $2.45 |
||
|
74560
|
74560
74848AX030 Cover-Inspection Hole0210--01 ~ 0305--01; W |
74848AX030 |
US $27.94 |
||
|
74560
|
74560
74847-AX000 Seal-Inspection Hole Cover0210--01 ~ 0305--01; W |
74847-AX000 |
US $4.32 |
||
|
74560
|
74560
74560AX015 Bracket-Muffler Mounting0210--01 ~ 0305--01; W.2WD |
74560AX015 |
US $14.69 |
||
|
74560J
|
74560J
74847-AX000 Seal-Inspection Hole Cover0210--01 ~ 0305--01; W |
74847-AX000 |
US $4.32 |
||
|
74588
|
74588
75592-AX010 Bracket-Brake Hose, Rear0210--01 ~ 0305--01; W.2WD |
75592-AX010 |
US $6.05 |
||
|
75594
|
75594
75594-41B00 Protecter-Evap Hose0210--01 ~ 0305--01; W |
75594-41B00 |
US $9.50 |
||
|
75898
|
75898
75898AX000 Cover-Front Under, Rh0210--01 ~ 0305--01; W |
75898AX000 |
US $55.73 |
||
|
75898
|
75898
0155309321 CLIP0210--01 ~ 0305--01; W |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP0210--01 ~ 0305--01; W |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP0210--01 ~ 0305--01; W |
0155309321 |
US $0.97 |
||
|
75899
|
75899
75899AX000 Cover-Front Under, Lh0210--01 ~ 0305--01; W |
75899AX000 |
US $55.73 |
||
