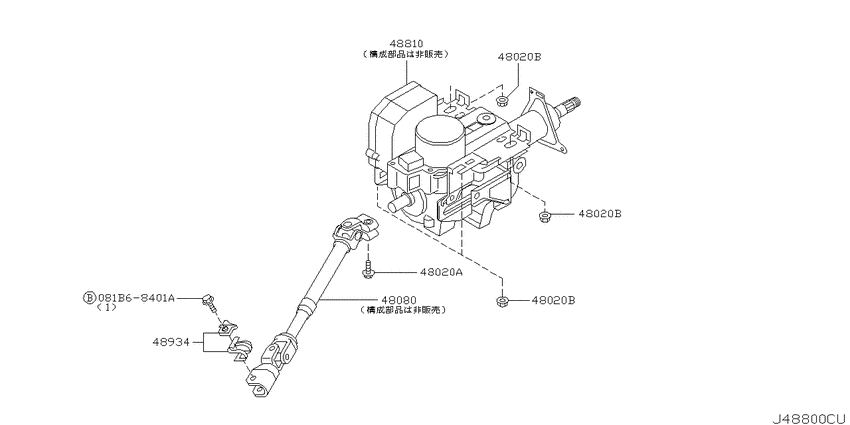

Steering column (2002-10-01 ~ 2003-05-01; CR14DE) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SX
- body
- W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B68401A
|
081B68401A
081B68401A
BOLT
|
081B68401A |
— | ||
|
48020A
|
48020A
489353U010 Bolt0305--01 ~ 0505--01; CR14DE |
489353U010 |
from US $0.43 |
||
|
48020A
|
48020A
48935AX001 Bolt0210--01 ~ 0305--01; CR14DE |
48935AX001 |
US $2.45 |
||
|
48020B
|
48020B
0122500481
NUT
0210--01 ~ 0305--01; CR14DE |
0122500481 |
— | ||
|
48020B
|
48020B
0122500481
NUT
0210--01 ~ 0305--01; CR14DE |
0122500481 |
— | ||
|
48020B
|
48020B
0122500481
NUT
0210--01 ~ 0305--01; CR14DE |
0122500481 |
— | ||
|
48080
|
48080
480803U000 Joint Assy-Steering, Lower0210--01 ~ 0305--01; CR14DE |
480803U000 |
US $244.80 |
||
|
48080
|
48080
48080-3U010 Joint Assy-Steering, Lower0305--01 ~ 0505--01; CR14DE |
48080-3U010 |
US $264.96 |
||
|
48810
|
48810
48810-3U001 Column Assy-Steering, Upper0210--01 ~ 0305--01; CR14DE |
48810-3U001 |
US $1,180.94 |
||
|
48934
|
48934
48933AX010 Spring-Steering Column0210--01 ~ 0305--01; CR14DE |
48933AX010 |
US $10.37 |
