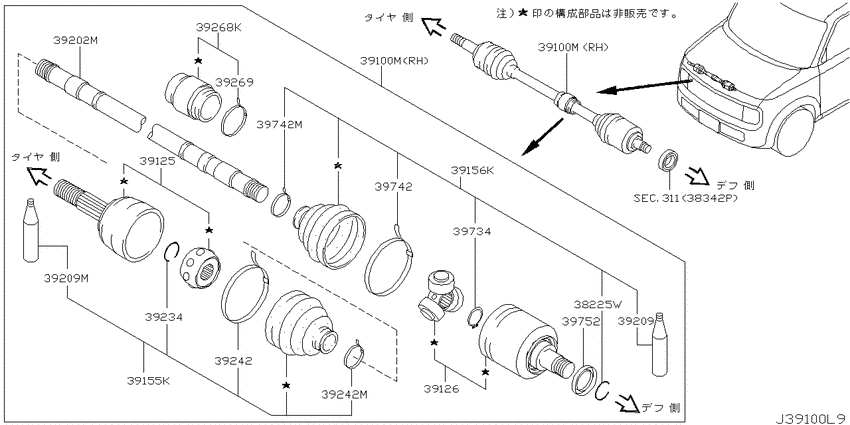

Front drive shaft (ff) (2002-10-01 ~ 2003-05-01; 右側; 2WD.CR14DE.AT +CR14DE.MCVT) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- EX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38225W
|
38225W
3822565A05 Clip-Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
3822565A05 |
from US $0.54 |
||
|
38225W
|
38225W
3822565A05 Clip-Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
3822565A05 |
from US $0.54 |
||
|
39100M
|
39100M
39100-3U505 Shaft Assy-Front Drive, Rh0210--01 ~ 0301--01; CR14DE.MCVT |
39100-3U505 |
US $923.23 |
||
|
39100M
|
39100M
391003U507 Shaft Assy-Front Drive, Rh0301--01 ~ 0305--01; CR14DE.MCVT |
391003U507 |
US $1,008.19 |
||
|
39100M
|
39100M
39100-3U505 Shaft Assy-Front Drive, Rh0210--01 ~ 0301--01; CR14DE.MCVT |
39100-3U505 |
US $923.23 |
||
|
39100M
|
39100M
391003U507 Shaft Assy-Front Drive, Rh0301--01 ~ 0305--01; CR14DE.MCVT |
391003U507 |
US $1,008.19 |
||
|
39125
|
39125
39211-3U000 Joint Assy-Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39211-3U000 |
US $490.76 |
||
|
39125
|
39125
39211-3U000 Joint Assy-Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39211-3U000 |
US $490.76 |
||
|
39126
|
39126
39711-3U000 Joint Assy-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39711-3U000 |
from US $180.54 |
||
|
39126
|
39126
39711-3U000 Joint Assy-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39711-3U000 |
from US $180.54 |
||
|
39155K
|
39155K
392413U025 Repair Kit-Dust Boot, Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
392413U025 |
US $81.36 |
||
|
39155K
|
39155K
392413U025 Repair Kit-Dust Boot, Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
392413U025 |
US $81.36 |
||
|
39156K
|
39156K
397413U025 Repair Kit-Dust B00T, Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
397413U025 |
US $61.63 |
||
|
39156K
|
39156K
397413U025 Repair Kit-Dust B00T, Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
397413U025 |
US $61.63 |
||
|
39202M
|
39202M
39204-3U500 Shaft-Front Drive, Rh0210--01 ~ 0305--01; CR14DE.MCVT |
39204-3U500 |
US $241.92 |
||
|
39209
|
39209
C9709-AN012 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9709-AN012 |
US $33.98 |
||
|
39209
|
39209
C9709-AN012 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9709-AN012 |
US $33.98 |
||
|
39209
|
39209
C9209AN015 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9209AN015 |
US $20.02 |
||
|
39209
|
39209
C9209AN015 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9209AN015 |
US $20.02 |
||
|
39209M
|
39209M
C9209AN015 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9209AN015 |
US $20.02 |
||
|
39209M
|
39209M
C9209AN015 Grease-Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
C9209AN015 |
US $20.02 |
||
|
39234
|
39234
39234-3U001 Circlip-Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39234-3U001 |
US $13.10 |
||
|
39234
|
39234
39234-3U001 Circlip-Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39234-3U001 |
US $13.10 |
||
|
39242
|
39242
39242-3U001 Band-Boot, Drive Shaft Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U001 |
US $15.70 |
||
|
39242
|
39242
39242-3U001 Band-Boot, Drive Shaft Outer0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U001 |
US $15.70 |
||
|
39242
|
39242
39242-3U010 Band-Boot, Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U010 |
US $13.10 |
||
|
39242
|
39242
39242-3U010 Band-Boot, Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U010 |
US $13.10 |
||
|
39242M
|
39242M
39242-3U010 Band-Boot, Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U010 |
US $13.10 |
||
|
39242M
|
39242M
39242-3U010 Band-Boot, Drive Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-3U010 |
US $13.10 |
||
|
39268K
|
39268K
39268-3U525 Damper Kit-Dynamic, Front Drive Shaft0301--01 ~ 0305--01; CR14DE.MCVT |
39268-3U525 |
US $39.89 |
||
|
39268K
|
39268K
39268-AX625 Damper Kit-Dynamic, Front Drive Shaft0210--01 ~ 0301--01; CR14DE.MCVT |
39268-AX625 |
US $52.70 |
||
|
39268K
|
39268K
39268-86E25 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT0210--01 ~ 0305--01; CR14DE.MCVT |
39268-86E25 |
US $47.95 |
||
| replacement | |||||
|
39268K
|
39268K
39268-86E26 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT0210--01 ~ 0305--01; CR14DE.MCVT |
39268-86E26 |
US $39.89 |
||
|
39269
|
39269
3926911A10 Band-Damper0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
3926911A10 |
US $9.50 |
||
|
39734
|
39734
39708-44B00 Ring-Snap0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39708-44B00 |
US $1.58 |
||
|
39734
|
39734
39708-44B00 Ring-Snap0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39708-44B00 |
US $1.58 |
||
|
39742
|
39742
39742-41B00 Band-Boot, Drive Shaft Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39742-41B00 |
US $4.03 |
||
|
39742
|
39742
39742-41B00 Band-Boot, Drive Shaft Inner0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39742-41B00 |
US $4.03 |
||
|
39742
|
39742
39242-11M05 Band-Dust Cover, Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-11M05 |
US $4.18 |
||
|
39742
|
39742
39242-11M05 Band-Dust Cover, Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-11M05 |
US $4.18 |
||
|
39742M
|
39742M
39242-11M05 Band-Dust Cover, Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-11M05 |
US $4.18 |
||
|
39742M
|
39742M
39242-11M05 Band-Dust Cover, Shaft0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39242-11M05 |
US $4.18 |
||
|
39752
|
39752
39752-77A10 Shield-Dust0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39752-77A10 |
US $4.03 |
||
|
39752
|
39752
39752-77A10 Shield-Dust0210--01 ~ 0305--01; 2WD.CR14DE.AT +CR14DE.MCVT |
39752-77A10 |
US $4.03 |
||
