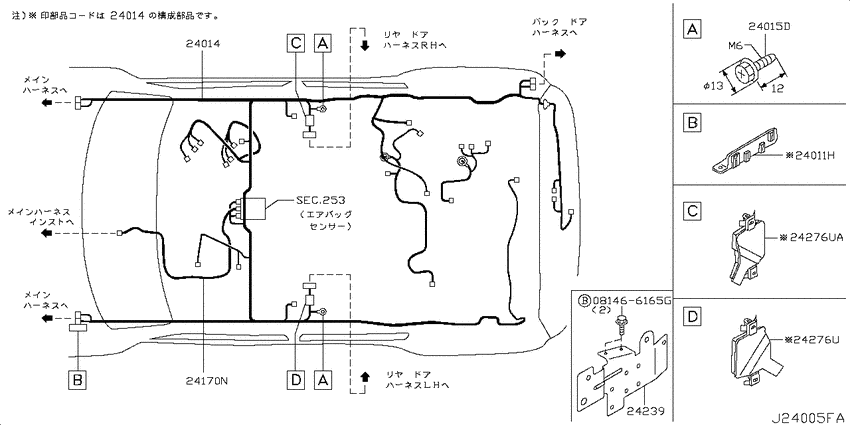

Wiring (2003-05-01 ~ 2005-05-01; ボディハーネス; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- EX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165G
|
081466165G
081466165G BOLTHEX |
081466165G |
from US $0.56 |
||
|
24011H
|
24011H
2434679900 Clip-Connector0210--01 ~ 0305--01; W |
2434679900 |
US $3.46 |
||
|
24014
|
24014
24014-3U001 Harness Assy-Body0210--01 ~ 0505--01; W.2WD.EX |
24014-3U001 |
US $1,195.10 |
||
|
24014
|
24014
24014-3U002 Harness Assy-Body0210--01 ~ 0305--01; *W.2WD |
24014-3U002 |
US $1,195.10 |
||
|
24014
|
24014
0145600411 SCREW0210--01 ~ 0305--01; W |
0145600411 |
from US $0.56 |
||
|
24014
|
24014
0145600411 SCREW0210--01 ~ 0305--01; W |
0145600411 |
from US $0.56 |
||
|
24015D
|
24015D
0145600411 SCREW0210--01 ~ 0305--01; W.2WD |
0145600411 |
from US $0.56 |
||
|
24170N
|
24170N
241703U000 Harness-Air Bag0210--01 ~ 0305--01; W |
241703U000 |
US $89.86 |
||
|
24239
|
24239
40385-AX001 Bracket-Harness0210--01 ~ 0305--01; CR14DE |
40385-AX001 |
US $26.06 |
||
|
24276U
|
24276U
24275-9E000 PROTECTOR-HARNESS0210--01 ~ 0305--01; W |
24275-9E000 |
from US $3.66 |
||
|
24276U
|
24276U
24275-9E005 PROTECTOR-HARNESS0210--01 ~ 0305--01; W |
24275-9E005 |
US $5.18 |
||
|
24276UA
|
24276UA
24275-9E005 PROTECTOR-HARNESS0210--01 ~ 0305--01; W |
24275-9E005 |
US $5.18 |
||
|
