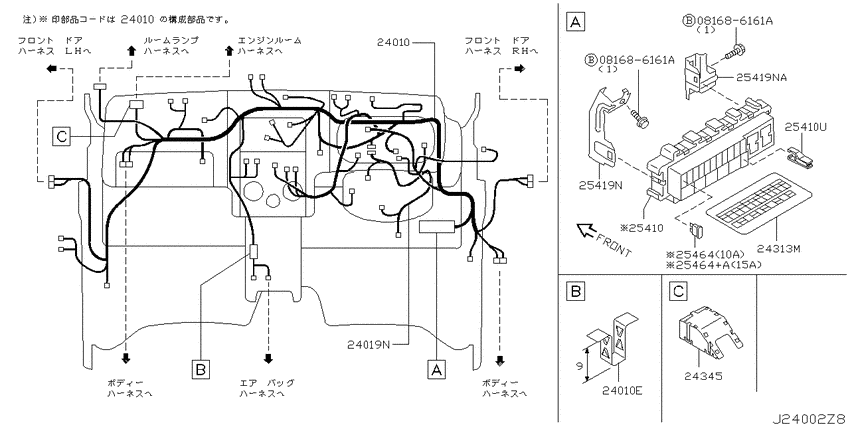

Wiring (2002-10-01 ~ 2003-05-01; メインハーネス; W) Diagram Nissan CUBE/CUBE CUBIC
- Year
- 2002 - 2005
- Sales region
- Japan
- Engine
- CR14DE
- drive
- 2WD
- transmission
- MCVT
- grade
- EX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A Bolt |
081686161A |
US $0.76 |
||
|
081686161A
|
081686161A
081686161A Bolt |
081686161A |
US $0.76 |
||
|
24010
|
24010
24010-3U510 Harness Assy-Main0210--01 ~ 0305--01; W.EX.MCVT |
24010-3U510 |
US $2,254 |
||
|
24010
|
24010
24010-3U910 Harness Assy-Main0305--01 ~ 0505--01; W.EX.MCVT |
24010-3U910 |
US $2,464 |
||
|
24010
|
24010
24229-89990 Clip-Wiring Harness0210--01 ~ 0305--01; W.EX |
24229-89990 |
US $0.86 |
||
|
24010E
|
24010E
24229-89990 Clip-Wiring Harness0210--01 ~ 0305--01; W.EX |
24229-89990 |
US $0.86 |
||
|
24019N
|
24019N
240183U000 Harness-Instrument, Sub0210--01 ~ 0305--01; W |
240183U000 |
US $90.58 |
||
|
24313M
|
24313M
24313-3U000 Label-Fuse Block0210--01 ~ 0305--01; W |
24313-3U000 |
US $12.96 |
||
|
24345
|
24345
2434579913
Cover-Connector
0210--01 ~ 0305--01; W |
2434579913 |
— | ||
| replacement | |||||
|
24345
|
24345
24345-7993A Cover-Connector0210--01 ~ 0305--01; W |
24345-7993A |
from US $14.42 |
||
|
25410
|
25410
24311-AX000 Block Assy-Fuse0210--01 ~ 0305--01; W |
24311-AX000 |
US $86.26 |
||
|
25410
|
25410
24321-79901 Puller-Fuse0210--01 ~ 0305--01; W |
24321-79901 |
US $3.46 |
||
|
25410U
|
25410U
24321-79901 Puller-Fuse0210--01 ~ 0305--01; W |
24321-79901 |
US $3.46 |
||
|
25419N
|
25419N
24317-AX000 Bracket-Fuse Block0210--01 ~ 0305--01; W |
24317-AX000 |
US $5.62 |
||
|
25419N
|
25419N
24317-AX001 Bracket-Fuse Block0210--01 ~ 0305--01; W |
24317-AX001 |
US $5.62 |
||
|
25419NA
|
25419NA
24317-AX001 Bracket-Fuse Block0210--01 ~ 0305--01; W |
24317-AX001 |
US $5.62 |
||
|
25464
|
25464
24319C9910 Fuse0210--01 ~ 0305--01; W; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0210--01 ~ 0305--01; W; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0210--01 ~ 0305--01; W; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0210--01 ~ 0305--01; W; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0210--01 ~ 0305--01; W; 20A |
24319C9920 |
from US $0.86 |
||
|
25464+A
|
25464+A
24319C9915 Fuse0210--01 ~ 0305--01; W; 15A |
24319C9915 |
from US $0.86 |
||
