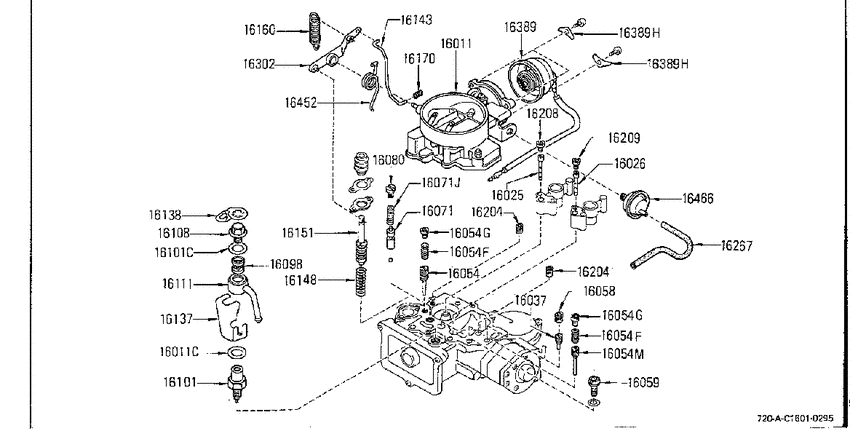

Carburetor (1979-09-01 ~ 1981-12-01; チョークチャンバー関係 構成部品; CV.J16) Diagram Nissan DATSUN
- Year
- 1979 - 1981
- Sales region
- Japan
- Engine
- J16S
- drive
- 2WD
- transmission
- R4
- grade
- DX
- body
- CV
- body type
- LB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16011
|
16011
16011-01W12 Chamber Assy-Choke7909--01 ~ 8112--01; CV.J16; NIKKI |
16011-01W12 |
US $420.55 |
||
|
16011
|
16011
16094-B8500 Packing-Gas Adjusting Screw7909--01 ~ 8112--01; CV.J16 |
16094-B8500 |
US $0.72 |
||
|
16011C
|
16011C
16094-B8500 Packing-Gas Adjusting Screw7909--01 ~ 8112--01; CV.J16 |
16094-B8500 |
US $0.72 |
||
|
16025
|
16025
16025-B8500 Tube-Emulsion, Primary7909--01 ~ 8112--01; CV.J16 |
16025-B8500 |
US $6.91 |
||
|
16026
|
16026
16026-B8500 Tube-Emulsion, Secondary7909--01 ~ 8112--01; CV.J16 |
16026-B8500 |
US $7.34 |
||
|
16037
|
16037
16037-B8400 Jet-Coasting7909--01 ~ 8112--01; CV.J16 |
16037-B8400 |
US $8.06 |
||
|
16054
|
16054
16055-B8400
Jet-Slow
7909--01 ~ 8112--01; CV.J16 |
16055-B8400 |
— | ||
|
16054
|
16054
16286-B8500 Plug7909--01 ~ 8112--01; CV.J16 |
16286-B8500 |
US $2.45 |
||
|
16054
|
16054
16055-B8501 Jet-Slow7909--01 ~ 8112--01; CV.J16 |
16055-B8501 |
US $10.22 |
||
|
16054G
|
16054G
16286-B8500 Plug7909--01 ~ 8112--01; CV.J16 |
16286-B8500 |
US $2.45 |
||
|
16054G
|
16054G
16286-B8500 Plug7909--01 ~ 8112--01; CV.J16 |
16286-B8500 |
US $2.45 |
||
|
16054M
|
16054M
16055-B8501 Jet-Slow7909--01 ~ 8112--01; CV.J16 |
16055-B8501 |
US $10.22 |
||
|
16058
|
16058
16058-B8500 Bleed-Air Coasting7909--01 ~ 8112--01; CV.J16 |
16058-B8500 |
US $8.64 |
||
|
16059
|
16059
16059-N7100 Valve-Power7909--01 ~ 8112--01; CV.J16 |
16059-N7100 |
US $37.01 |
||
|
16071
|
16071
16071-B8500 Weight-Injector7909--01 ~ 8112--01; CV.J16 |
16071-B8500 |
US $2.45 |
||
|
16071
|
16071
16069-B8500 Spring-Injector7909--01 ~ 8112--01; CV.J16 |
16069-B8500 |
US $1.58 |
||
|
16071J
|
16071J
16069-B8500 Spring-Injector7909--01 ~ 8112--01; CV.J16 |
16069-B8500 |
US $1.58 |
||
|
16080
|
16080
16080-B8501 Screw-Injector Set7909--01 ~ 8112--01; CV.J16 |
16080-B8501 |
US $3.31 |
||
|
16098
|
16098
16098-B8500 Filter7909--01 ~ 8112--01; CV.J16 |
16098-B8500 |
US $4.90 |
||
|
16101
|
16101
16101-W7000
Valve-Needle
7909--01 ~ 8112--01; CV.J16 |
16101-W7000 |
— | ||
|
16101
|
16101
16049-21605 Gasket-Plug7909--01 ~ 8112--01; CV.J16 |
16049-21605 |
US $0.97 |
||
|
16101C
|
16101C
16049-21605 Gasket-Plug7909--01 ~ 8112--01; CV.J16 |
16049-21605 |
US $0.97 |
||
|
16108
|
16108
16108-21605 Screw-Filter Set7909--01 ~ 8112--01; CV.J16 |
16108-21605 |
US $4.03 |
||
|
16111
|
16111
16111-B8400 Nipple-Fuel7909--01 ~ 8112--01; CV.J16 |
16111-B8400 |
US $32.26 |
||
|
16137
|
16137
16137-B8400
Plate-Stopping
7909--01 ~ 8112--01; CV.J16 |
16137-B8400 |
— | ||
|
16138
|
16138
16138-B8500 Lever-Lock7909--01 ~ 8112--01; CV.J16 |
16138-B8500 |
US $3.31 |
||
|
16143
|
16143
16143-N7100
Rod-Pump
7909--01 ~ 8112--01; CV.J16 |
16143-N7100 |
— | ||
|
16148
|
16148
16148-B8500 Spring-Return, Piston7909--01 ~ 8112--01; CV.J16 |
16148-B8500 |
US $4.32 |
||
|
16151
|
16151
16151-B8501 Piston7909--01 ~ 8112--01; CV.J16 |
16151-B8501 |
US $18.58 |
||
|
16160
|
16160
16160-B8500 Spring-Throttle Primary7909--01 ~ 8112--01; CV.J16 |
16160-B8500 |
US $7.78 |
||
|
16160
|
16160
16194-B8401 Spring-Throttle Assist7909--01 ~ 8112--01; CV.J16 |
16194-B8401 |
US $2.45 |
||
|
16160
|
16160
16160-B8501 Spring-Throttle Secondary7909--01 ~ 8112--01; CV.J16 |
16160-B8501 |
US $4.03 |
||
|
16170
|
16170
16170-N7100 Spring-Rod7909--01 ~ 8112--01; CV.J16 |
16170-N7100 |
US $2.45 |
||
|
16204
|
16204
16204-B8501 Bleed-Slow Air7909--01 ~ 8112--01; CV.J16 |
16204-B8501 |
US $13.10 |
||
|
16204
|
16204
16204-B8501 Bleed-Slow Air7909--01 ~ 8112--01; CV.J16 |
16204-B8501 |
US $13.10 |
||
|
16208
|
16208
16050-B8500
Bleed-Main Air
7909--01 ~ 8112--01; CV.J16 |
16050-B8500 |
— | ||
|
16209
|
16209
16050-B8501 Bleed-Main Air7909--01 ~ 8112--01; CV.J16 |
16050-B8501 |
US $7.34 |
||
|
16267
|
16267
16189-N7000 Pipe-Rubber7909--01 ~ 8112--01; CV.J16 |
16189-N7000 |
US $5.04 |
||
|
16302
|
16302
16302-U9600 Lever-Pump7909--01 ~ 8112--01; CV.J16 |
16302-U9600 |
US $9.94 |
||
|
16389
|
16389
16389-B8500 Cover-Thermo7909--01 ~ 8112--01; CV.J16 |
16389-B8500 |
US $184.32 |
||
|
16389
|
16389
16390-B8500 Plate-Stopping, Rear7909--01 ~ 8112--01; CV.J16 |
16390-B8500 |
US $7.20 |
||
|
16389H
|
16389H
16390-B8500 Plate-Stopping, Rear7909--01 ~ 8112--01; CV.J16 |
16390-B8500 |
US $7.20 |
||
|
16389H
|
16389H
16390-B8500 Plate-Stopping, Rear7909--01 ~ 8112--01; CV.J16 |
16390-B8500 |
US $7.20 |
||
|
16452
|
16452
16452-B8500 Spring-Pump Lever7909--01 ~ 8112--01; CV.J16 |
16452-B8500 |
US $3.31 |
||
|
16466
|
16466
16199-N7160 Piston Assy-Choke7909--01 ~ 8112--01; CV.J16 |
16199-N7160 |
US $51.26 |
