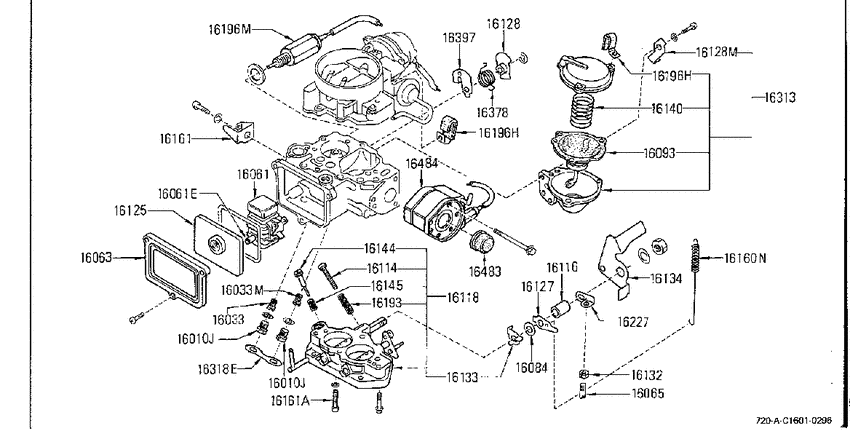

Carburetor (1979-09-01 ~ 1981-12-01; $スロットル チャンバー関係 構成部品; CV.J16) Diagram Nissan DATSUN
- Year
- 1979 - 1981
- Sales region
- Japan
- Engine
- J16S
- drive
- 2WD
- transmission
- R4
- grade
- DX
- body
- CV
- body type
- LB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16033
|
16033
16033-U9610 Jet-Main7909--01 ~ 8112--01; CV.J16 |
16033-U9610 |
US $3.31 |
||
|
16033
|
16033
16033-B8562 Jet-Main7909--01 ~ 8112--01; CV.J16 |
16033-B8562 |
US $3.02 |
||
|
16033M
|
16033M
16033-B8562 Jet-Main7909--01 ~ 8112--01; CV.J16 |
16033-B8562 |
US $3.02 |
||
|
16061
|
16061
16061-B8500 Float7909--01 ~ 8112--01; CV.J16 |
16061-B8500 |
US $12.53 |
||
|
16061
|
16061
16062-B8500 Collar-Float Pin7909--01 ~ 8112--01; CV.J16 |
16062-B8500 |
US $1.73 |
||
|
16061E
|
16061E
16062-B8500 Collar-Float Pin7909--01 ~ 8112--01; CV.J16 |
16062-B8500 |
US $1.73 |
||
|
16063
|
16063
16063-B8500 Cover-Gauge Lever7909--01 ~ 8112--01; CV.J16 |
16063-B8500 |
US $4.03 |
||
|
16065
|
16065
16065-B8500 Screw-Idle Fast7909--01 ~ 8112--01; CV.J16 |
16065-B8500 |
US $3.31 |
||
|
16084
|
16084
16084-B8401 Washer7909--01 ~ 8112--01; CV.J16 |
16084-B8401 |
US $1.73 |
||
|
16093
|
16093
16093-B8500 Diaphragm7909--01 ~ 8112--01; CV.J16 |
16093-B8500 |
US $15.26 |
||
|
16114
|
16114
16114-B8500 Screw-Adjust, Throttle7909--01 ~ 8112--01; CV.J16 |
16114-B8500 |
US $2.45 |
||
|
16116
|
16116
16116-B8401 Sleeve-A7909--01 ~ 8112--01; CV.J16 |
16116-B8401 |
US $4.03 |
||
|
16118
|
16118
16118-01W12
Throttle Body
7909--01 ~ 8112--01; CV.J16 |
16118-01W12 |
— | ||
|
16125
|
16125
16125-B8501 Gauge-Level7909--01 ~ 8112--01; CV.J16 |
16125-B8501 |
US $22.61 |
||
|
16127
|
16127
16127-B8500
Plate-Return
7909--01 ~ 8112--01; CV.J16 |
16127-B8500 |
— | ||
|
16128
|
16128
16415-01W12
Cam-Fast Idle
7909--01 ~ 8112--01; CV.J16 |
16415-01W12 |
— | ||
|
16128
|
16128
16131-B8506
Stopper-Cam
7909--01 ~ 8112--01; CV.J16 |
16131-B8506 |
— | ||
|
16128M
|
16128M
16131-B8506
Stopper-Cam
7909--01 ~ 8112--01; CV.J16 |
16131-B8506 |
— | ||
|
16132
|
16132
16132-B8500 Nut7909--01 ~ 8112--01; CV.J16 |
16132-B8500 |
US $3.31 |
||
|
16133
|
16133
16085-B8401 Lever-Throttle Adjust, Front7909--01 ~ 8112--01; CV.J16 |
16085-B8401 |
US $5.04 |
||
|
16134
|
16134
16134-B8401
Lever-Throttle
7909--01 ~ 8112--01; CV.J16 |
16134-B8401 |
— | ||
|
16140
|
16140
16140-B8500 Spring-Diaphragm7909--01 ~ 8112--01; CV.J16 |
16140-B8500 |
US $2.45 |
||
|
16144
|
16144
16144-B8500 Screw-Adjust, Idle7909--01 ~ 8112--01; CV.J16 |
16144-B8500 |
US $7.78 |
||
|
16145
|
16145
16145-B8500 Spring-Screw, Adjust7909--01 ~ 8112--01; CV.J16 |
16145-B8500 |
US $1.58 |
||
|
16160N
|
16160N
16160-B8501 Spring-Throttle Secondary7909--01 ~ 8112--01; CV.J16 |
16160-B8501 |
US $4.03 |
||
|
16161
|
16161
16161-B8500 Hanger-Spring7909--01 ~ 8112--01; CV.J16 |
16161-B8500 |
US $5.33 |
||
|
16161
|
16161
16174-B8502 Screw7909--01 ~ 8112--01; CV.J16 |
16174-B8502 |
US $3.46 |
||
|
16161A
|
16161A
16174-B8502 Screw7909--01 ~ 8112--01; CV.J16 |
16174-B8502 |
US $3.46 |
||
|
16193
|
16193
16193-B8500 Spring-Screw Adjust7909--01 ~ 8112--01; CV.J16 |
16193-B8500 |
US $1.87 |
||
|
16196H
|
16196H
16143-W6400 Holder7909--01 ~ 8112--01; CV.J16 |
16143-W6400 |
US $4.03 |
||
|
16196H
|
16196H
16143-W6400 Holder7909--01 ~ 8112--01; CV.J16 |
16143-W6400 |
US $4.03 |
||
|
16196M
|
16196M
16196-B8500 Iacv-Ficd Solenoid Valve7909--01 ~ 8112--01; CV.J16 |
16196-B8500 |
US $62.06 |
||
|
16227
|
16227
16227-B8500
Lever-Adjust, Fast
7909--01 ~ 8112--01; CV.J16 |
16227-B8500 |
— | ||
|
16313
|
16313
16313-01W12 Diaphragm Assy-Chamber7909--01 ~ 8112--01; CV.J16 |
16313-01W12 |
US $119.81 |
||
|
16313
|
16313
16313-B8500 Diaphragm Assy-Chamber7909--01 ~ 8112--01; CV.J16 |
16313-B8500 |
US $88.70 |
||
|
16318E
|
16318E
16273-N7100 Plate-Adjust7909--01 ~ 8112--01; CV.J16 |
16273-N7100 |
US $3.31 |
||
|
16378
|
16378
16378-B8500 Spring-Cam7909--01 ~ 8006--01; CV.J16 |
16378-B8500 |
US $4.18 |
||
|
16378
|
16378
16378-E4300 Spring-Cam8007--01 ~ 8112--01; CV.J16 |
16378-E4300 |
US $3.46 |
||
|
16397
|
16397
16397-B8500 Lever-Counter7909--01 ~ 8112--01; CV.J16 |
16397-B8500 |
US $7.49 |
||
|
16483
|
16483
16483-P5320 Cap-Rubber7909--01 ~ 8112--01; CV.J16 |
16483-P5320 |
US $4.90 |
||
|
16484
|
16484
16484-B8400 Barometic Pressure Sensor-B.c.d.d7909--01 ~ 8112--01; CV.J16 |
16484-B8400 |
US $246.24 |
