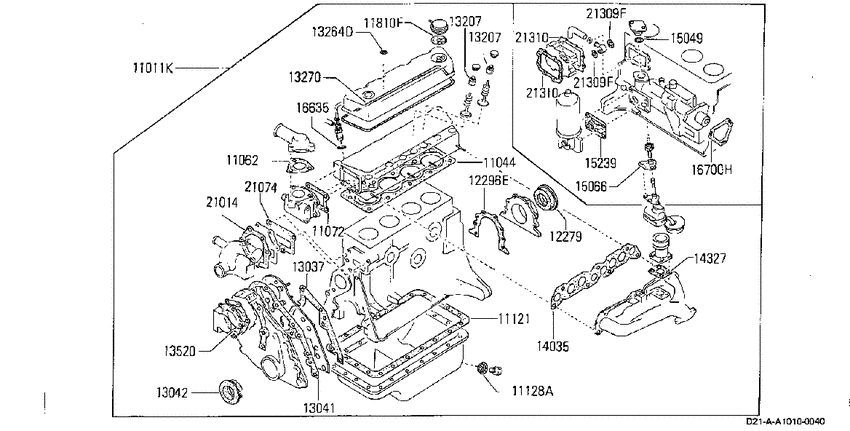

Engine gasket kit (1985-08-01 ~ 1987-08-01; SD23) Diagram Nissan DATSUN
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- SD23
- drive
- 4WD
- transmission
- MT
- grade
- DX
- body
- WC/LB
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011K
|
11011K
10101-09W26
Gasket Kit-Engine Repair
8508--01 ~ 8708--01; SD23 |
10101-09W26 |
— | ||
|
11044
|
11044
11044-09W00 Gasket-Cylinder Head8508--01 ~ 8610--01; SD23 |
11044-09W00 |
US $118.51 |
||
| replacement | |||||
|
11044
|
11044
11044-09W01 Gasket-Cylinder Head8508--01 ~ 8610--01; SD23 |
11044-09W01 |
US $118.51 |
||
|
11044
|
11044
11044-09W01 Gasket-Cylinder Head8610--01 ~ 8708--01; SD23 |
11044-09W01 |
US $118.51 |
||
|
11044
|
11044
15296-37501
Ring-Rubber, Head Gasket
8508--01 ~ 8708--01; SD23 |
15296-37501 |
— | ||
|
11062
|
11062
11062-L6000
Gasket-Water Outlet
8508--01 ~ 8708--01; SD23 |
11062-L6000 |
— | ||
| replacement | |||||
|
11062
|
11062
1106210G00 Gasket-Water Outlet8508--01 ~ 8708--01; SD23 |
1106210G00 |
US $11.08 |
||
|
11072
|
11072
11045-76201
Gasket-Thermostat Housing
8508--01 ~ 8708--01; SD23 |
11045-76201 |
— | ||
| replacements | |||||
|
11072
|
11072
11045-Z7000
Gasket
8508--01 ~ 8708--01; SD23 |
11045-Z7000 |
— | ||
|
11072
|
11072
11045NA000 ｶﾞｽｹﾂﾄ8508--01 ~ 8708--01; SD23 |
11045NA000 |
US $8.32 |
||
|
11121
|
11121
11121-V1700 Gasket-Oil Pan8508--01 ~ 8708--01; SD23 |
11121-V1700 |
US $60.05 |
||
| replacement | |||||
|
11121
|
11121
11121-10G00
Gasket-Oil Pan
8508--01 ~ 8708--01; SD23 |
11121-10G00 |
— | ||
|
11128A
|
11128A
1102661000 Washer-Drain Plug8508--01 ~ 8708--01; SD23 |
1102661000 |
from US $0.85 |
||
|
11810F
|
11810F
11033-09W00 Gasket-Air Control Valve8508--01 ~ 8708--01; SD23 |
11033-09W00 |
US $3.46 |
||
|
12279
|
12279
12279-T7201 Seal-Oil, Crankshaft Rear8508--01 ~ 8608--01; SD23; ｾﾝﾀｸ ｼﾖｳ |
12279-T7201 |
US $40.03 |
||
|
12279
|
12279
12279-T7202 Seal-Oil, Crankshaft Rear8608--01 ~ 8708--01; SD23 |
12279-T7202 |
US $40.03 |
||
|
12296E
|
12296E
12297-V1700 Gasket-Retainer8508--01 ~ 8708--01; SD23 |
12297-V1700 |
US $9.65 |
||
| replacement | |||||
|
12296E
|
12296E
12298-10G00
Gasket-retainer
8508--01 ~ 8708--01; SD23 |
12298-10G00 |
— | ||
|
13037
|
13037
13037-90002 Gasket-Plate8508--01 ~ 8708--01; SD23 |
13037-90002 |
US $5.18 |
||
|
13041
|
13041
13041-V6600 Gasket-Case, Front Cover8508--01 ~ 8708--01; SD23.4WD |
13041-V6600 |
US $12.38 |
||
|
13042
|
13042
13043T7200 Seal-Oil, Crankshaft Front8508--01 ~ 8708--01; SD23 |
13043T7200 |
from US $12.82 |
||
|
13207
|
13207
13207V1700
Seal-Oil, Valve
8508--01 ~ 8708--01; SD23 |
13207V1700 |
— | ||
| replacement | |||||
|
13207
|
13207
13207-V170A Seal-Oil, Valve8508--01 ~ 8708--01; SD23 |
13207-V170A |
from US $3.43 |
||
|
13207
|
13207
13207V1700
Seal-Oil, Valve
8508--01 ~ 8708--01; SD23 |
13207V1700 |
— | ||
| replacement | |||||
|
13207
|
13207
13207-V170A Seal-Oil, Valve8508--01 ~ 8708--01; SD23 |
13207-V170A |
from US $3.43 |
||
|
13264D
|
13264D
13268-C8600 Washer8508--01 ~ 8708--01; SD23 |
13268-C8600 |
US $6.48 |
||
| replacement | |||||
|
13264D
|
13264D
13268-C8700 Washer8508--01 ~ 8708--01; SD23 |
13268-C8700 |
US $6.48 |
||
|
13270
|
13270
13270-R8800 Gasket-Rocker Cover8508--01 ~ 8701--01; SD23 |
13270-R8800 |
US $23.76 |
||
| replacement | |||||
|
13270
|
13270
13270-R8810 Gasket-Rocker Cover8508--01 ~ 8701--01; SD23 |
13270-R8810 |
US $23.76 |
||
|
13270
|
13270
13270-R8810 Gasket-Rocker Cover8701--01 ~ 8708--01; SD23 |
13270-R8810 |
US $23.76 |
||
|
13520
|
13520
13044-Y5201 Gasket-Front Cover, Rh8508--01 ~ 8708--01; SD23 |
13044-Y5201 |
US $9.07 |
||
| replacement | |||||
|
13520
|
13520
13037-10G00
Gasket-cover
8508--01 ~ 8708--01; SD23 |
13037-10G00 |
— | ||
|
14035
|
14035
14035-10G00 Gasket-Manifold8508--01 ~ 8708--01; SD23 |
14035-10G00 |
US $24.05 |
||
|
14327
|
14327
14327-09W00 Gasket-Venturi8508--01 ~ 8708--01; SD23 |
14327-09W00 |
US $2.45 |
||
| replacement | |||||
|
14327
|
14327
1432731N00 Gasket-Venturi8508--01 ~ 8708--01; SD23 |
1432731N00 |
US $12.05 |
||
|
15049
|
15049
22179-37500 Gasket-Spindle8508--01 ~ 8708--01; SD23 |
22179-37500 |
US $4.46 |
||
|
15066
|
15066
15066-V6600 Gasket-Oil Pump To Cylinder Block8508--01 ~ 8708--01; SD23.4WD |
15066-V6600 |
US $2.45 |
||
|
15239
|
15239
15239-V1700 Gasket-Oil Filter To Cylinder Block8508--01 ~ 8708--01; SD23 |
15239-V1700 |
US $4.18 |
||
| replacement | |||||
|
15239
|
15239
1523910G00
ｶﾞｽｹﾂﾄ
8508--01 ~ 8708--01; SD23 |
1523910G00 |
— | ||
|
16635
|
16635
16635-J5570 Gasket8508--01 ~ 8708--01; SD23 |
16635-J5570 |
from US $0.81 |
||
|
16635
|
16635
16602-V1701 Gasket-Nozzle8508--01 ~ 8708--01; SD23 |
16602-V1701 |
US $6.94 |
||
|
16635
|
16635
16626-09W00 Gasket-Nozzle8508--01 ~ 8708--01; SD23 |
16626-09W00 |
US $7.32 |
||
|
16700H
|
16700H
16701R8100 Gasket-Injection Pump8508--01 ~ 8708--01; SD23 |
16701R8100 |
from US $1.57 |
||
|
21074
|
21074
21074-37502 Gasket-Water Pump, Block Side8508--01 ~ 8708--01; SD23 |
21074-37502 |
US $2.55 |
||
|
21309F
|
21309F
21331-76201
Gasket
8508--01 ~ 8708--01; SD23 |
21331-76201 |
— | ||
| replacement | |||||
|
21309F
|
21309F
16794-10G02 Gasket8508--01 ~ 8708--01; SD23 |
16794-10G02 |
US $4.27 |
||
|
21309F
|
21309F
21331-76201
Gasket
8508--01 ~ 8708--01; SD23 |
21331-76201 |
— | ||
| replacement | |||||
|
21309F
|
21309F
16794-10G02 Gasket8508--01 ~ 8708--01; SD23 |
16794-10G02 |
US $4.27 |
||
|
21310
|
21310
21307-76200 Gasket8508--01 ~ 8708--01; SD23 |
21307-76200 |
US $7.49 |
||
| replacement | |||||
|
21310
|
21310
2130410G00
ｶﾞｽｹﾂﾄ
8508--01 ~ 8708--01; SD23 |
2130410G00 |
— | ||
|
21310
|
21310
21307-76200 Gasket8508--01 ~ 8708--01; SD23 |
21307-76200 |
US $7.49 |
||
| replacement | |||||
|
21310
|
21310
2130410G00
ｶﾞｽｹﾂﾄ
8508--01 ~ 8708--01; SD23 |
2130410G00 |
— | ||
