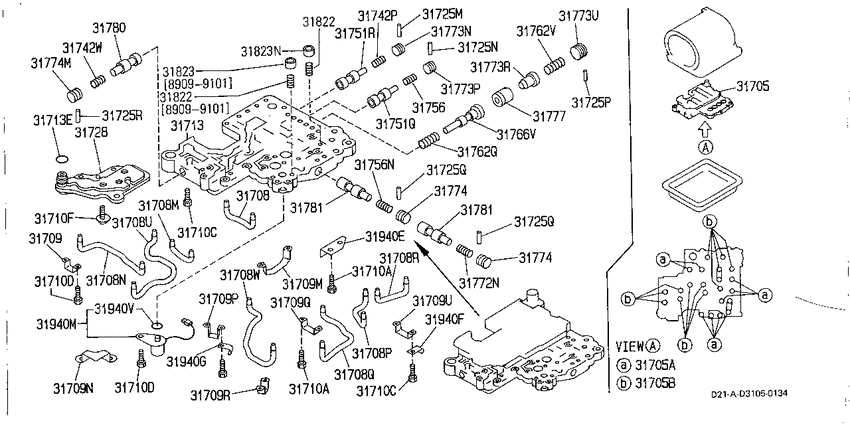

Control valve (atm) (1989-09-01 ~ ; (ロア RL4R01A; NA20S.AT) Diagram Nissan DATSUN
- Year
- 1989 - 1992
- Sales region
- Japan
- Engine
- NA20S
- drive
- 2WD
- transmission
- AT
- grade
- GL
- body
- T/SB
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31705
|
31705
31705-48X07 Valve Assy-Control8909--01 ~ 9208--01; NA20S.AT |
31705-48X07 |
US $961.46 |
||
|
31705
|
31705
31705-48X21 Valve Assy-Control9407--01 ~ 9508--01; NA20S.AT |
31705-48X21 |
US $961.46 |
||
|
31705
|
31705
31705-48X76 Valve Assy-Control9508--01 ~ ; NA20S.AT |
31705-48X76 |
US $961.46 |
||
|
31705
|
31705
0112102941 BOLT8909--01 ~ 9208--01; NA20S.AT |
0112102941 |
US $1.93 |
||
|
31705
|
31705
01121-02911 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02911 |
US $1.93 |
||
|
31705A
|
31705A
0112102941 BOLT8909--01 ~ 9208--01; NA20S.AT |
0112102941 |
US $1.93 |
||
|
31705B
|
31705B
01121-02911 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02911 |
US $1.93 |
||
|
31708
|
31708
31708-48X00 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X00 |
US $24.34 |
||
|
31708
|
31708
31708-48X01 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X01 |
US $8.93 |
||
|
31708
|
31708
31708-48X02 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X02 |
US $8.93 |
||
|
31708
|
31708
31708-48X03 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X03 |
US $8.93 |
||
|
31708
|
31708
31708-48X04 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X04 |
US $8.93 |
||
|
31708
|
31708
31708-48X05 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X05 |
US $8.93 |
||
|
31708
|
31708
31708-48X06 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X06 |
US $8.93 |
||
|
31708
|
31708
31708-41X14 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-41X14 |
US $8.93 |
||
|
31708M
|
31708M
31708-48X01 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X01 |
US $8.93 |
||
|
31708N
|
31708N
31708-48X02 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X02 |
US $8.93 |
||
|
31708P
|
31708P
31708-48X03 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X03 |
US $8.93 |
||
|
31708Q
|
31708Q
31708-48X04 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X04 |
US $8.93 |
||
|
31708R
|
31708R
31708-48X05 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X05 |
US $8.93 |
||
|
31708U
|
31708U
31708-48X06 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-48X06 |
US $8.93 |
||
|
31708W
|
31708W
31708-41X14 Tube-Connector, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31708-41X14 |
US $8.93 |
||
|
31709
|
31709
31709-48X00 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X00 |
US $1.73 |
||
|
31709
|
31709
31709-48X01 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X01 |
US $4.03 |
||
|
31709
|
31709
31709-48X06 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X06 |
US $4.03 |
||
|
31709
|
31709
31709-48X02 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X02 |
US $4.03 |
||
|
31709
|
31709
31709-48X03 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X03 |
US $4.03 |
||
|
31709
|
31709
31709-48X04 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X04 |
US $4.03 |
||
|
31709
|
31709
31709-48X05 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X05 |
US $2.45 |
||
|
31709M
|
31709M
31709-48X01 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X01 |
US $4.03 |
||
|
31709N
|
31709N
31709-48X06 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X06 |
US $4.03 |
||
|
31709P
|
31709P
31709-48X02 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X02 |
US $4.03 |
||
|
31709Q
|
31709Q
31709-48X03 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X03 |
US $4.03 |
||
|
31709R
|
31709R
31709-48X04 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X04 |
US $4.03 |
||
|
31709U
|
31709U
31709-48X05 Bracket-Control Valve Body8909--01 ~ 9208--01; NA20S.AT |
31709-48X05 |
US $2.45 |
||
|
31710A
|
31710A
0112102941 BOLT8909--01 ~ 9208--01; NA20S.AT |
0112102941 |
US $1.93 |
||
|
31710A
|
31710A
0112102941 BOLT8909--01 ~ 9208--01; NA20S.AT |
0112102941 |
US $1.93 |
||
|
31710C
|
31710C
01121-02911 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02911 |
US $1.93 |
||
|
31710C
|
31710C
01121-02911 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02911 |
US $1.93 |
||
|
31710D
|
31710D
01121-02931 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02931 |
US $1.73 |
||
|
31710D
|
31710D
01121-02931 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-02931 |
US $1.73 |
||
|
31710F
|
31710F
01121-03741 BOLT8909--01 ~ 9208--01; NA20S.AT |
01121-03741 |
US $2.45 |
||
|
31713
|
31713
31713-48X00 Body-Lower, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31713-48X00 |
US $128.88 |
||
|
31713
|
31713
3152641X07 Seal-O Ring8909--01 ~ 9208--01; NA20S.AT |
3152641X07 |
from US $1.67 |
||
|
31713E
|
31713E
3152641X07 Seal-O Ring8909--01 ~ 9208--01; NA20S.AT |
3152641X07 |
from US $1.67 |
||
|
31725M
|
31725M
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9208--01; NA20S.AT; |
31725-01X00 |
from US $1.40 |
||
|
31725N
|
31725N
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9208--01; NA20S.AT; |
31725-01X00 |
from US $1.40 |
||
|
31725P
|
31725P
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9009--01; NA20S.AT; |
31725-01X00 |
from US $1.40 |
||
|
31725Q
|
31725Q
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31725-01X00 |
from US $1.40 |
||
|
31725Q
|
31725Q
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31725-01X00 |
from US $1.40 |
||
|
31725R
|
31725R
31725-01X00 Pin-Parallel, Control Valve8909--01 ~ 9208--01; NA20S.AT |
31725-01X00 |
from US $1.40 |
||
|
31728
|
31728
31728-48X00 Strainer Assy-Oil8909--01 ~ 9208--01; NA20S.AT |
31728-48X00 |
US $29.23 |
||
|
31728
|
31728
3172848X01 Strainer Assy-Oil9508--01 ~ ; NA20S.AT |
3172848X01 |
from US $28.14 |
||
|
31742P
|
31742P
31756-48X01 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31756-48X01 |
US $0.86 |
||
|
31742W
|
31742W
31742-41X23 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT |
31742-41X23 |
US $0.86 |
||
|
31751Q
|
31751Q
31772-48X00 Valve-Spool8909--01 ~ 9208--01; NA20S.AT |
31772-48X00 |
US $12.24 |
||
|
31751R
|
31751R
31772-27X00 Valve-Spool8909--01 ~ 9208--01; NA20S.AT; |
31772-27X00 |
US $11.09 |
||
|
31751R
|
31751R
31772-41X12 Valve-Spool9508--01 ~ ; NA20S.AT |
31772-41X12 |
US $12.24 |
||
|
31756
|
31756
31756-48X04 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31756-48X04 |
US $0.86 |
||
|
31756
|
31756
31756-41X00 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31756-41X00 |
US $0.82 |
||
|
31756
|
31756
31756-41X00 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31756-41X00 |
US $0.82 |
||
|
31756
|
31756
31756-48X03 Spring-Spool Valve9407--01 ~ ; NA20S.AT; |
31756-48X03 |
US $0.86 |
||
|
31756
|
31756
31756-48X05 Spring-4Th Speed Cut8909--01 ~ 9208--01; NA20S.AT |
31756-48X05 |
US $0.86 |
||
|
31756
|
31756
31762-48X05 Spring-Valve, Shift8909--01 ~ 9208--01; NA20S.AT; |
31762-48X05 |
US $0.86 |
||
|
31756
|
31756
31762-48X09 Spring-Valve, Shift9508--01 ~ ; NA20S.AT |
31762-48X09 |
US $0.86 |
||
|
31756N
|
31756N
31756-41X00 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31756-41X00 |
US $0.82 |
||
|
31762Q
|
31762Q
31742-48X04 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31742-48X04 |
US $2.45 |
||
|
31762V
|
31762V
31742-48X05 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31742-48X05 |
US $0.86 |
||
|
31766V
|
31766V
31772-48X01 Valve-Overrun Clutch Reducing8909--01 ~ 9208--01; NA20S.AT; |
31772-48X01 |
US $10.08 |
||
|
31772N
|
31772N
31742-48X06 Spring-Timing9407--01 ~ ; NA20S.AT; |
31742-48X06 |
US $0.86 |
||
|
31772N
|
31772N
31742-48X08 Spring-Spool Valve8909--01 ~ 9208--01; NA20S.AT; |
31742-48X08 |
US $0.86 |
||
|
31773N
|
31773N
31845-21X00 Plug8909--01 ~ 9208--01; NA20S.AT; |
31845-21X00 |
US $4.03 |
||
|
31773P
|
31773P
31845-21X00 Plug8909--01 ~ 9208--01; NA20S.AT; |
31845-21X00 |
US $4.03 |
||
|
31773R
|
31773R
31773-48X00 Plug8909--01 ~ 9208--01; NA20S.AT; |
31773-48X00 |
US $5.04 |
||
|
31773U
|
31773U
31763-21X01 Plug8909--01 ~ 9208--01; NA20S.AT; |
31763-21X01 |
US $5.04 |
||
|
31773U
|
31773U
31845-41X06 Plug9508--01 ~ ; NA20S.AT |
31845-41X06 |
US $5.27 |
||
|
31774
|
31774
31845-21X00 Plug8909--01 ~ 9208--01; NA20S.AT; |
31845-21X00 |
US $4.03 |
||
|
31774
|
31774
31774-21X00 Plug8909--01 ~ 9208--01; NA20S.AT |
31774-21X00 |
US $5.04 |
||
|
31774
|
31774
31845-21X00 Plug8909--01 ~ 9208--01; NA20S.AT; |
31845-21X00 |
US $4.03 |
||
|
31774
|
31774
31774-21X00 Plug8909--01 ~ 9208--01; NA20S.AT |
31774-21X00 |
US $5.04 |
||
|
31774M
|
31774M
31774-21X00 Plug8909--01 ~ 9208--01; NA20S.AT |
31774-21X00 |
US $5.04 |
||
|
31777
|
31777
31777-48X00 Sleeve-Valve8909--01 ~ 9208--01; NA20S.AT; |
31777-48X00 |
US $5.18 |
||
|
31780
|
31780
31780-41X01
Valve-Relief
8909--01 ~ 9208--01; NA20S.AT |
31780-41X01 |
— | ||
|
31781
|
31781
31772-21X00 Valve-Spool8909--01 ~ 9208--01; NA20S.AT; |
31772-21X00 |
US $6.94 |
||
|
31781
|
31781
31791-48X00 Valve-3Rd & 4Th Shift8909--01 ~ 9208--01; NA20S.AT |
31791-48X00 |
US $10.80 |
||
|
31781
|
31781
31772-21X00 Valve-Spool8909--01 ~ 9208--01; NA20S.AT; |
31772-21X00 |
US $6.94 |
||
|
31781
|
31781
31791-48X00 Valve-3Rd & 4Th Shift8909--01 ~ 9208--01; NA20S.AT |
31791-48X00 |
US $10.80 |
||
|
31822
|
31822
31822-X0101 Spring-Orifice Check8909--01 ~ 9208--01; NA20S.AT |
31822-X0101 |
US $1.73 |
||
|
31822
|
31822
31822-X0101 Spring-Orifice Check8909--01 ~ 9208--01; NA20S.AT |
31822-X0101 |
US $1.73 |
||
|
31823
|
31823
3182341X01 Valve-Orifice Check8909--01 ~ 9101--01; NA20S.AT; D=1.1 |
3182341X01 |
US $1.73 |
||
|
31823
|
31823
31823-X8610 Valve-Orifice Check8909--01 ~ 9208--01; NA20S.AT; D=2.0 |
31823-X8610 |
US $1.73 |
||
|
31823N
|
31823N
31823-X8610 Valve-Orifice Check8909--01 ~ 9208--01; NA20S.AT; D=2.0 |
31823-X8610 |
US $1.73 |
||
|
31940E
|
31940E
31718-48X00 Clip-Harness8909--01 ~ 9208--01; NA20S.AT |
31718-48X00 |
US $9.22 |
||
|
31940F
|
31940F
31718-48X01 Clip-Harness8909--01 ~ 9208--01; NA20S.AT |
31718-48X01 |
US $7.20 |
||
|
31940G
|
31940G
31718-48X02 Clip-Harness8909--01 ~ 9208--01; NA20S.AT |
31718-48X02 |
US $7.20 |
||
|
31940M
|
31940M
31940-48X00 Solenoid Assy-Control8909--01 ~ 9208--01; NA20S.AT |
31940-48X00 |
US $94.03 |
||
|
31940V
|
31940V
3152641X09 Seal-O Ring8909--01 ~ 9208--01; NA20S.AT |
3152641X09 |
US $2.36 |
