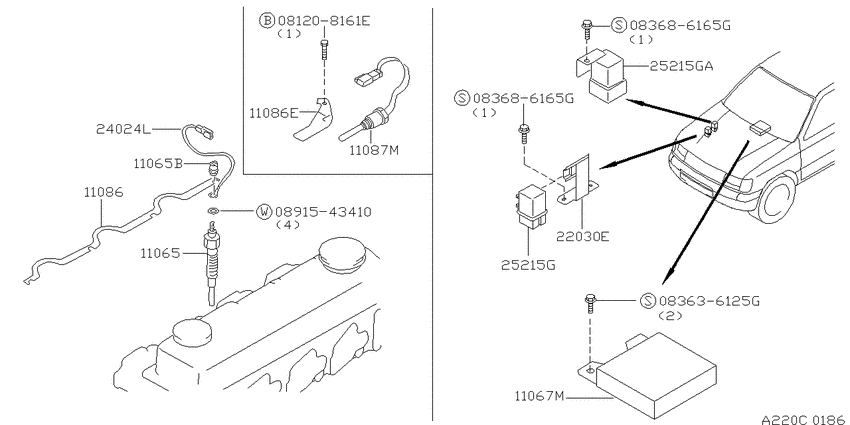

Ignition System (1997-01-01 ~ 1999-06-01; TD27) Diagram Nissan DATSUN
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- TD27
- drive
- 2WD
- transmission
- MT.R5
- grade
- DX
- body
- SC
- tire
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083686165G
|
083686165G
083686165G SCRHEX HDPP W |
083686165G |
from US $0.63 |
||
|
083686165G
|
083686165G
083686165G SCRHEX HDPP W |
083686165G |
from US $0.63 |
||
|
0891543410
|
0891543410
08915-43410
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43410 |
— | ||
|
11065
|
11065
110650W801
Plug-Glow
9906--01 ~ ; TD27; NGK Y-707RS 12V[B512] |
110650W801 |
— | ||
| replacement | |||||
|
11065
|
11065
11065-0W80A Glow Plug9906--01 ~ ; TD27; NGK Y-707RS 12V[B512] |
11065-0W80A |
US $115.32 |
||
|
11065
|
11065
1106563G00 Plug-Glow9701--01 ~ 9906--01; TD27; [B512] |
1106563G00 |
from US $53.50 |
||
|
11065
|
11065
11065-65N01 Plug-Glow9906--01 ~ ; TD27; ｷｮｳｾﾗ |
11065-65N01 |
US $72 |
||
|
11065
|
11065
110660W800 Nut9701--01 ~ 9906--01; TD27 |
110660W800 |
US $2.88 |
||
|
11065B
|
11065B
110660W800 Nut9701--01 ~ 9906--01; TD27 |
110660W800 |
US $2.88 |
||
|
11067M
|
11067M
11069-2S510 Timer Assy-Glow Plug9701--01 ~ 9906--01; TD27 |
11069-2S510 |
US $610.30 |
||
|
11067M
|
11067M
11069-2S601 Timer Assy-Glow Plug9906--01 ~ ; TD27 |
11069-2S601 |
US $732.07 |
||
|
11086
|
11086
1108643G00 Cable Assy9701--01 ~ 9906--01; TD27 |
1108643G00 |
US $15.55 |
||
|
11086
|
11086
11086-43G01 Cable Assy0102--01 ~ ; TD27 |
11086-43G01 |
US $14.26 |
||
|
11086
|
11086
24210-80G01 Clamp9701--01 ~ 9906--01; TD27 |
24210-80G01 |
US $4.18 |
||
|
11086E
|
11086E
24210-80G01 Clamp9701--01 ~ 9906--01; TD27 |
24210-80G01 |
US $4.18 |
||
|
11087M
|
11087M
2269810G01 Resistor-Q.g.s9701--01 ~ 9906--01; TD27 |
2269810G01 |
US $257.81 |
||
|
22030E
|
22030E
25238-2S500 Bracket-Relay9701--01 ~ 9906--01; TD27 |
25238-2S500 |
US $8.35 |
||
|
24024L
|
24024L
2402443G05 Harness-Glow9701--01 ~ 9906--01; TD27 |
2402443G05 |
US $22.75 |
||
|
25215G
|
25215G
25230-0E401 Relay Assy-Glow Plug9701--01 ~ 9712--01; TD27 |
25230-0E401 |
US $93.89 |
||
|
25215G
|
25215G
25230-2S605 Relay Assy-Glow Plug9712--01 ~ 9906--01; TD27 |
25230-2S605 |
US $59.33 |
||
|
25215GA
|
25215GA
25230-2S605 Relay Assy-Glow Plug9712--01 ~ 9906--01; TD27 |
25230-2S605 |
US $59.33 |
||
